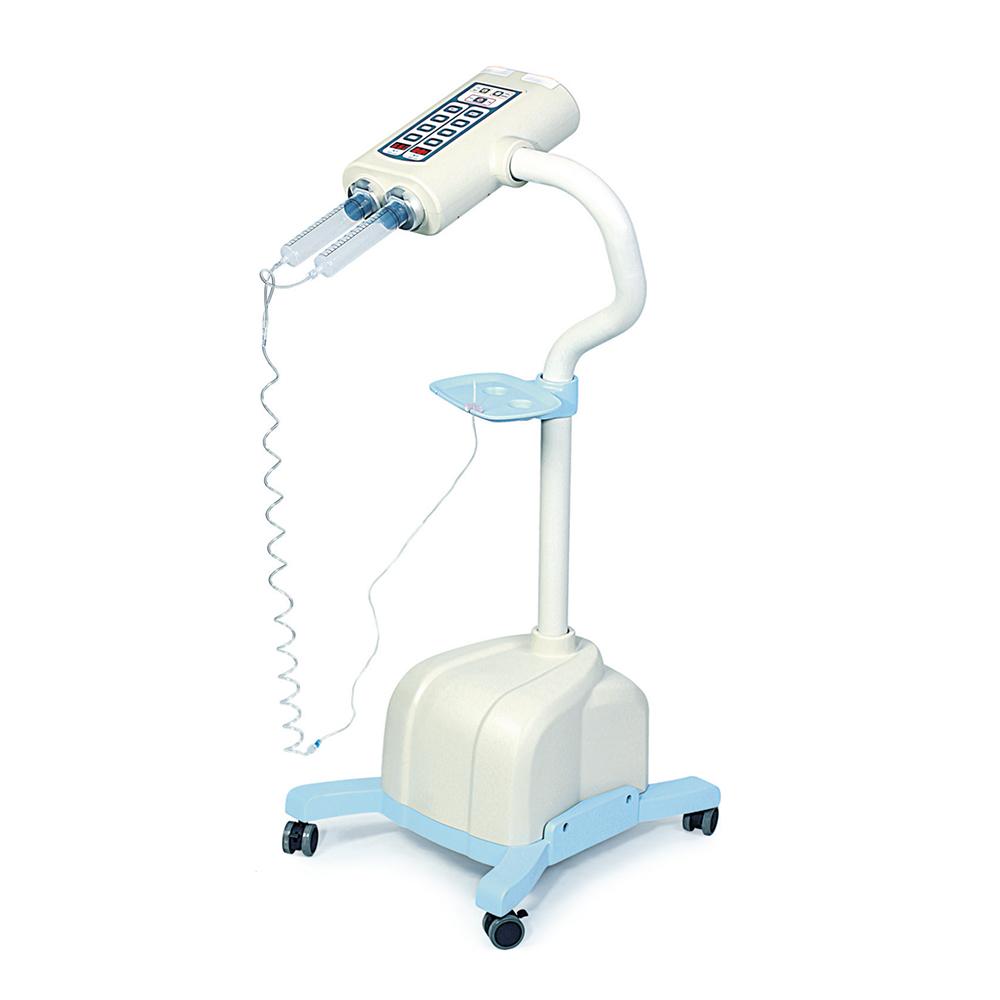

Zenith-C22 CT Injector Double Head

The Seacrown Zenith-C22 is a dual-head / dual-syringe CT contrast media injector designed for precise delivery of contrast medium and saline during contrast-enhanced CT examinations. Unlike the single-head Zenith-C20, the Zenith-C22 uses two 200 mL syringes, allowing contrast and saline to be independently controlled. This supports saline flushing, contrast dilution and advanced multiphase protocols used in CTA, Cardiac CT and other contrast-enhanced CT studies. The system features a 12-inch touchscreen console, mobile injector pedestal, programmable flow and pressure, real-time pressure monitoring, autofill and up to 8 injection phases. Key Features Dual-head / dual-syringe CT injector 2 × 200 mL syringe capacity Contrast medium and saline injection Saline flush capability Dual-flow contrast/saline functionality 0.1–10 mL/sec programmable flow rate Flow adjustment in 0.1 mL/sec increments 50–350 psi programmable pressure limit Up to 8 programmable injection phases 12-inch touchscreen console Real-time pressure monitoring Real-time pressure curve display Programmable autofill Injection/scan delay Test injection function Air-expelling safety lock KVO functionality Emergency stop function Mobile pedestal with swivelling injector arm Optional syringe heat maintainer Optional hand switch Storage for up to 1,000 protocols according to published C22 specifications
