Zenith-C20 CT Injector Single Head

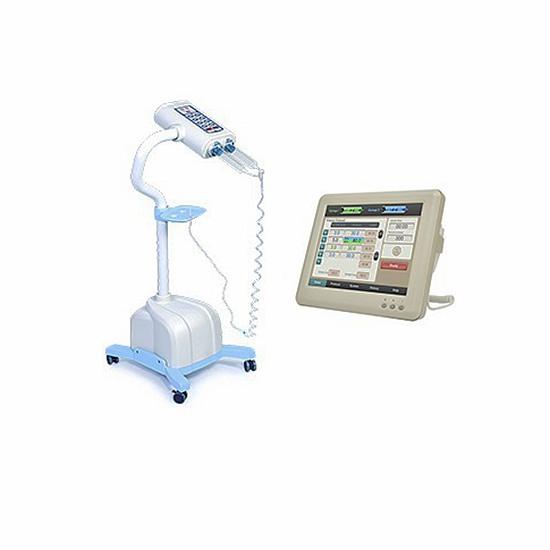

The Seacrown Zenith-C20 is a single-syringe CT contrast media injector designed for controlled delivery of contrast media during contrast-enhanced CT (CECT) and CT angiography (CTA) procedures. Seacrown documentation identifies the Zenith-C20 as the 200 mL single-syringe model in its Zenith CT injector range. The system provides programmable injection flow, volume, pressure limits, scan delay and multi-phase injection protocols. It uses a touchscreen console and a mobile injector arm/pedestal, allowing clinicians to program and control contrast injection while monitoring pressure and operating status in real time. Key Features Single-head / single-syringe CT injector 200 mL syringe capacity Designed for CECT and CTA procedures 0.1–10 mL/sec programmable flow rate Flow adjustment in 0.1 mL/sec increments Programmable pressure limit from 50–350 psi Default pressure limit: 300 psi 1–8 phase injection protocols Real-time pressure monitoring and pressure curve display Programmable injection/scan delay Programmable automatic syringe filling Pause and hold functions Test-injection capability Air-expelling safety lock Emergency-stop function Large touchscreen user interface Swivelling injector arm Mobile pedestal/stand Optional contrast-media heat maintainer Optional hand switch Stores programmable injection protocols
