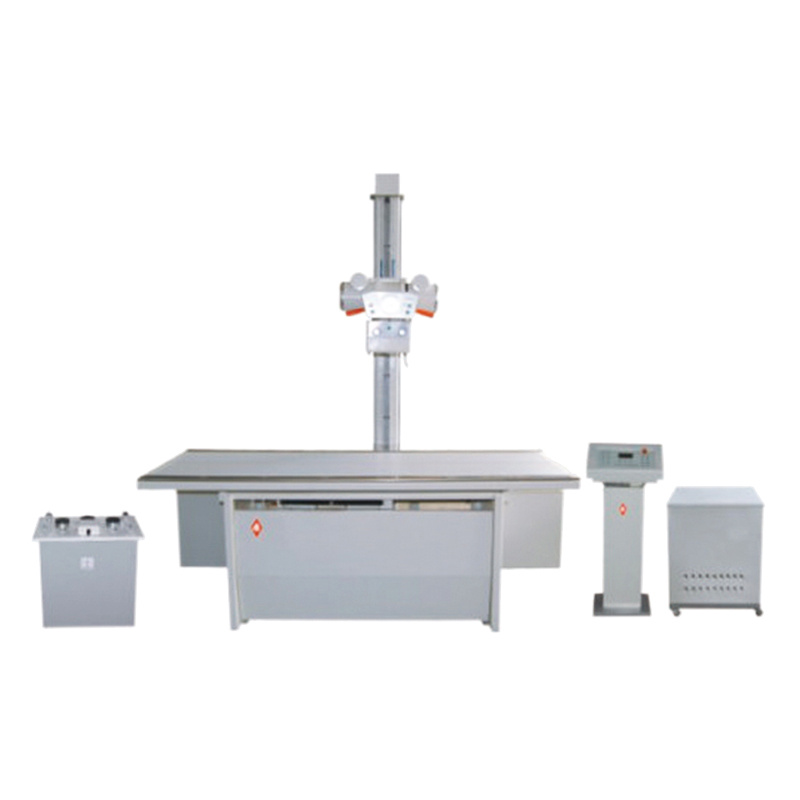

WT-300BY 300mA Diagnostic X-Ray Machine

The WT-300BY 300mA Diagnostic X-Ray Machine is a general radiography system designed for hospitals, diagnostic centres and imaging departments. It provides a maximum tube current of 300mA and a continuously adjustable radiographic voltage range of 50–120kV, making it suitable for a broad range of routine X-ray examinations. The system uses a 30kVA high-voltage generator and an XD51.20-40/125 X-ray tube with small and large focal spots. The small focus measures 1 × 1 mm, while the large focus measures 2 × 2 mm, allowing different imaging requirements to be accommodated. The supplied radiographic table measures 2000 × 710 × 710 mm and provides longitudinal and transverse tabletop movement. A current XRY-300B listing confirms the same 50–120kV range and 300mA class configuration. Key Features 300mA diagnostic X-ray machine Continuously adjustable 50–120kV Maximum output current of 300mA 30kVA high-voltage generator Dual focal spot X-ray tube Small focus: 1 × 1 mm Large focus: 2 × 2 mm Exposure time from 0.04–6.3 seconds 22 exposure-time grades Full radiographic table included Longitudinal and transverse tabletop movement Supports cassette sizes up to 14 × 17 inches Suitable for general radiography Specification Details Model WT-300BY Art. No. XRY-300B Product Type 300mA Diagnostic X-Ray Machine Radiograph Voltage 50–120kV Continuously Adjustable Small Focus Current 50mA / 100mA Big Focus Current 50mA / 100mA / 200mA / 300mA Exposure Time 0.04–6.3 sec Exposure Time Grades 22 High-Voltage Generator Capacity 30kVA Maximum DC Output Voltage 120kV Maximum DC Output Current 300mA X-Ray Tube Model XD51.20-40/125 Small Focus Size 1 × 1 mm Big Focus Size 2 × 2 mm Radiographic Table Size 2000 × 710 × 710 mm Longitudinal Table Travel 620 mm Transverse Table Travel 200 mm Ray-Filter Travel 500 mm Convergence Distance 100 cm Grid Density N28 Maximum Cassette Size 365 × 432 mm / 14 × 17 in
