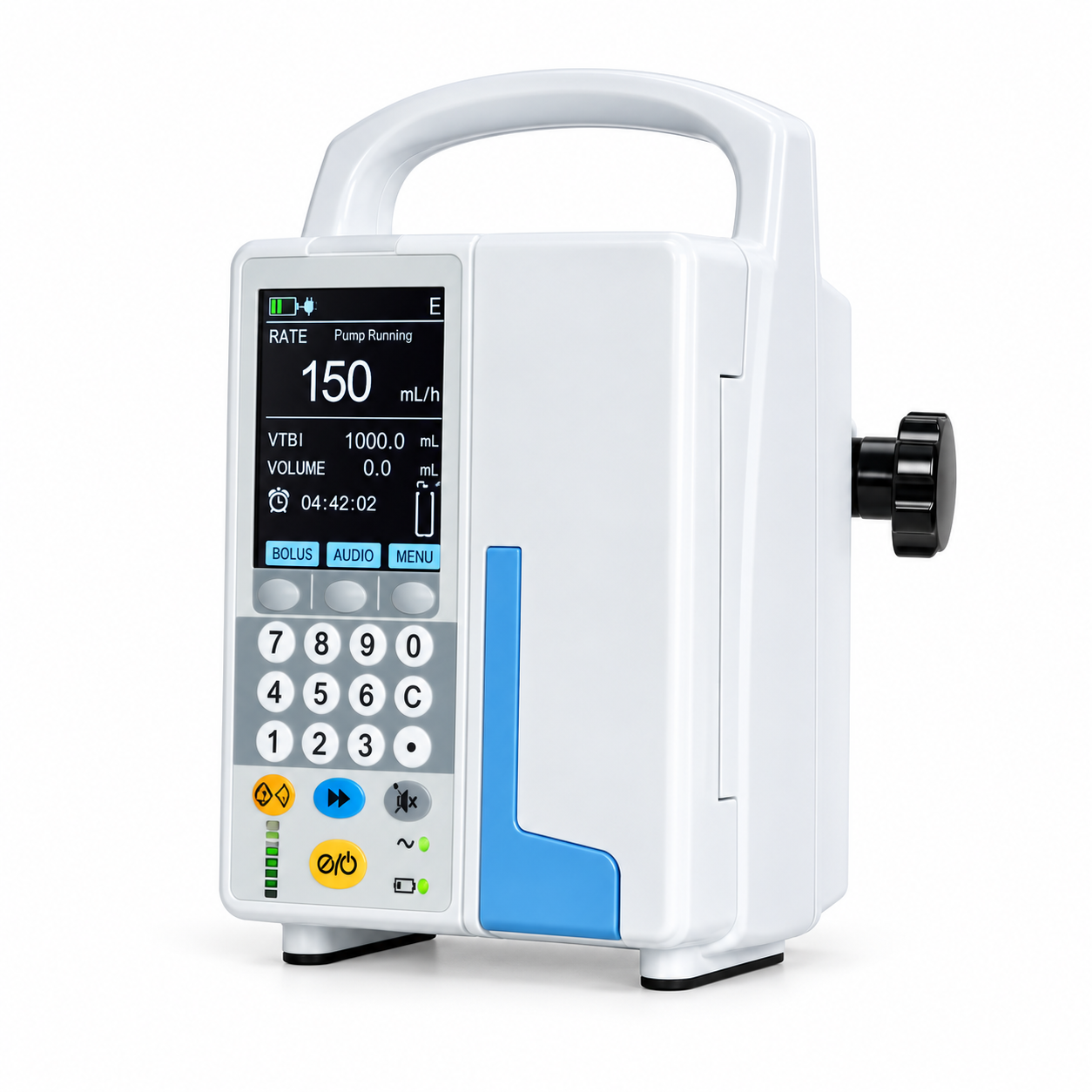

Wincom IFP-800A Volumetric Infusion Pump

The Wincom IFP-800A Volumetric Infusion Pump is designed for controlled intravenous administration of fluids and medications in hospitals, clinics, emergency departments, intensive care units and other clinical environments. It supports standard 20 drops/mL and 60 drops/mL IV sets, with a programmable flow-rate range from 0.1 mL/hr to 1200 mL/hr. The pump incorporates ultrasonic air-bubble detection, adjustable occlusion alarm sensitivity and a comprehensive audio-visual alarm system to support safe infusion therapy. A 3.2-inch colour TFT display provides clear visibility of operating parameters. Key Features Volumetric infusion operating mode Wide flow-rate range of 0.1–1200 mL/hr Infusion accuracy of ≤ ±5% after calibration Compatible with standard 20 drops/mL and 60 drops/mL IV sets Programmable infusion volume up to 9999 mL Ultrasonic air-bubble detection Three selectable bubble-detection sensitivity levels Three programmable occlusion alarm sensitivity levels Comprehensive audio and visual alarm system 3.2-inch colour TFT display Portable design with integrated carrying handle Specification Details Model / Art. No. IFP-800A Infusion Mode Volumetric IV Set Compatibility Standard 20 drops/mL and 60 drops/mL sets IV Set Diameter 3.4–4.5 mm Infusion Accuracy ≤ ±5% after calibration Flow Rate Range 0.1–1200 mL/hr Volume Limit 0.1–9999 mL 20 drops/mL Drip Rate 1–400 drops/min 60 drops/mL Drip Rate 1–150 drops/min Bubble Detection Ultrasonic Bubble Sensitivity 3 levels Bubble Detection Range 50–300 µL Occlusion Alarm 3 programmable sensitivity levels Display 3.2-inch colour TFT
