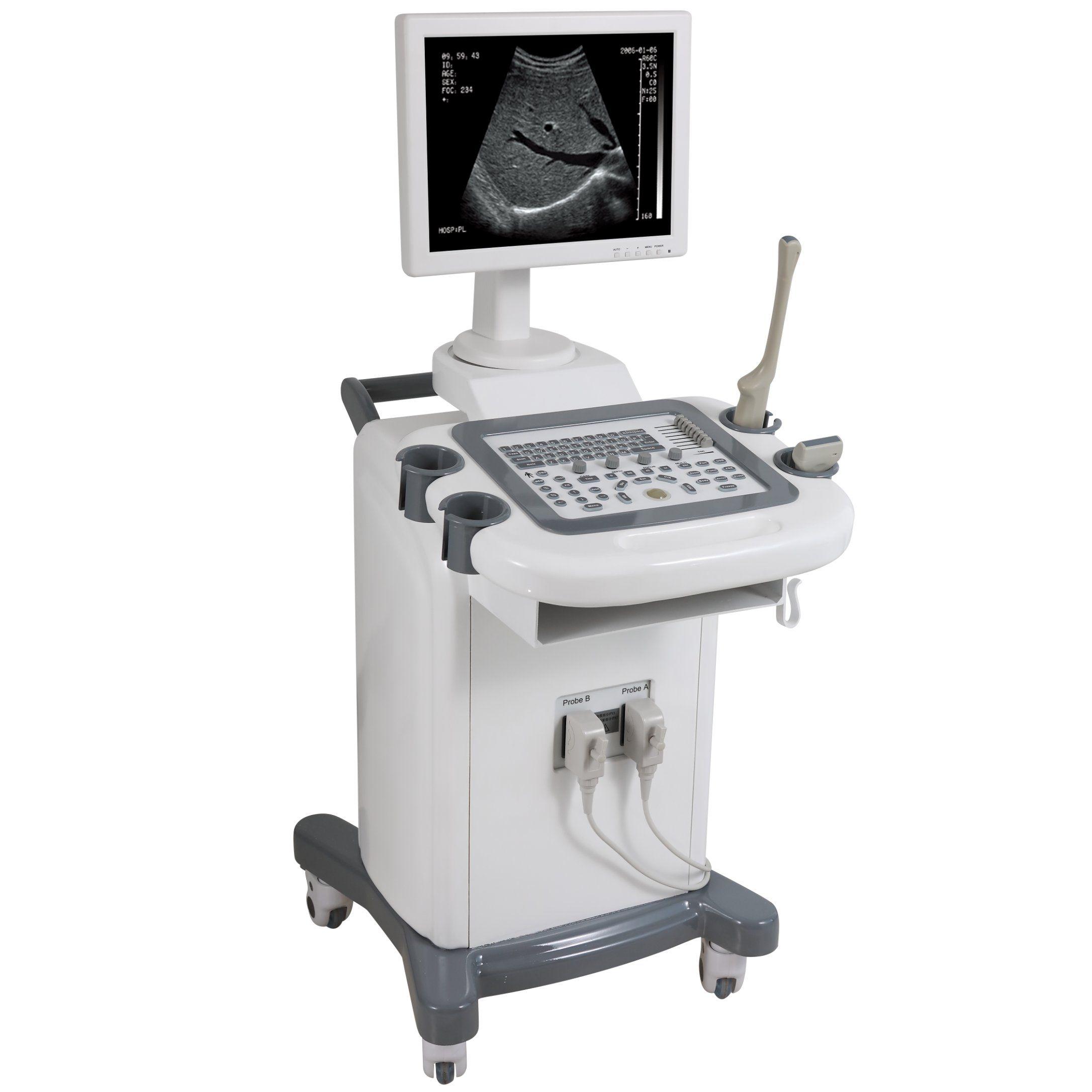

USS-353T Full Digital Ultrasound Scanner with Trolley

The USS-353T Full Digital Ultrasound Scanner with Trolley is a cart-based diagnostic ultrasound system designed for obstetric, gynecological, abdominal and general imaging applications. Its trolley configuration provides a stable workstation with a large monitor, control console and probe holders for routine hospital and diagnostic-centre use. The system supports B, B+B, B+M, M and 4B imaging modes, a maximum display depth of 240 mm, 256-level grayscale imaging and multiple image-orientation and zoom functions. The standard configuration includes a 60R / 3.5 MHz convex array probe, while linear, micro-convex and transvaginal probes are available as options. Key Features Full digital ultrasound diagnostic system Mobile trolley configuration 15-inch high-resolution monitor Imaging modes: B, B+B, B+M, M and 4B Maximum display depth of 240 mm 256-level grayscale Image inversion: up/down and left/right Black/white image conversion Multiple zoom levels Patient information and annotation functions Standard 60R / 3.5 MHz convex probe Supports optional linear, micro-convex and transvaginal probes Suitable for obstetric and general diagnostic imaging Convenient mobile design for hospitals and clinics Specification Details Product Type Full Digital Trolley Ultrasound Scanner Model / Art. No. USS-353T Display Modes B, B+B, B+M, M, 4B Maximum Display Depth 240 mm Gray Scale 256 Levels Image Conversion Up/Down, Left/Right, Black/White Zoom Levels ×0.8, ×1.0, ×1.2, ×1.5, ×2.0 Monitor 15-inch High-Resolution Monitor Patient Information Date, Name, Sex, Age, Hospital Annotation Supported Standard Probe 60R / 3.5 MHz Convex Array Probe Optional Linear Probe L40 / 7.5 MHz Optional Micro-Convex Probe 20R / 5.0 MHz Optional Transvaginal Probe 13R / 6.5 MHz Scanning Modes Convex / Linear / Transvaginal Typical Interface USB 2.0, VGA, Video Typical Power Supply AC 110–240 V, 50/60 Hz Installation Trolley / Cart-Based
