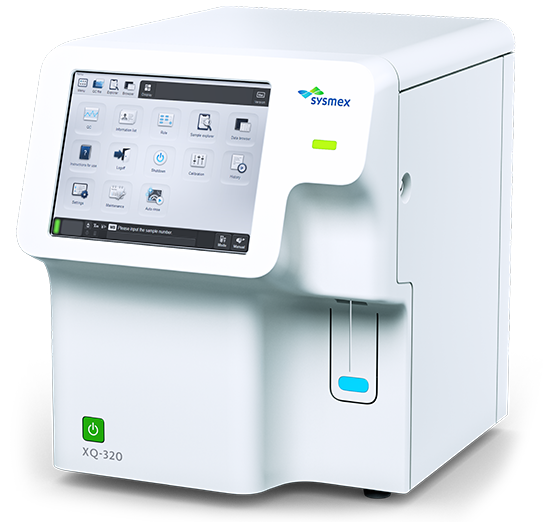

Sysmex XQ-320 3-Part Differential Automated Hematology Analyzer

The Sysmex XQ-320 Automated Hematology Analyzer is a compact 3-part differential system designed for automated Complete Blood Count (CBC) analysis in laboratories, clinics, hospitals and other rapid-response diagnostic settings. It measures 17 reportable parameters in the North American configuration, including WBC, RBC, hemoglobin, platelets and a three-part WBC differential with dedicated absolute neutrophil count. Sysmex also offers regional configurations with additional calculated parameters, so Healthhub should use the parameter set supplied with the Nigerian-market unit. The XQ-320 processes approximately 70 whole-blood samples per hour and requires only 16 µL of whole blood. It uses direct-current detection for WBC, RBC and platelet analysis and a non-cyanide method for hemoglobin measurement. Its compact footprint, touchscreen-style interface, automated measurement, QC functionality, sample flagging, minimal weekly maintenance and connectivity capabilities make it particularly suitable for laboratories requiring reliable hematology testing without a large analyzer footprint. Key Features 3-part WBC differential hematology analysis Fully automated CBC testing Up to 70 samples/hour in whole-blood mode Approximately 60 samples/hour in pre-dilution mode Very low 16 µL whole-blood aspiration volume 17 reportable parameters in the referenced configuration Dedicated absolute neutrophil count (NEUT#) Results in less than 60 seconds Whole-blood and pre-dilution modes Direct-current detection technology Non-cyanide hemoglobin measurement Sample flags for potentially abnormal results Levey-Jennings and X-barM QC charts Compact, space-conscious design Minimal weekly maintenance Automatic wake-up and quick shutdown HL7 connectivity Large onboard data-storage capacity Detailed Technical Specifications Specification Sysmex XQ-320 Analyzer Type Automated Hematology Analyzer Differential 3-Part WBC Differential Parameters 17 reportable parameters* Parameters Listed WBC, RBC, HGB, HCT, MCV, MCH, MCHC, PLT, RDW-SD, RDW-CV, MPV, NEUT#, LYMPH#, MXD#, NEUT%, LYMPH%, MXD% Whole Blood Throughput Approx. 70 samples/hour Pre-Dilution Throughput Approx. 60 samples/hour Whole Blood Aspiration 16 µL Pre-Dilution Aspiration 65 µL; 20 µL blood required Analysis Modes Whole Blood & Pre-Dilution WBC Measurement Direct Current Method RBC Measurement Direct Current Method PLT Measurement Direct Current Method Hemoglobin Non-cyanide HGB analysis WBC Linearity 1.00–99.90 ×10³/µL RBC Linearity 0.30–7.00 ×10⁶/µL HGB Linearity 0.1–25.0 g/dL HCT Linearity 10.00–60.00% PLT Linearity 10–999 ×10³/µL Stored Sample Results Up to 500,000 entries Patient Information Up to 10,000 entries QC Levey-Jennings, X-barM; BeyondCare Quality Monitor support Interfaces 1 Serial, 2 LAN, 5 USB Operating System Embedded Microsoft Windows 10 Dimensions 35.6 × 44.5 × 43.2 cm (W × D × H) Weight Approx. 22 kg Operating Temperature 15–30°C Operating Humidity 20–85% Power Supply AC 100–240 V, 50/60 Hz Power Consumption 160 VA or less
