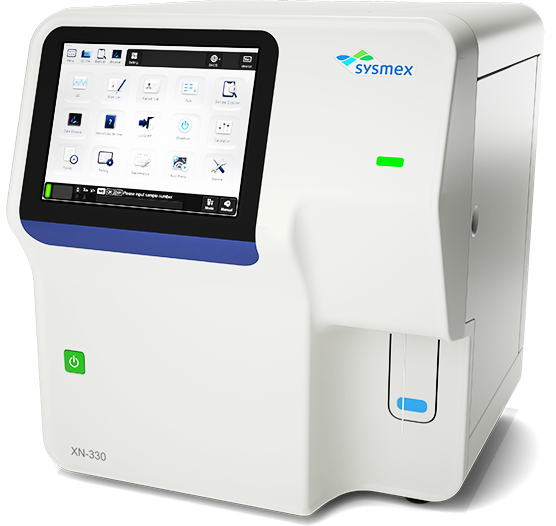

Sysmex XN-330 Full 5-Part Differential + Immature Granulocytes Hematology Analyzer

The Sysmex XN-330 Automated Hematology Analyzer is a compact laboratory system designed for complete blood count (CBC) testing with a full 5-part white blood cell differential plus automated immature granulocyte (IG) measurement. The analyzer differentiates neutrophils, lymphocytes, monocytes, eosinophils and basophils, while separately reporting immature granulocytes as IG# and IG%. Sysmex refers to this combination as a six-part differential. The XN-330 uses fluorescent flow cytometry for WBC differential analysis, DC impedance with hydrodynamic focusing for RBC and platelet measurements, and a cyanide-free SLS method for hemoglobin. It processes up to 60 whole-blood samples per hour and requires only 25 µL aspiration volume in whole-blood mode. Designed for lower-volume laboratories requiring advanced hematology capabilities, it combines a compact footprint with an integrated IPU, colour LCD touchscreen, intuitive XN software, Low WBC mode and automated IG measurement without additional sample preparation or reagents. 3. Key Features Full 5-part WBC differential Automated immature granulocyte measurement 6-part differential: NEUT, LYMPH, MONO, EO, BASO + IG Reports IG# and IG% Up to 60 samples/hour Only 25 µL whole-blood aspiration Open-tube sampling Whole-blood and pre-dilution modes Fluorescent flow cytometry for WBC differential Hydrodynamically focused DC impedance for RBC/PLT Cyanide-free SLS hemoglobin measurement Low WBC mode Integrated IPU LCD colour touchscreen XN software interface Stores up to 10,000 sample results Compact benchtop design Automated QC support Detailed Technical Specifications Specification Sysmex XN-330 Analyzer Type Automated Hematology Analyzer Differential 5-Part + Immature Granulocytes Sysmex Classification 6-Part Differential WBC Differential NEUT, LYMPH, MONO, EO, BASO + IG IG Parameters IG# and IG% CBC Parameters WBC, RBC, HGB, HCT, MCV, MCH, MCHC, PLT, RDW-SD, RDW-CV, MPV Differential Parameters NEUT#, NEUT%, LYMPH#, LYMPH%, MONO#, MONO%, EO#, EO%, BASO#, BASO%, IG#, IG% WBC/DIFF Technology Fluorescent Flow Cytometry RBC/PLT Technology DC Impedance with Hydrodynamic Focusing Hemoglobin Method Cyanide-Free SLS Whole Blood Throughput Up to 60 samples/hour Whole Blood Aspiration 25 µL Pre-Dilute Aspiration 70 µL Sampling Open Tube WBC Linearity 0.00–440.00 ×10³/µL RBC Linearity 0.00–8.60 ×10⁶/µL PLT Linearity 0–5,000 ×10³/µL Result Storage 10,000 samples QC XN-L CHECK / XN CHECK QC Files 20, including 3 X-barM files User Interface Integrated IPU with LCD Colour Touchscreen Dimensions (W×H×D) 17.7 × 18.3 × 20.3 in Approx. Dimensions 45.0 × 46.5 × 51.6 cm Weight Approx. 77.2 lb / 35 kg Maintenance Daily shutdown; weekly CELLCLEAN AUTO cleaning sequence
