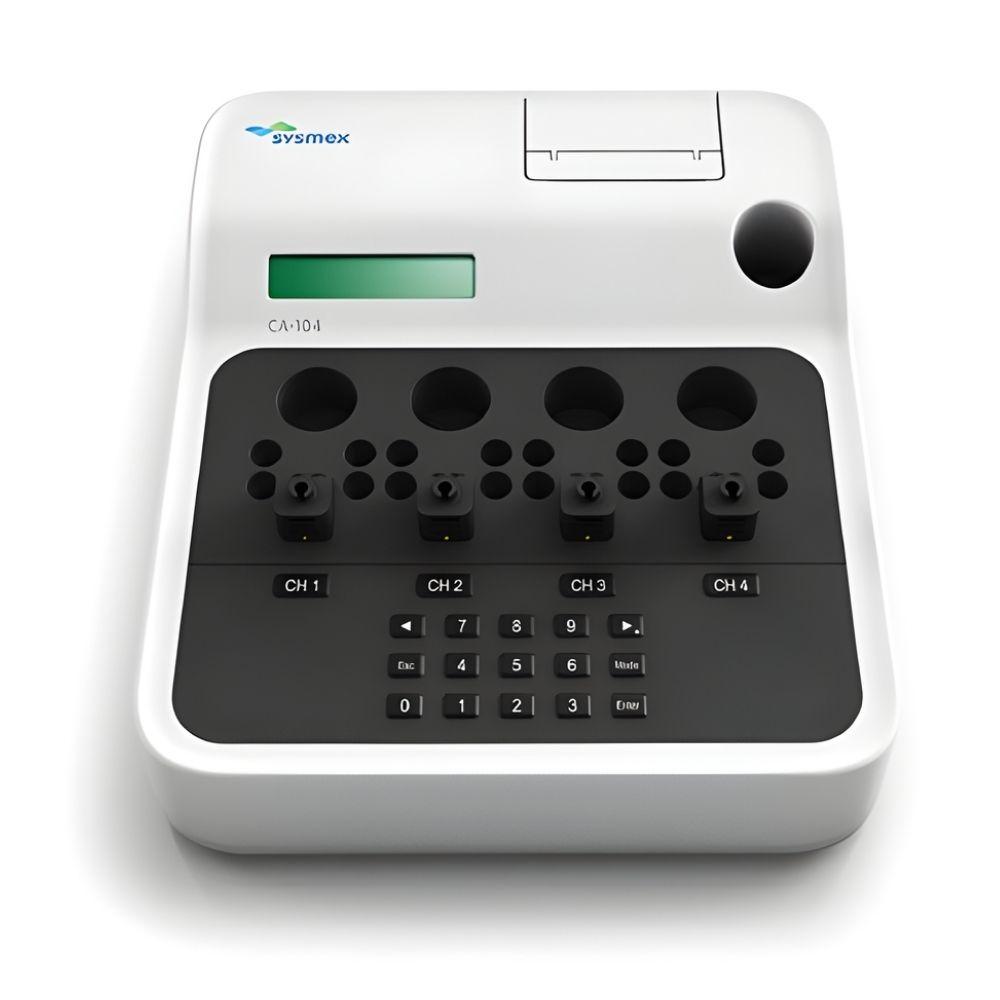

Sysmex CA-104 Semi-Automated Coagulation Analyzer

The Sysmex CA-104 Semi-Automated Coagulation Analyzer is a compact laboratory system designed to simplify and standardize routine blood coagulation testing in hospitals, diagnostic centres and clinical laboratories. The CA-104 features four optical measurement channels and uses Sysmex's turbodensitometric photo-optical measuring principle to objectively detect clot formation. Four LEDs operating at 870 nm are used for clotting assays. The analyzer supports PT (Prothrombin Time), APTT (Activated Partial Thromboplastin Time), TT (Thrombin Time), fibrinogen and coagulation factor assays. Depending on the assay, throughput can reach approximately 60 PT tests per hour or 30 APTT tests per hour. Its semi-automated workflow combines manual pipetting with automatic measurement start, built-in timing, temperature-controlled incubation and automatic result calculation. A built-in thermal printer provides immediate result output. Key Features Four-channel semi-automated coagulation analyzer Photo-optical turbodensitometric clot detection 4 LED detection channels at 870 nm PT, APTT, TT and fibrinogen testing Supports selected coagulation factor assays Up to approximately 60 PT tests/hour Approximately 30 APTT tests/hour Manual pipetting with automatic start Built-in pre-incubation timer Temperature-controlled incubation Four reagent positions at 37°C 16 cuvette incubation positions Up to 15 programmable assay methods Up to 9 calibration points Built-in thermal printer Compact benchtop design Low sample and reagent requirements Detailed Technical Specifications Specification Sysmex CA-104 Analyzer Type Semi-Automated Optical Coagulation Analyzer Measurement Principle Turbodensitometric Photo-Optical Detection Channels 4 Light Source LED Wavelength 870 nm Primary Assays PT, APTT, TT, Fibrinogen Factor Assays Extrinsic & Intrinsic Coagulation Factors PT Throughput Approx. 60 tests/hour APTT Throughput Approx. 30 tests/hour Sample Type Centrifuged Citrated Plasma PT Sample Volume 50 µL APTT Sample Volume 50 µL Fibrinogen Sample Volume 100 µL* TT Sample Volume 50–100 µL Factor Assay Sample Volume 5 µL* Sample/Reagent Handling Manual Pipetting Measurement Start Auto-Start Measurement Channels 4 with Light-Protection Caps Reagent Positions 4 Cuvette Incubation Positions 16 Reaction Vessel Single-Use Cuvettes with Stir Bars Programmable Methods Up to 15 Assays Calibration Up to 9 Calibration Points Result Units Seconds, INR, %, mg/dL Display 2-Line LCD, 20 Characters per Line Printer Integrated Thermal Printer Interface RS-232C Dimensions (W × H × D) 270 × 95 × 310 mm Weight Approx. 2.9 kg Operating Voltage 100–240 VAC Operating Temperature 10–30°C Relative Humidity <85%
