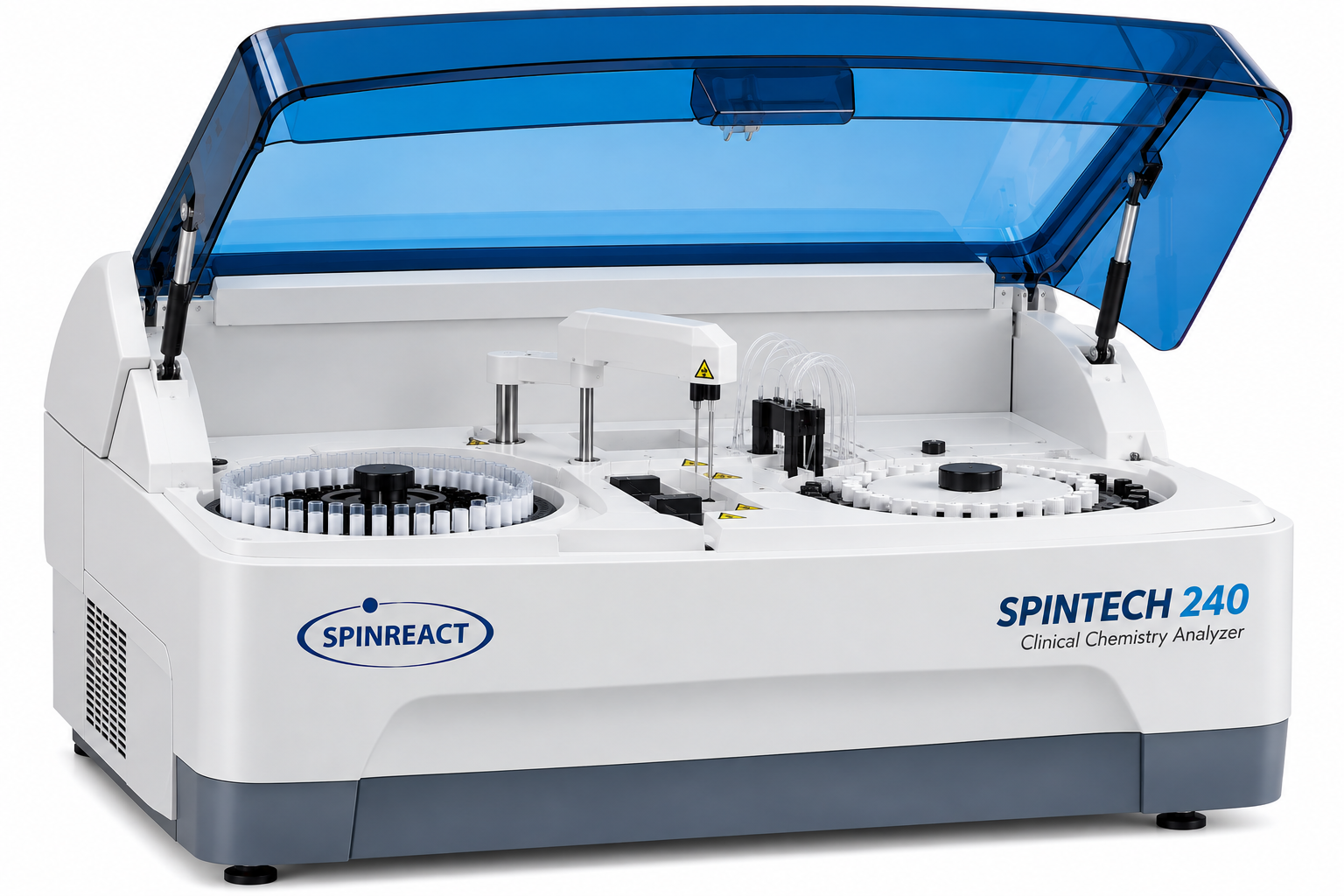

Spinreact Spintech 240 Fully Automatic Clinical Chemistry Analyzer

The Spinreact Spintech 240 is a fully automatic random-access clinical chemistry analyzer designed for routine clinical chemistry, immunochemistry, and drugs-of-abuse testing. It provides 240 tests per hour, increasing to up to 400 tests per hour with the optional ISE module. The analyzer uses an effective air-pressure mixing system with specially designed plastic cuvettes, helping reduce carry-over, reaction volume, and water consumption. It also supports STAT testing, automatic dilution, reagent refrigeration, optional sample barcode identification, and automatic cuvette washing. Key Features Fully automatic clinical chemistry analyzer 240 tests/hour Up to 400 tests/hour with optional ISE Single-line random-access operation Multi-test analysis Effective air-pressure mixing system Specially designed cuvettes for air-pressure mixing Reduced reaction volume and water consumption Automatic cuvette washing STAT sample priority Automatic sample dilution Refrigerated reagent tray 36 reagent positions Sample barcode identification optional Reagent barcode identification Internal printer External printer optional Westgard quality-control functions Reaction curve display Low-maintenance benchtop design Specification Details Product Type Fully Automatic Clinical Chemistry Analyzer Model Spintech 240 Reference 5001017 Manufacturer Spinreact Country Spain Base Throughput 240 Tests/Hour Throughput with ISE Up to 400 Tests/Hour Operation Single-Line Random Access Applications Clinical Chemistry, Immunochemistry, Drugs of Abuse Sample Containers Sample Cup / Primary Tube Automatic Dilution 1:10–1:100 STAT Testing Yes Sample Identification Position ID / Optional Barcode Reagent Positions 36 Reagent Volume 20–330 µL Reagent Increment 5 µL Reagent Cooling 10°C ±2°C Reaction Cuvettes Plastic Maximum Reaction Time 10 Minutes Reaction Temperature 37°C ±0.1°C Cuvette Washing Automatic Water Consumption Approx. 3.5 L/Hour Mixing System Air-Pressure Mixing Quality Control Westgard Multi-Rule Data Storage Approx. 6 Months of Results Printer Internal / External Optional Operating Temperature 15–30°C Dimensions 800 × 640 × 520 mm Weight Approx. 95 kg
