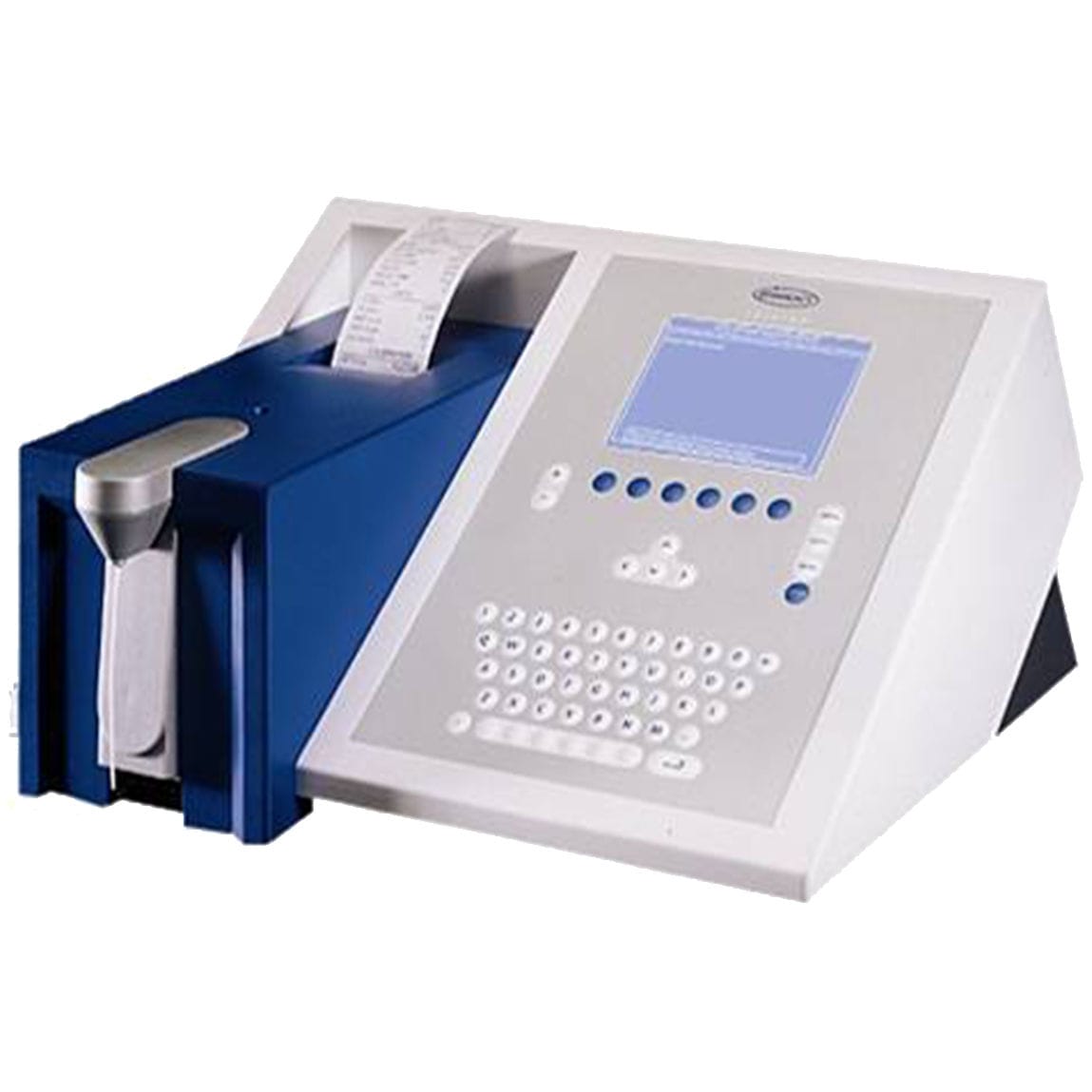

Spinreact Spinlab Semi-Automatic Clinical Chemistry Photometer

The Spinlab Photometer is a semi-automated clinical chemistry analyzer designed for clinical chemistry, immunochemistry, electrolytes, drugs-of-abuse testing and turbidimetric assays. Its optical system supports low reagent volumes and measurements at low analyte concentrations while maintaining reliable analytical performance. The instrument requires no warm-up time, incorporates an integrated printer, full-size keyboard and LCD display, and uses an automatic 12-position filter wheel. It is suitable for hospitals, diagnostic laboratories, clinics and clinical chemistry laboratories requiring a flexible semi-automated analyzer. Key Features Semi-automatic clinical chemistry analyzer Made by Spinreact, Spain Full-size keyboard and LCD display No warm-up time Low reagent consumption Integrated printer High reliability and low maintenance Automatic zero setting Automatic 12-position filter wheel Six standard interference filters Six additional positions for optional filters Quartz-window flow cell Fixed 37°C Peltier temperature control Kinetic, two-point kinetic and endpoint methods Bichromatic endpoint measurement Supports turbidimetric assays Quality-control and patient-result functions Sipper/aspiration system Specification Details Product Type Semi-Automatic Clinical Chemistry Analyzer / Photometer Product Name Spinlab Photometer Manufacturer Spinreact Country Spain Light Source Quartz-Halogen Lamp 12V 20W Photometric Range -0.1 to 2.3 Abs Detector Photodiode 320–1000 nm Filter Wheel Automatic 12 Positions Standard Filters 340, 405, 505, 546, 578, 620 nm Optional Filter Positions 6 Blanking Automatic Zero Setting Flow Cell Metal with Quartz Windows Measurement Volume 25 µL Temperature Control Peltier Operating Measurement Temperature 37°C Dimensions 40 × 36.5 × 17 cm Weight 8.5 kg Power Supply 100–240 V, 50/60 Hz Maximum Power Consumption 100 VA Operating Temperature 15–35°C
