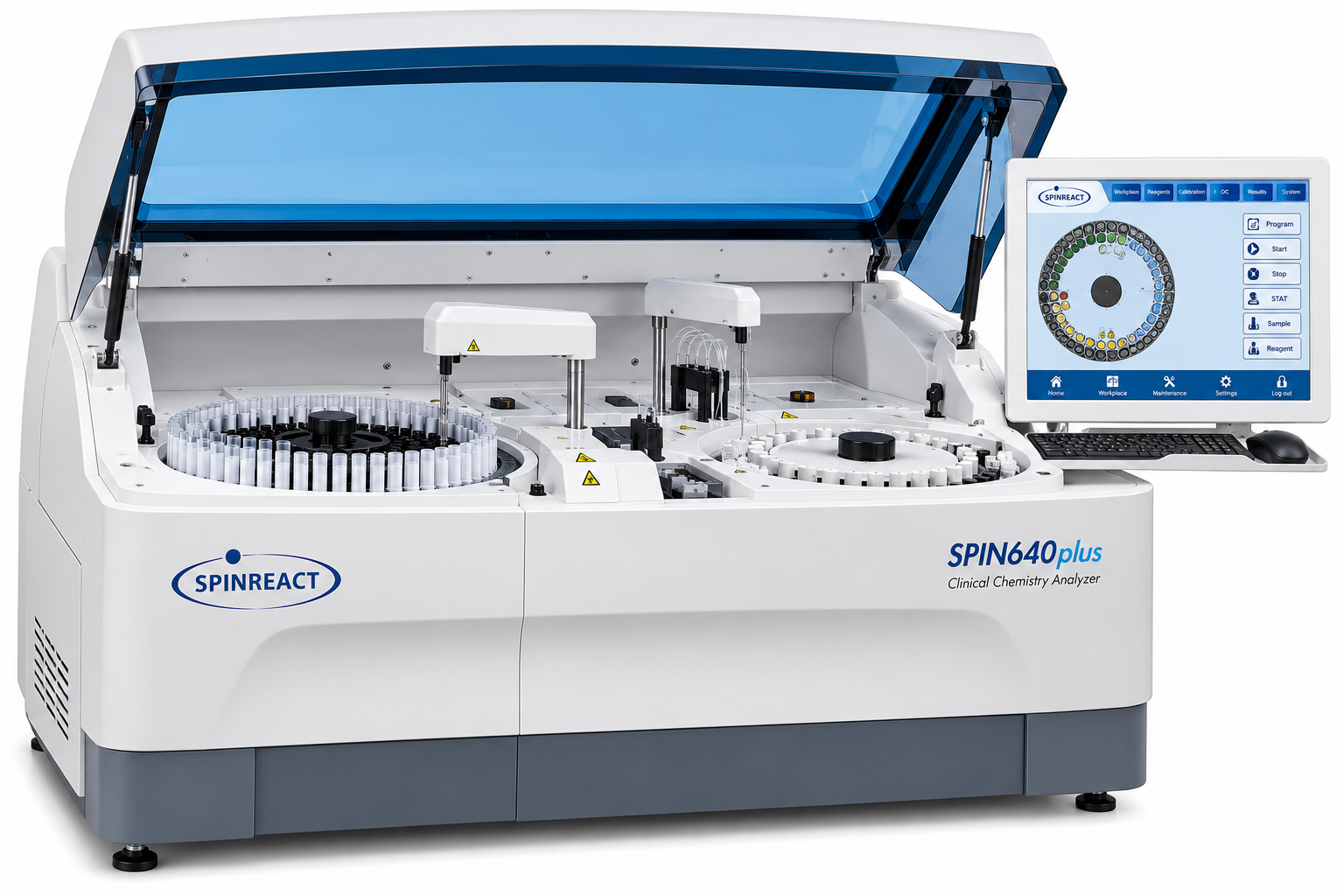

Spinreact SPIN640plus Fully Automatic Clinical Chemistry Analyzer

The Spinreact SPIN640plus is a high-throughput fully automated random-access clinical chemistry analyzer designed for hospitals, diagnostic centers, and medium- to high-volume clinical laboratories. Spinreact’s current and archived documentation identifies the system as delivering 400 photometric tests per hour, increasing to up to 640 tests per hour with the optional ISE module. It provides a 90-sample onboard capacity, refrigerated reagent storage, automatic cuvette washing, STAT priority handling, automatic sample dilution, and an internal barcode reader option for streamlined laboratory workflow. Key Features Fully automated clinical chemistry analyzer Random-access operation 400 tests/hour photometric throughput Up to 640 tests/hour with ISE 90 sample positions Refrigerated reagent compartment Automatic washing of reaction cuvettes Internal barcode reader option STAT sample priority Automatic pre- and post-dilution Automatic probe washing Liquid-level detection Clot detection Collision protection Low carry-over Supports absorbance photometry and turbidimetry Optional ISE testing Suitable for high-volume routine clinical chemistry Specification Details Product Type Fully Automatic Clinical Chemistry Analyzer Model SPIN640plus Manufacturer Spinreact Country Spain Operation Fully Automatic Random Access Photometric Throughput 400 Tests/Hour Throughput with ISE Up to 640 Tests/Hour Sample Capacity 90 Positions Sample Volume 2–45 µL Sample Increment 0.1 µL Reaction Cuvettes 90 Reusable Cuvettes Cuvette Washing Automatic Reaction Volume 150–360 µL Reaction Temperature 37°C Temperature Stability ±0.1°C Mixing System 2 Independent Mixers Measurement Principles Absorbance Photometry / Turbidimetry / Optional ISE STAT Priority Yes Automatic Dilution Pre- and Post-Dilution Maximum Dilution Ratio Up to 1:150 Probe Functions Liquid Level / Clot Detection / Collision Protection Carry-Over ≤0.1% Barcode Reader Internal Reader Optional
