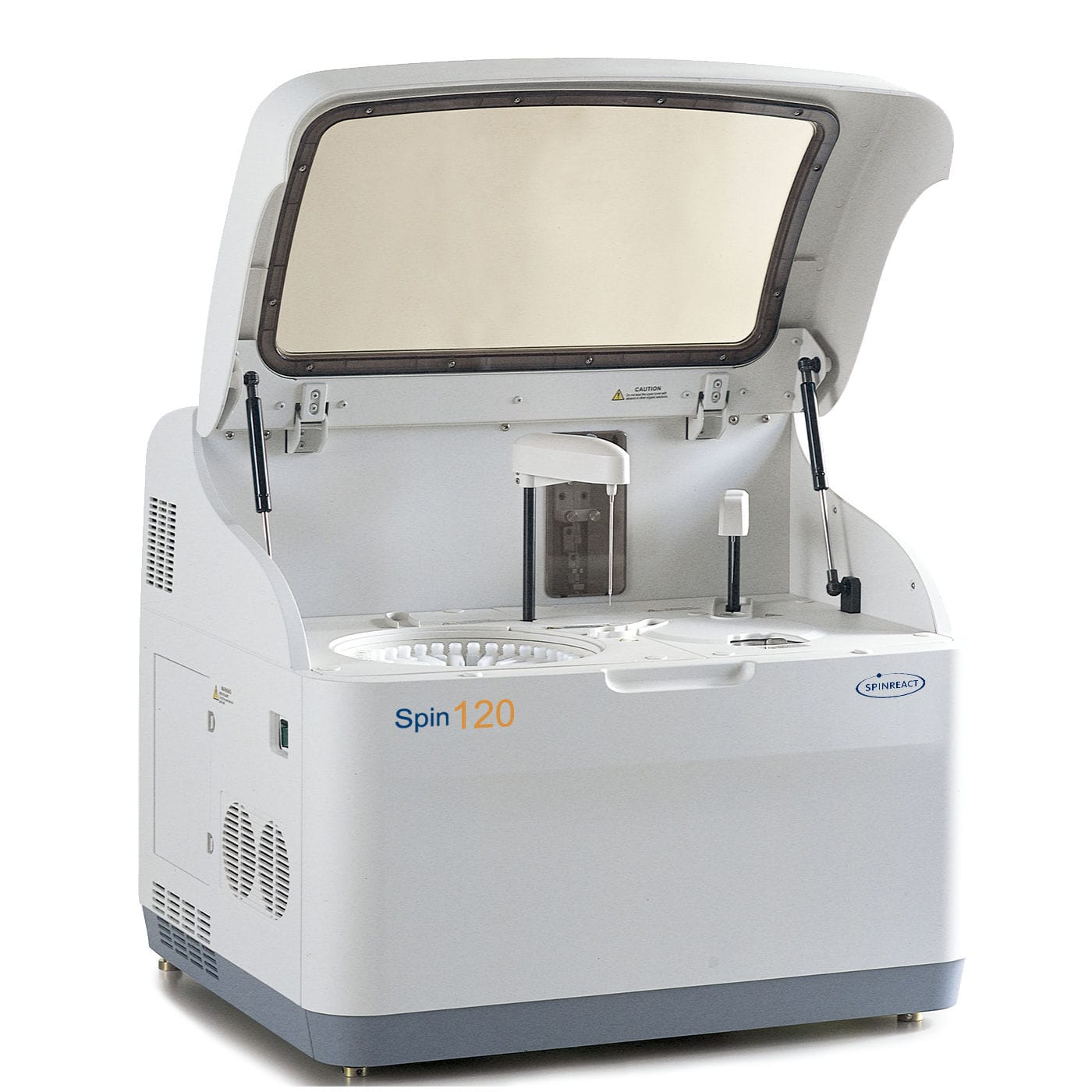

Spinreact SPIN120 Fully Automatic Clinical Chemistry Analyzer

The Spinreact SPIN120 is a fully automated random-access clinical chemistry analyzer designed for routine biochemistry testing in hospitals, diagnostic centers, and clinical laboratories. In the non-ISE configuration, it delivers up to 100 tests per hour and provides automated sample handling, reagent dispensing, incubation, photometric measurement, and result calculation. The analyzer features a refrigerated reagent/sample compartment, 8 fixed wavelengths from 340 to 670 nm, support for endpoint, fixed-time, and kinetic assays, and an optional external barcode reader. The ISE module is optional; when added, the platform can reach up to 300 tests/hour including four ion measurements. Key Features Fully automatic clinical chemistry analyzer Random-access operation Up to 100 tests/hour without ISE Optional ISE module available Refrigerated reagent/sample compartment 28 reagent positions 8 sample positions Refrigeration range 4–15°C 8 photometric wavelengths Automatic STAT sample priority Automatic sample dilution Disposable reaction cuvettes Automatic internal and external probe washing Low carry-over Open-system programming Optional external barcode reader Supports mono- and bi-reagent assays Endpoint, fixed-time, and kinetic methodologies Specification Details Product Type Fully Automatic Clinical Chemistry Analyzer Model SPIN120 Manufacturer Spinreact Country Spain Configuration Without ISE Throughput Up to 100 Tests/Hour Operation Automatic / Discrete / Random Access STAT Priority Yes Measurement Principles Absorbance Photometry and Turbidimetry Reagent Positions 28 Sample Positions 8 Refrigerated Compartment 4–15°C R1 Volume 180–450 µL R2 Volume 30–250 µL Sample Volume 3–45 µL Reaction Rotor 40 Disposable Cuvettes Carry-Over <0.1% Automatic Dilution Pre- and Post-Dilution Maximum Dilution Ratio Up to 1:150 Barcode Reader Optional External Reader
