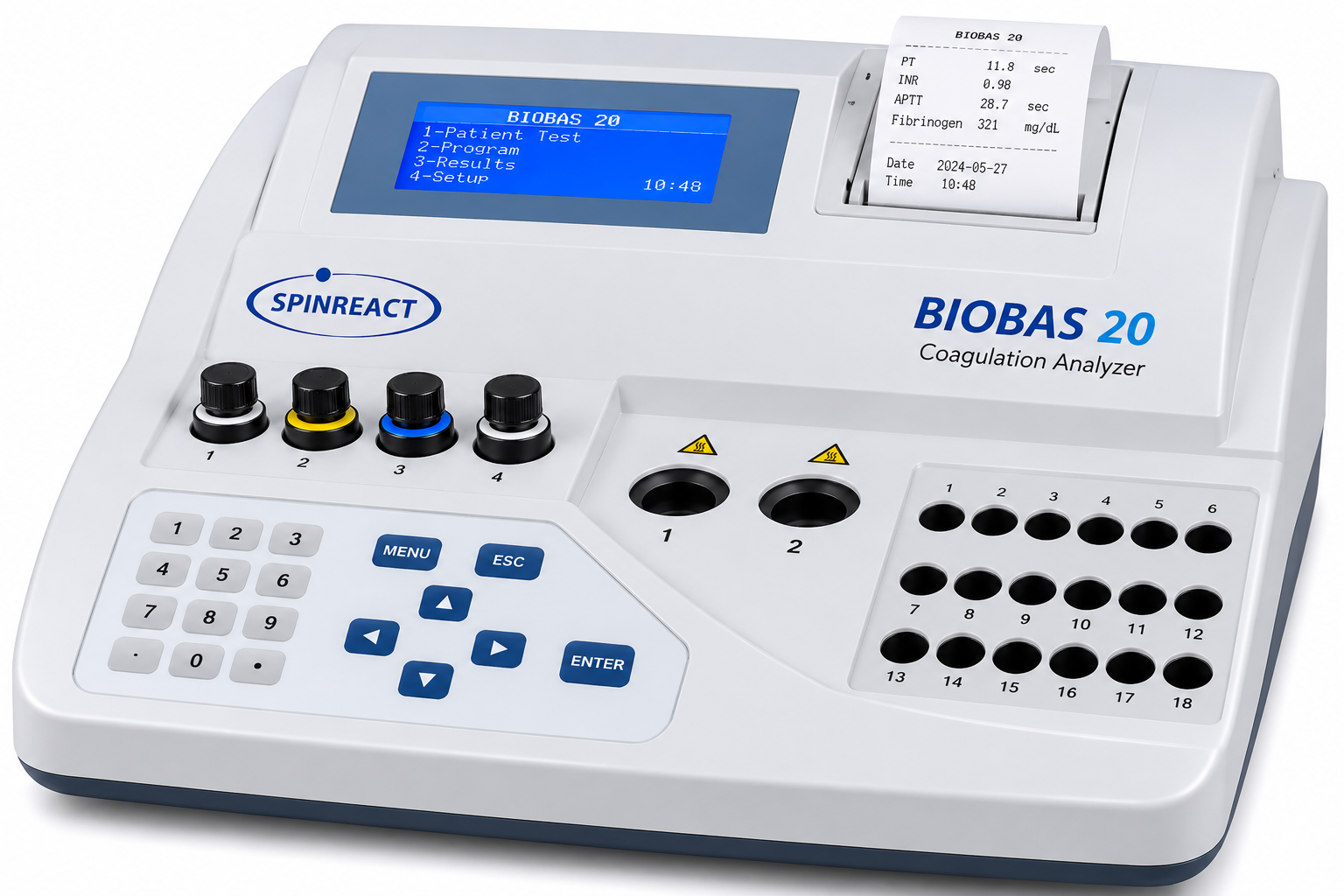

Spinreact BIOBAS 20 Two-Channel Coagulation Analyzer

The Spinreact BIOBAS 20 is a semi-automatic two-channel coagulation analyzer designed for routine hemostasis testing in clinical laboratories. It uses a microprocessor to program reagent parameters, calculate results automatically, and manage calibration and reference curves. Spinreact lists the BIOBAS 20 under Ref. 5003010. The current BIOBAS 20/40 platform also supports two-wavelength reading, making D-Dimer testing available in addition to standard clotting assays. Key Features Two measuring channels Easy-to-use semi-automatic operation Microprocessor-controlled Programmable reagent parameters Automatic calculation of test results Two-wavelength reading D-Dimer testing capability Four reagent positions 18 cuvette incubation positions on BIOBAS 20 Integrated thermal printer Optional external printer RS232C connectivity ChipCARD reader Automatic cuvette detection Editable calibration and reference curves Specification Details Product Type Semi-Automatic Coagulation Analyzer Model BIOBAS 20 Reference 5003010 Manufacturer Spinreact Country Spain Measuring Channels 2 Reagent Positions 4 Cuvette Incubation Positions 18 Measurement Temperature 37.4°C ±0.4°C Display LCD Display Format 2 Lines × 20 Characters Interfaces 2 × RS232C Card Reader ChipCARD Printer Integrated Thermal Printer External Printer Optional Dimensions Approx. 26.5 × 33 × 8 cm Weight Approx. 4.9 kg
