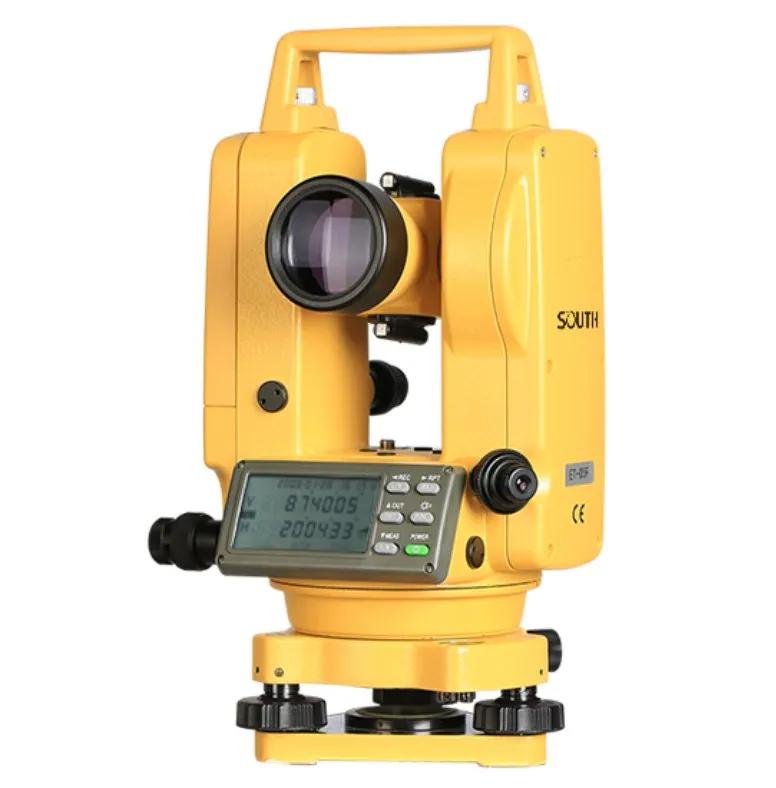

SOUTH ET-02 Electronic Digital Theodolite – 2″ Accuracy

The SOUTH ET-02 Electronic Theodolite is a precision surveying instrument designed for accurate measurement of horizontal and vertical angles in construction, engineering, land surveying and other geospatial applications. It combines a 30× magnification telescope, absolute-encoding angle measurement system, dual-sided LCD displays and 2-arc-second angular accuracy, allowing surveyors and engineers to obtain precise angular measurements in the field. The telescope features a 45 mm effective aperture, 3″ resolving power and a minimum focusing distance of 1.4 m. Its automatic vertical compensator helps maintain accurate readings when minor instrument leveling variations occur. The ET-02 also provides internal storage for up to 256 pairs of horizontal and vertical angle measurements, making it useful for repetitive field surveying and construction-layout work. Key Features 2″ angular accuracy Horizontal and vertical angle measurement Absolute-encoding measurement system Selectable 1″ / 5″ minimum reading 30× telescope magnification 45 mm effective telescope aperture Dual-sided LCD displays Automatic vertical compensator Internal memory for 256 H/V angle pairs 3× optical plummet Rechargeable Ni-H or AA battery operation Up to 12 hours operating time Suitable for demanding field conditions IP54 protection listed in SOUTH's ET-series brochure Compact carrying configuration for field surveying. Technical Specifications Specification SOUTH ET-02 Brand SOUTH Model ET-02 Instrument Type Electronic Theodolite Telescope Image Erect Magnification 30× Effective Aperture 45 mm Resolving Power 3″ Field of View 1°30′ Minimum Focusing Distance 1.4 m Stadia Ratio 100 Stadia Constant 0 Tube Length 157 mm Angle Reading System Absolute Encoding Circle Diameter (VHz) 79 mm Minimum Reading 1″ / 5″ selectable Angular Accuracy 2″ Horizontal Angle Dual Vertical Angle Dual Display Dual-sided LCD Internal Memory 256 pairs of H & V angles Plate Level Sensitivity 30″/2 mm Automatic Compensator Liquid-electric detection Compensator Working Range ±3′ Compensator Accuracy 1″ Optical Plummet Erect image Optical Plummet Magnification 3× Plummet Focus Range 0.5 m to ∞ Operating Temperature -20°C to +50°C Power Supply Rechargeable Ni-H / AA battery Voltage 6 V DC Operating Time Up to 12 hours Dimensions 145 × 318 × 179 mm Weight 5.2 kg Protection IP54
