Single Reflector Operating Lamp

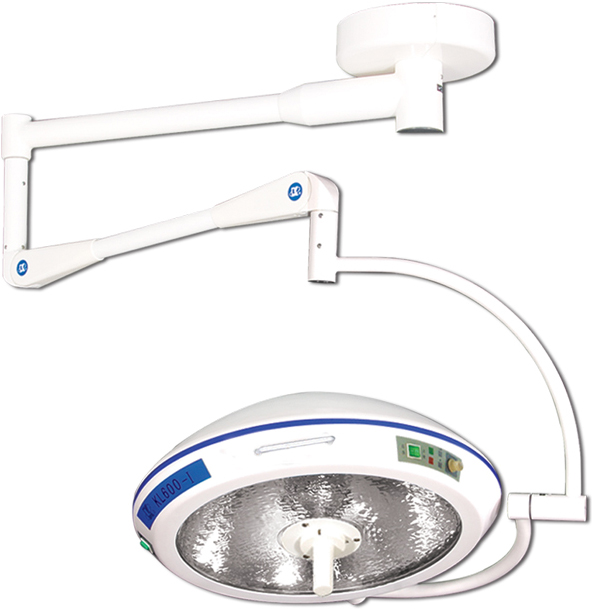

The Axiom OL-600-1 Single Reflector Operating Lamp is a high-intensity surgical lighting system designed to provide bright, focused and shadow-reduced illumination for operating theatres and clinical procedure rooms. The lamp provides an illumination intensity of ≥100,000 lux with a color temperature of 4000 ±500 K. Its adjustable light field ranges from 100–250 mm, while an illumination depth of ≥600 mm supports clear visualization of the surgical field. The OL-600-1 uses a 24V/150W halogen bulb housed within a 600 mm lamp head. The lamp offers a vertical height adjustment range of 880 mm, allowing convenient positioning during procedures. Key Features Single reflector / integral reflection surgical light Illumination of ≥100,000 lux Color temperature of 4000 ±500 K Adjustable light field of 100–250 mm Illumination depth of ≥600 mm Large 600 mm lamp head Vertical height adjustment of 880 mm Uses 24V/150W halogen bulb Temperature rise limited to ≤18°C Designed for focused surgical illumination Suitable for major and minor operating procedures Category I Type B electrical safety classification Specification Details Brand Axiom Model / Art. No. OL-600-1 Product Single Reflector Operating Lamp Reflector Configuration Single Illumination ≥100,000 Lux Power Consumption 200W Color Temperature 4000 ±500 K Temperature Rise ≤18°C Light Field / Facula Diameter Ø100–250 mm Illumination Depth ≥600 mm Height Adjustment Range 880 mm Lamp Head Diameter Ø600 mm Bulb Type Halogen Bulb Rating 24V / 150W Safety Type Category I Type B Primary Application Surgical Illumination
