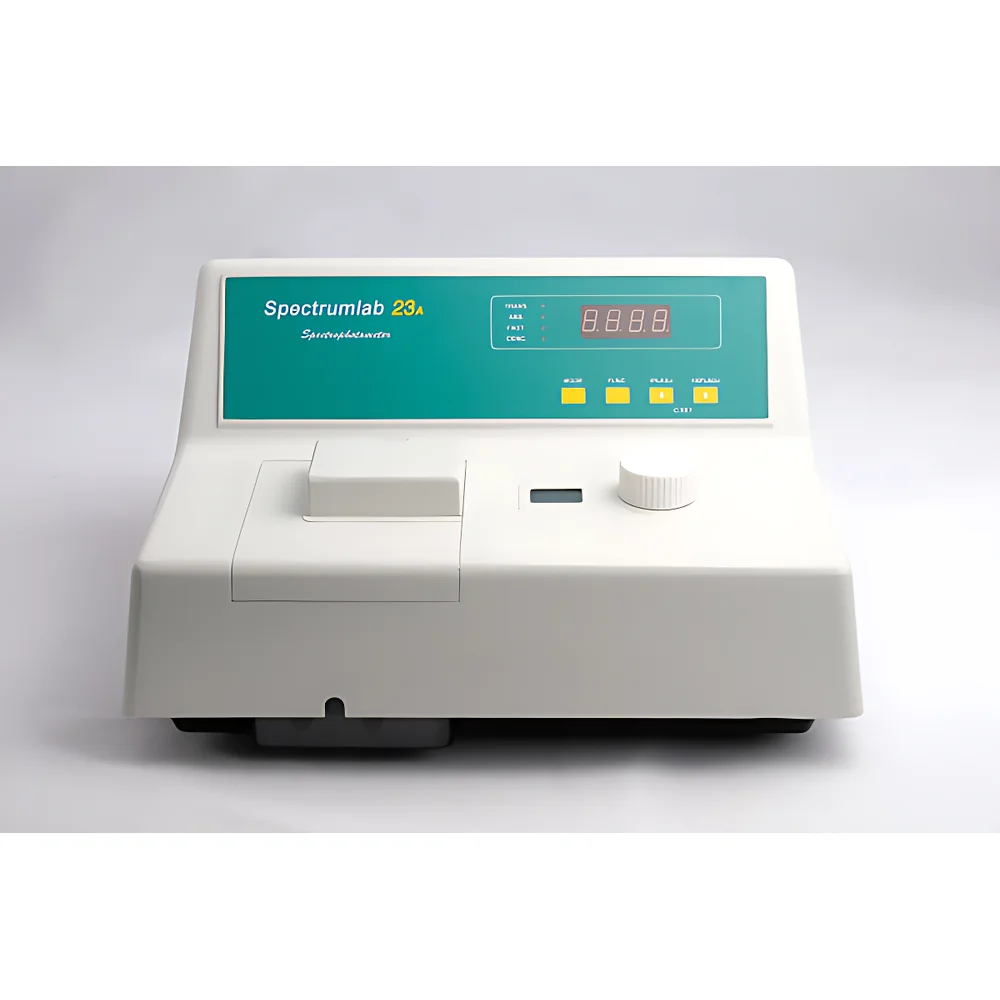

S23A Visible Spectrophotometer 340–950 nm

The S23A Visible Spectrophotometer is a compact benchtop analytical instrument designed for routine qualitative and quantitative analysis within the visible-light spectrum. It operates across a 340–950 nm wavelength range and supports measurement of transmittance, absorbance, concentration and concentration factor. The instrument can accommodate both rectangular cuvettes and suitable test tubes, making it practical for educational laboratories, environmental monitoring, clinical laboratories, research institutions and general chemical analysis. Key Features Visible-light spectrophotometer 340–950 nm wavelength range 12 nm spectral bandwidth Wavelength accuracy of ±2.5 nm Wavelength repeatability of ≤1 nm Stray light of ≤0.5%T Measures transmittance and absorbance Direct concentration measurement capability Concentration factor setting Four-digit LED display Manual wavelength adjustment Supports cuvettes and compatible test tubes RS232 serial interface Suitable for routine qualitative and quantitative analysis Compact benchtop design Specification Details Product Visible Spectrophotometer Model S23A Art. No. SP-S23 Wavelength Range 340–950 nm Spectral Bandwidth 12 nm Wavelength Accuracy ±2.5 nm Wavelength Repeatability ≤1 nm Stray Light ≤0.5%T Transmittance Accuracy ±2.0%T with tube / ±0.5%T with cuvette Transmittance Repeatability ≤0.5%T Transmittance Range 0.0–199.9%T Absorbance Range -0.3–2.999 A Display 4-Digit LED Optical System C-T monochromator with diffraction grating Light Source Halogen lamp Interface RS232 serial / printer interface Sample Holders Glass cuvettes and compatible tubes Installation Benchtop
