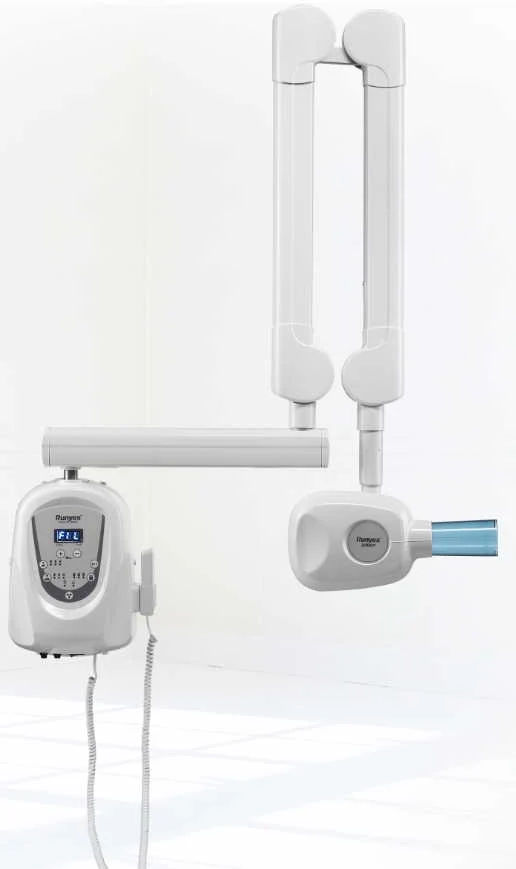

Runyes RAY98(W) DC Wall-Mounted Dental X-Ray Machine

The Runyes RAY98(W) DC Wall-Mounted Diagnostic Dental X-Ray Equipment is a high-frequency intraoral dental radiography system designed for accurate imaging of teeth and surrounding oral structures in dental practices. The unit uses a DC X-ray generator with a 65 kV tube voltage and 7 mA tube current. Its small 0.4 mm focal spot helps produce sharp, detailed dental radiographic images, while the articulated wall-mounted arm enables the tube head to be positioned around the patient according to the required intraoral projection. Runyes specifies a Canon (Toshiba) tube head for this model. The RAY98(W) supports exposure times from 0.04 to 2.0 seconds according to Runyes' current official specification. Its wide AC 110–240 V, 50/60 Hz input range makes the system adaptable to different electrical environments. The model is also recognized as a stationary intraoral dental X-ray system in Australia's medical-device register, where RAY98(W) is associated with manufacturer Ningbo Runyes Medical Instrument Co., Ltd. Key Features DC high-frequency dental X-ray system Wall-mounted configuration Designed for intraoral dental radiography Canon (Toshiba) tube head 65 kV ±10% tube voltage 7 mA ±20% tube current Small 0.4 mm focal spot Exposure time adjustable from 0.04–2.0 seconds 12.5° anode angle Total inherent filtration of ≥2.1 mm Al Half-value layer ≥1.6 mm Al at 65 kV Wide 110–240 V AC input 50/60 Hz operation Articulated positioning arm Compact wall-mounted installation Suitable for routine dental intraoral imaging Technical Specifications Specification Details Product Name Diagnostic X-Ray Equipment Brand Ningbo Runyes Model RAY98(W) X-Ray Type DC / High Frequency Installation Wall-Mounted Application Intraoral Dental Radiography Tube Head Canon (Toshiba) Tube Voltage 65 kV ±10% Tube Current 7 mA ±20% Focal Spot 0.4 mm Anode Angle 12.5° Exposure Time 0.04–2.0 sec Half-Value Layer ≥1.6 mm Al at 65 kV Inherent Filtration ≥2.1 mm Al Duty Cycle 1/30 Input Voltage AC 110–240 V Frequency 50/60 Hz Maximum Power 1100 VA Input Current 5 A Fuse 10 A Leakage Radiation ≤0.25 mGy/h at 1 m*
