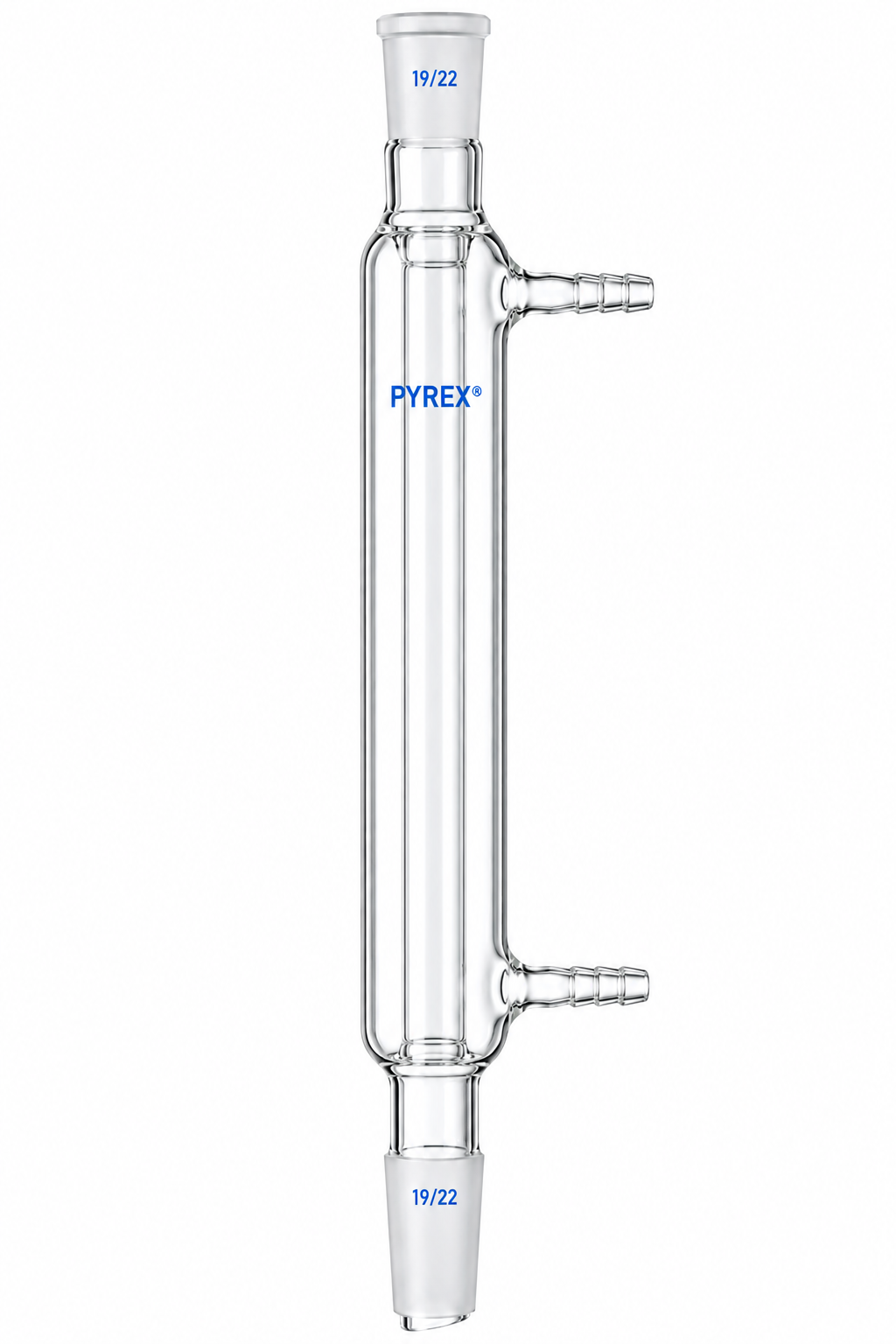

PYREX Distilling Condenser with 19-22 Standard Taper Joints

The PYREX 2155-19 Distilling Condenser is laboratory glassware designed to cool and condense vapors during distillation and fractionation procedures. Its water-jacketed design allows coolant to circulate around the inner condensation tube for efficient vapor cooling. The condenser has 19/22 Standard Taper joints at both the top and bottom, making it suitable for compatible modular laboratory glassware assemblies. Corning specifies an approximate overall length of 283mm and 10mm OD side tubulations. Key Features Genuine Corning PYREX® Catalog number 2155-19 19/22 Standard Taper inner and outer joints Distilling condenser design Drip-tip configuration Approx. 283mm overall length 190mm cooling jacket length Approx. 28mm jacket OD Approx. 10mm side tubulation OD Borosilicate glass construction Designed for laboratory distillation and fractionation Replacement condenser for Corning Organic Chemistry Kit 6949E 1 per pack / 1 per case Specification Details Brand PYREX® Manufacturer Corning Catalog Number 2155-19 Product Type Distilling Condenser Condenser Style Distilling Top Joint 19/22 Standard Taper Bottom Joint 19/22 Standard Taper Overall Length 283mm approx. Cooling Jacket Length 190mm approx. Jacket Outside Diameter 28mm approx. Tubulation Outside Diameter 10mm approx. Material Borosilicate Glass Drip Tip Yes Quantity per Pack 1 Quantity per Case 1
