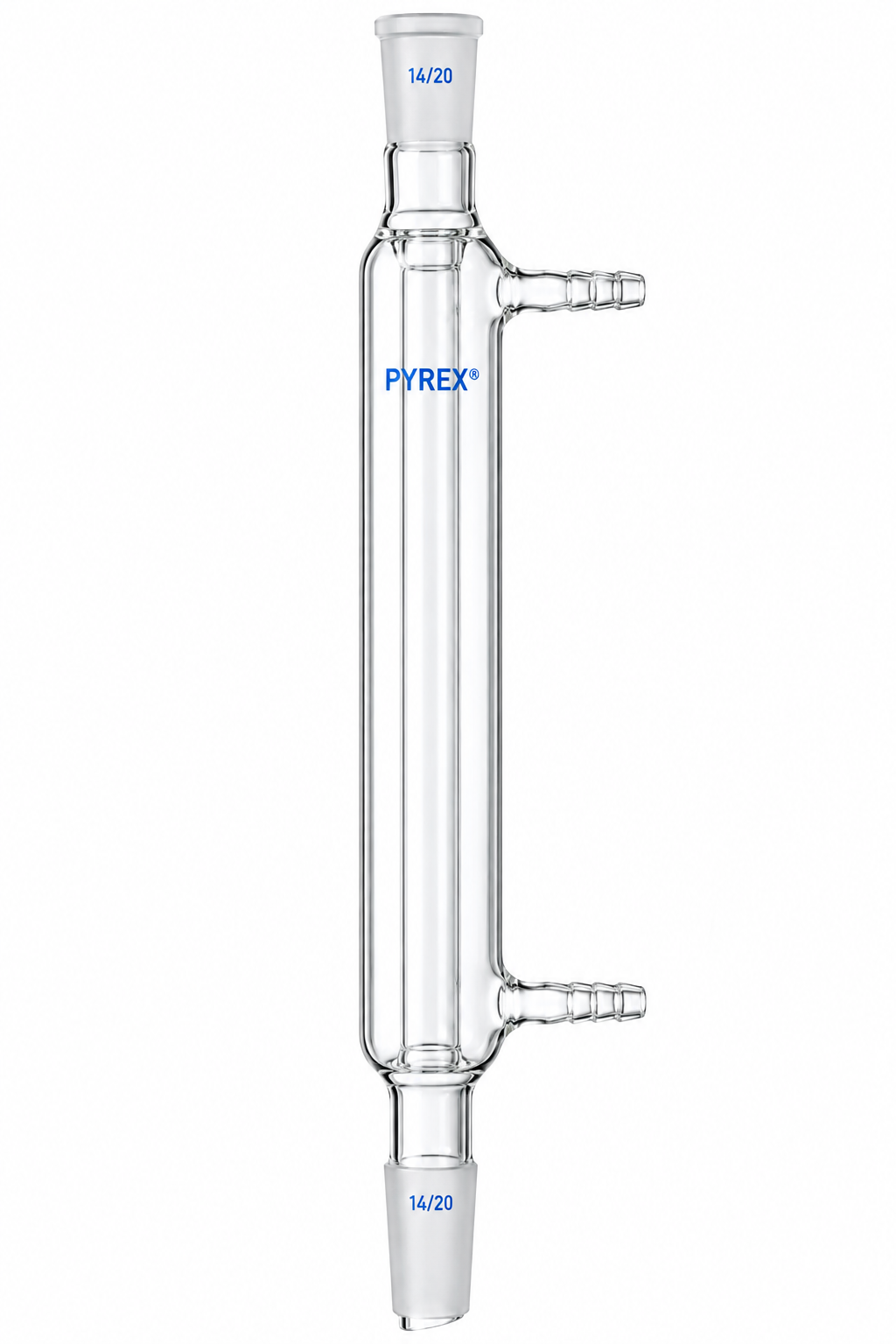

PYREX Distilling Condenser with 14-20 Standard Taper Joints

The PYREX 2155-14 Distilling Condenser is laboratory glassware designed for cooling and condensing vapors during distillation and fractionation procedures. Its straightforward construction makes it suitable for organic chemistry and general laboratory distillation setups. The condenser incorporates 14/20 Standard Taper joints at both the top and bottom, allowing convenient connection with compatible laboratory glassware. It has an approximate overall length of 274mm, a 190mm-long cooling jacket, approximately 28mm jacket outside diameter, and 10mm OD side tubulations for circulating cooling water. Key Features Genuine Corning PYREX® Catalog number 2155-14 Distilling condenser configuration 14/20 Standard Taper top joint 14/20 Standard Taper bottom joint Inner and outer joint configuration Drip-tip design Approx. 274mm overall length Approx. 190mm cooling jacket length Approx. 28mm jacket outside diameter 10mm OD side tubulations Suitable for distillation and fractionation Replacement condenser for Corning Organic Chemistry Kit 6949K 1 per pack / 1 per case Specification Details Brand PYREX® Manufacturer Corning Catalog Number / MPN 2155-14 Product Type Distilling Condenser Condenser Style Distilling / Drip Tip Top Joint 14/20 Standard Taper Bottom Joint 14/20 Standard Taper Overall Length 274mm approx. Cooling Jacket Length 190mm approx. Jacket Outside Diameter 28mm approx. Side Tubulation OD 10mm approx. Material Borosilicate Glass Quantity per Pack 1 Quantity per Case 1
