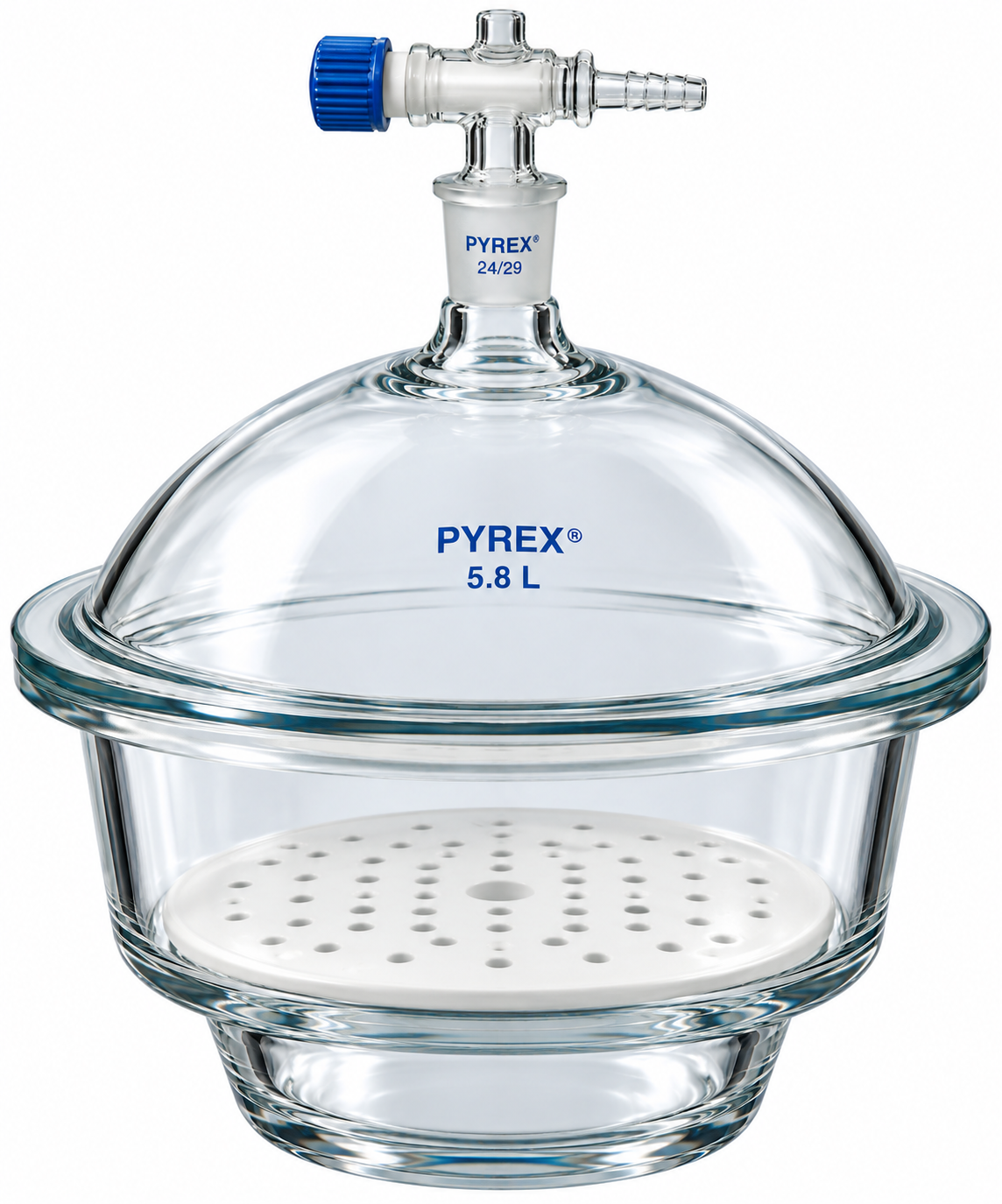

PYREX® 5.8L Large Top Vacuum Desiccator with 24-29 Standard Taper Stopcock

The PYREX® 5.8L Large Top Desiccator with 24/29 Standard Taper Stopcock, Product No. 3121-200, is a reusable glass vacuum desiccator designed for drying and storing moisture-sensitive materials under reduced pressure. It uses a rugged 24/29 Standard Taper stopcock with a tooled hose connection that serves as the vacuum inlet. The stopcock uses a PTFE plug and is designed for grease-free operation; loosening it disengages the plug from the glass to admit vacuum, while a half-turn closes the desiccator. Corning rates the unit for 1-atmosphere vacuum. Corning Key Features - 5.8L / 5800mL approximate bowl capacity - Large-top vacuum desiccator design - 24/29 Standard Taper stopcock - Tooled hose connection for vacuum line - PTFE stopcock plug - Grease-free stopcock operation - Tubulation outside diameter approximately 10–12mm - Rated for 1-atmosphere vacuum - Reusable laboratory glassware - Approximate chamber depth: 115mm - Approximate overall height: 296mm - Ground-flange internal diameter: 223.5mm - Recommended desiccator plate diameter: 190mm - Replacement bowl: 3081-200LO - Replacement cover: 3121-200CO - Replacement stopcock: 3121-STPK Specification Details Product Type Vacuum Desiccator Brand PYREX® Manufacturer Corning Product Number 3121-200 Capacity 5.8L / 5800mL Approx. Desiccator Style Vacuum Top Style Large Top Stopcock Joint 24/29 Standard Taper Stopcock Plug PTFE Tubulation O.D. Approx. 10–12mm Chamber Depth 115mm Approx. Overall Height 296mm Approx. Ground Flange I.D. 223.5mm Approx. Recommended Plate Diameter 190mm Vacuum Rating 1 Atmosphere Reusable Yes Quantity per Pack 1 Quantity per Case 1 Replacement Bowl 3081-200LO Replacement Cover 3121-200CO Replacement Stopcock 3121-STPK
