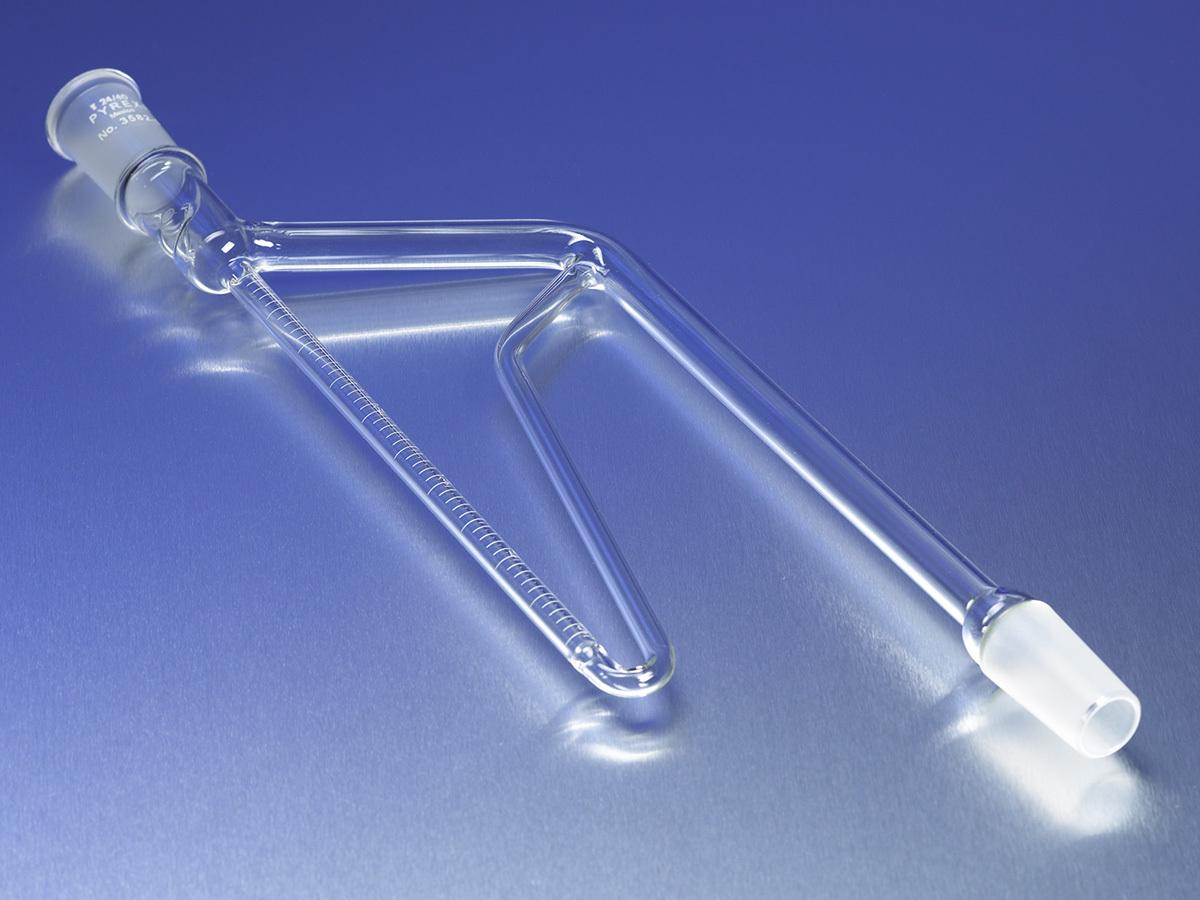

PYREX® 5 mL Oil Dilution Distilling Receiver with 24-40 Standard Taper Joints – 3582

The PYREX® 5 mL Oil Dilution Distilling Receiver (3582) is a specialized laboratory glassware apparatus designed for determining the amount of gasoline dilution in crankcase lubricating oils. Manufactured from high-quality PYREX® glass, this receiver features a graduated 5 mL collection section for measuring distilled liquid during oil dilution analysis. The receiver has a 24/40 outer standard taper joint at the top and a 24/40 inner standard taper joint on the sidearm, enabling connection to compatible laboratory distillation equipment. Its configuration helps keep heat-sensitive materials away from the hot base of the distillation flask. It is particularly suitable for petroleum testing laboratories, industrial quality control facilities, research institutions, and lubricant testing applications. Key Features - 5 mL capacity: Designed for small-volume distillate collection and measurement. - 0.1 mL graduations: Allows convenient reading of collected liquid volume. - PYREX® glass construction: Offers chemical resistance and thermal durability. - 24/40 standard taper joints: Provides compatible connections to suitable distillation glassware. - Specialized receiver design: Helps separate heat-sensitive materials from direct heating areas. - Oil dilution testing: Intended for evaluating gasoline contamination in crankcase lubricating oils. - Laboratory-grade construction: Suitable for routine industrial and analytical testing. Specification Details Manufacturer Corning Brand PYREX® Product Code 3582 Product Type Oil Dilution Distilling Receiver Material PYREX® Glass Capacity 5 mL Approximate Height 380 mm Graduation Increment 0.1 mL Top Joint 24/40 Outer Standard Taper Sidearm Joint 24/40 Inner Standard Taper Reference Test Method ASTM D322 Quantity per Pack 1 Piece Quantity per Case 1 Piece Main Application Gasoline dilution testing in crankcase oils
