PYREX® 2800-300 300mm West Condenser 24-40 Drip Tip

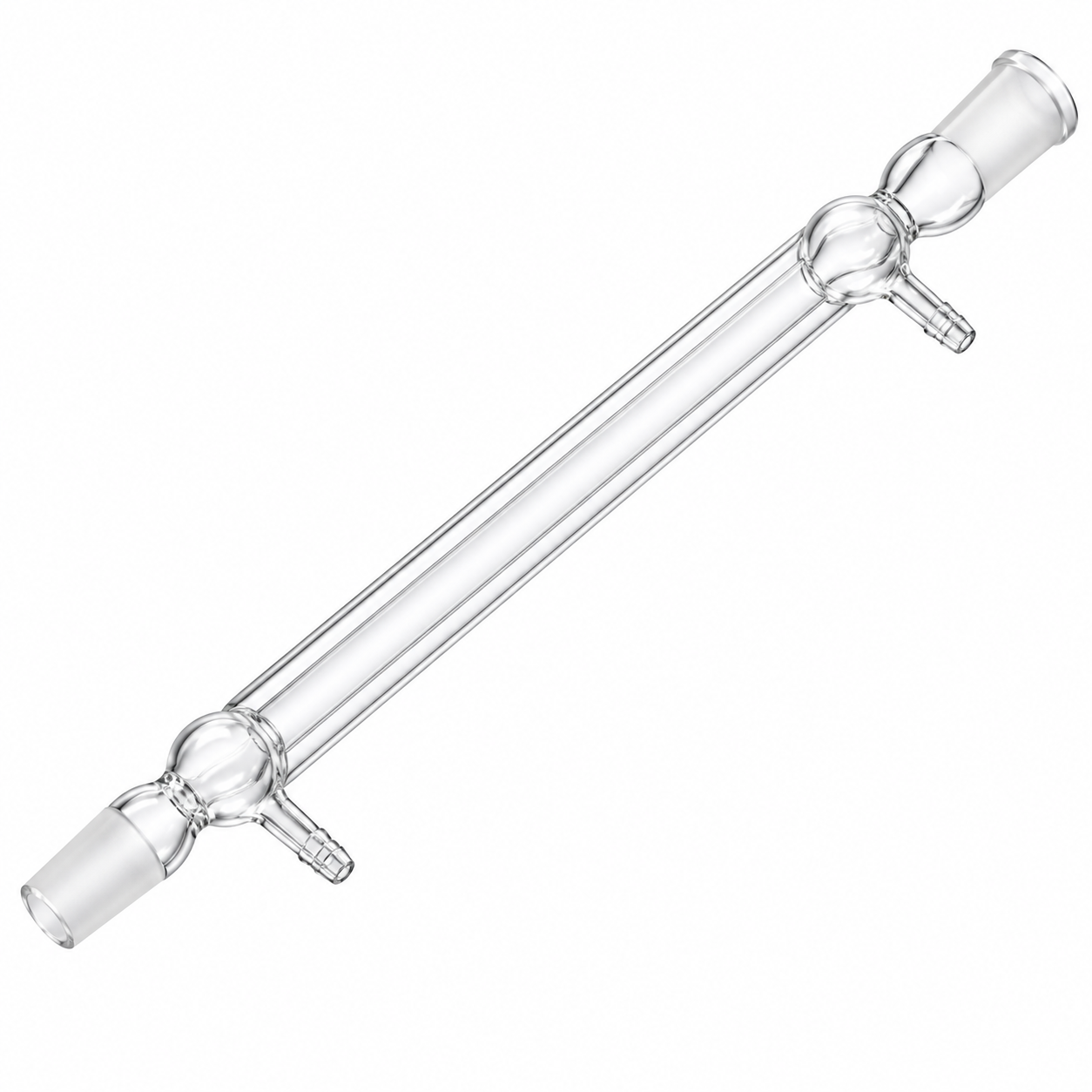

The PYREX® 2800-300 300mm West Condenser is a laboratory glass condenser designed for general condensation applications where efficient cooling of vapours is required. This model features 24/40 Standard Taper joints at both ends, with an outer joint at the top and an inner joint at the bottom. The bottom joint incorporates a drip-tip configuration, allowing condensed liquid to flow efficiently from the condenser into the connected receiving vessel. The condenser incorporates two coolant tubulations positioned on the same side, a design Corning states helps reduce the likelihood of breakage during handling and connection of cooling-water tubing. The tubulations have an approximate outside diameter of 10 mm. The 2800-300 has an approximate overall height of 450 mm and uses 24/40 Standard Taper joints at both the top and bottom. Corning supplies the product individually with 1 condenser per pack and 4 condensers per case. Its PYREX borosilicate glass construction makes the condenser suitable for professional chemistry laboratories, research laboratories, universities, pharmaceutical laboratories, industrial laboratories and other facilities performing condensation, distillation and reflux-related procedures. Key Features Genuine PYREX® / Corning laboratory glassware Manufacturer product number 2800-300 West-style laboratory condenser Nominal 300 mm condenser/jacket length 24/40 Standard Taper outer joint at the top 24/40 Standard Taper inner joint at the bottom Bottom drip-tip configuration Approximate overall height of 450 mm Approximate coolant tubulation O.D. of 10 mm Coolant tubulations positioned on the same side to help reduce breakage Straight condenser configuration PYREX borosilicate glass construction Designed for general laboratory condensation applications Suitable for laboratory distillation and vapour-condensation setups Supplied 1 piece per pack 4 pieces per case Specification Details Brand PYREX® Manufacturer Corning Product Number / MPN 2800-300 Product Type West Condenser Condenser Style West Nominal Length 300 mm Jacket Length 300 mm nominal Approximate Overall Height 450 mm Top Joint 24/40 Standard Taper Outer Joint Bottom Joint 24/40 Standard Taper Inner Joint Joint Size 24/40 Bottom Configuration Drip Tip Tubulation Arrangement Same side Tubulation Outside Diameter Approx. 10 mm Material PYREX borosilicate glass Qty. per Pack 1 Qty. per Case 4 Application General condensation applications Manufacturer Catalog Number 2800-300
