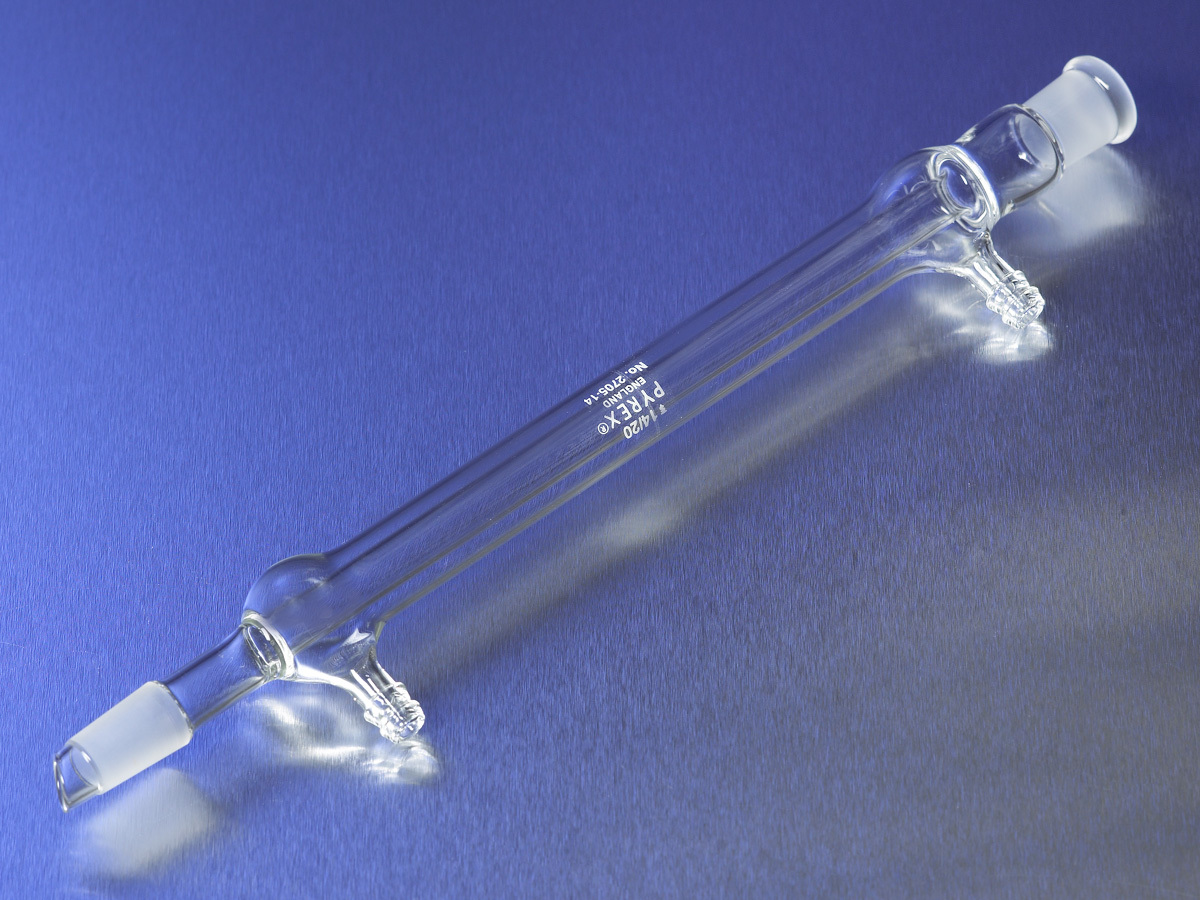

PYREX 2705-19 West Condenser with 19-22 Inner and Outer Joints

The PYREX 2705-19 West Condenser is a compact water-cooled laboratory condenser designed for general condensation applications. The West design uses a narrow straight inner condensation tube surrounded by a water jacket, providing efficient heat transfer while maintaining a relatively small coolant volume. This model features a 19/22 Standard Taper outer joint at the top and a 19/22 Standard Taper inner joint with drip tip at the bottom. Both coolant tubulations are positioned on the same side, a design Corning states helps reduce the risk of breakage. Key Features Genuine PYREX® / Corning laboratory glassware Catalog number 2705-19 West-style water-cooled condenser 190mm cooling jacket 19/22 outer Standard Taper top joint 19/22 inner Standard Taper bottom joint Integrated bottom drip tip Coolant tubulations positioned on the same side Approx. 10mm tubulation O.D. Approx. 283mm overall height Designed for general laboratory condensation Replacement component for compatible organic chemistry kits 2 per pack / 4 per case Specification Details Brand PYREX® Manufacturer Corning Catalog Number / MPN 2705-19 Condenser Style West Jacket Length 190mm Top Joint 19/22 Standard Taper Outer Bottom Joint 19/22 Standard Taper Inner Bottom Design Drip Tip Tubulation O.D. Approx. 10mm Overall Height Approx. 283mm Cooling Water-Cooled Qty./Pack 2 Qty./Case 4 Application General Condensation
