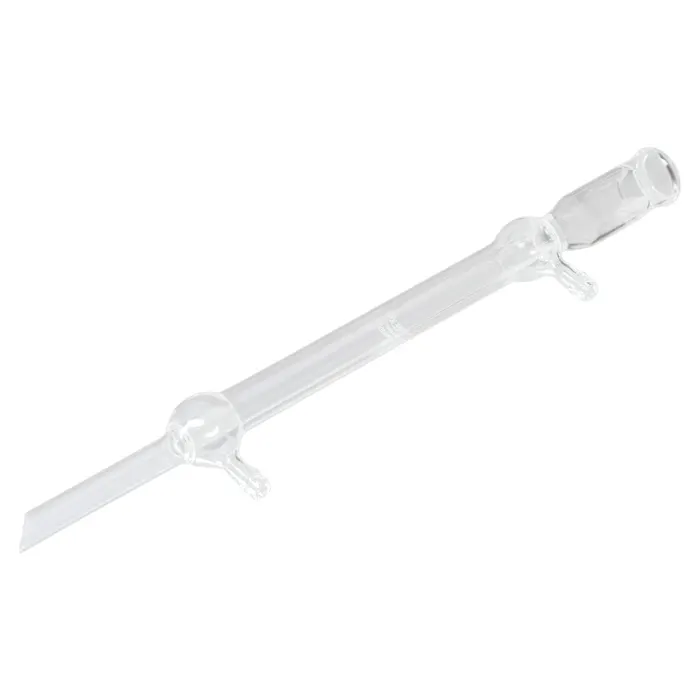

PYREX 2705-14 West Condenser with 14-20 Inner and Outer Joints

The PYREX 2705-14 West Condenser is a compact water-cooled laboratory condenser designed for general condensation applications. Its West-style construction uses a relatively narrow cooling jacket around a straight inner vapor tube, providing efficient cooling while maintaining a compact profile. The condenser has a 14/20 Standard Taper outer joint at the top and a 14/20 Standard Taper inner joint with drip tip at the bottom. The coolant tubulations are positioned on the same side, a design Corning states helps reduce breakage. Key Features Genuine PYREX® / Corning laboratory glassware Catalog number 2705-14 West-style straight condenser 190mm cooling jacket 14/20 Standard Taper outer top joint 14/20 Standard Taper inner bottom joint Integrated lower drip tip Approx. 10mm O.D. coolant tubulations Tubulations positioned on the same side Approx. 283mm overall height Suitable for general laboratory condensation 1 per pack / 1 per case Specification Details Brand PYREX® Manufacturer Corning Catalog Number 2705-14 Condenser Style West Jacket Length 190mm Approx. Jacket O.D. 18mm Top Joint 14/20 Standard Taper Outer Bottom Joint 14/20 Standard Taper Inner Bottom Configuration Drip Tip Tubulation O.D. Approx. 10mm Overall Height Approx. 283mm Qty./Pack 1 Qty./Case 1
