PYREX 2560-500 500mm Graham Condenser with 24-40 Joints

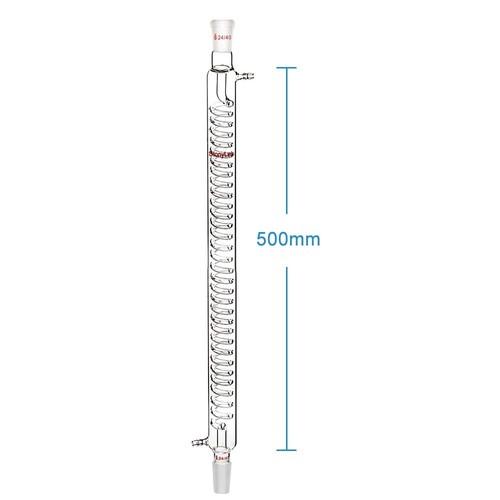

The PYREX 2560-500 Graham Condenser is a long-form laboratory glass condenser designed with an internal coiled vapor pathway that provides a high condensation surface area per unit length of cooling jacket. The condenser has a 24/40 Standard Taper outer joint at the top and a 24/40 Standard Taper inner joint at the bottom with a drip tip. Corning describes the Graham series as being primarily used for vacuum distillation. Key Features Genuine PYREX® / Corning laboratory glassware Catalog number 2560-500 Graham internal coil configuration 41mm jacket O.D. 500mm jacket length 24/40 outer top joint 24/40 inner bottom joint Integrated lower drip tip Approx. 10mm O.D. coolant tubulations Approx. 650mm overall height High condensation surface area per unit jacket length Primarily designed for vacuum distillation 1 condenser per pack 4 condensers per case Specification Details Brand PYREX® Manufacturer Corning Catalog Number 2560-500 Condenser Type Graham Jacket O.D. 41mm Jacket Length 500mm Top Joint 24/40 Standard Taper Outer Bottom Joint 24/40 Standard Taper Inner Bottom Design Drip Tip Tubulation O.D. Approx. 10mm Overall Height Approx. 650mm Internal Design Coiled Vapor Pathway Primary Application Vacuum Distillation Qty./Pack 1 Qty./Case 4
