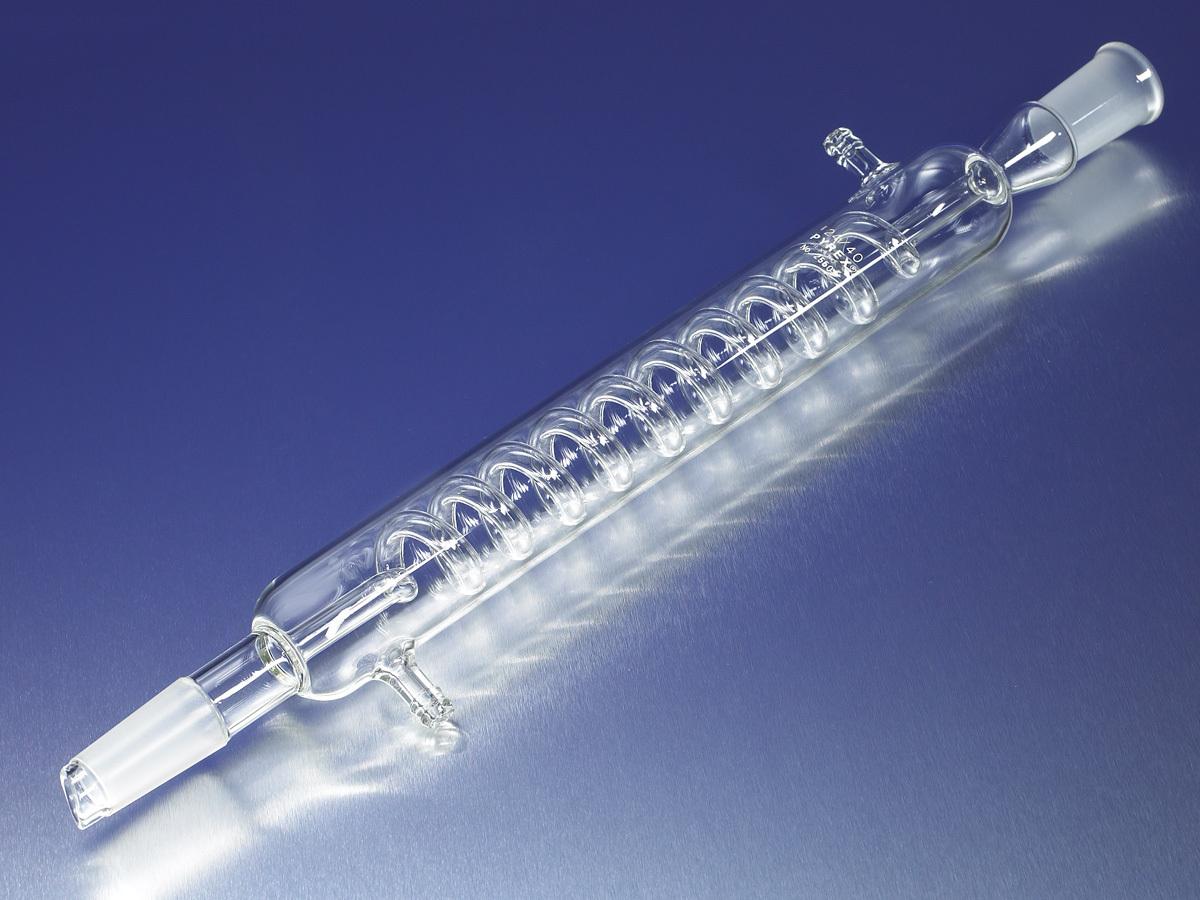

PYREX 2560-400 400mm Graham Condenser with 24-40 Joints

The PYREX 2560-400 Graham Condenser is a laboratory glass condenser designed with an internal coiled vapor pathway that provides a high condensation surface area per unit length of cooling jacket. The condenser features a 24/40 Standard Taper outer joint at the top and a 24/40 inner joint at the bottom with a drip tip. Corning identifies this Graham configuration as primarily intended for vacuum distillation applications. Key Features Genuine PYREX® / Corning laboratory glassware Catalog number 2560-400 Graham internal coil configuration 41mm jacket outside diameter 400mm jacket length 24/40 outer Standard Taper top joint 24/40 inner Standard Taper bottom joint Integrated bottom drip tip Approx. 10mm O.D. tubulations Approx. 550mm overall height High condensation surface area per unit jacket length Primarily designed for vacuum distillation 1 per pack 4 per case Specification Details Brand PYREX® Manufacturer Corning Catalog Number 2560-400 Condenser Type Graham Inner Joint 24/40 Outer Joint 24/40 Top Connection 24/40 Outer Joint Bottom Connection 24/40 Inner Joint with Drip Tip Jacket O.D. 41mm Jacket Length 400mm Approx. Overall Height 550mm Tubulation O.D. Approx. 10mm Internal Design Coiled Vapor Pathway Primary Application Vacuum Distillation Qty./Pack 1 Qty./Case 4
