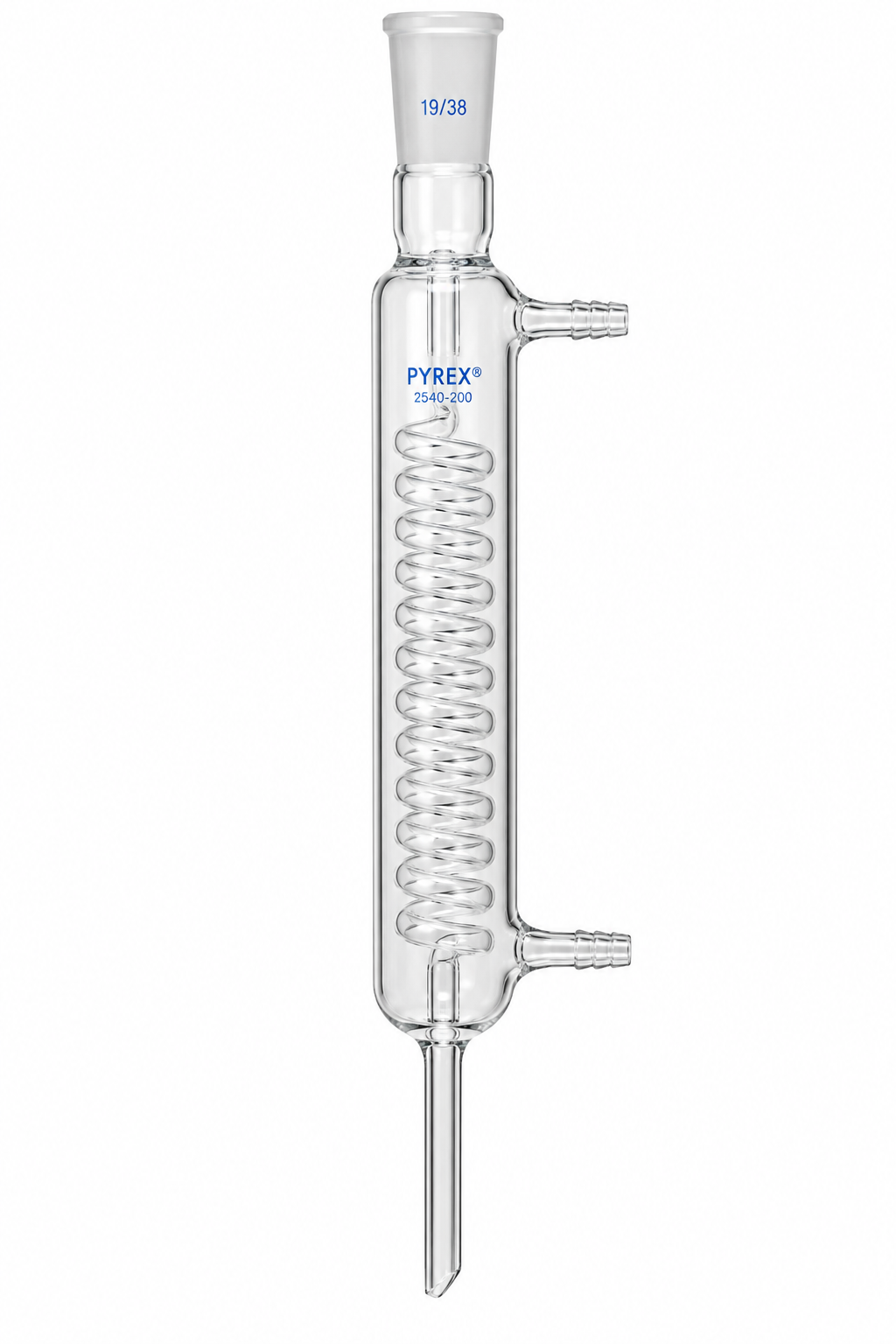

PYREX 2540-200 200mm Graham Condenser with 19-38 Outer Joint

The PYREX 2540-200 Graham Condenser is a laboratory glass condenser designed with an internal coiled vapor pathway that provides a high condensation surface area within a relatively compact jacket. It features a 200mm-long cooling jacket, a 19/38 Standard Taper outer joint at the top, and a plain drip tip at the bottom. Corning identifies this condenser primarily for use in distillation assemblies. Key Features Genuine PYREX® / Corning laboratory glassware Catalog number 2540-200 Graham coil-style condenser 41mm jacket outside diameter 200mm jacket length 19/38 Standard Taper outer top joint Plain lower drip tip Approx. 10mm O.D. coolant tubulations Approx. 350mm overall height High condensation surface area per unit length Borosilicate glass construction Primarily designed for laboratory distillation 1 per pack / 1 per case Specification Details Brand PYREX® Manufacturer Corning Catalog Number / MPN 2540-200 Condenser Type Graham Jacket O.D. 41mm Jacket Length 200mm Top Joint 19/38 Standard Taper Outer Bottom Plain Drip Tip Tubulation O.D. Approx. 10mm Overall Height Approx. 350mm Material Borosilicate Glass Primary Application Distillation Qty./Pack 1 Qty./Case 1
