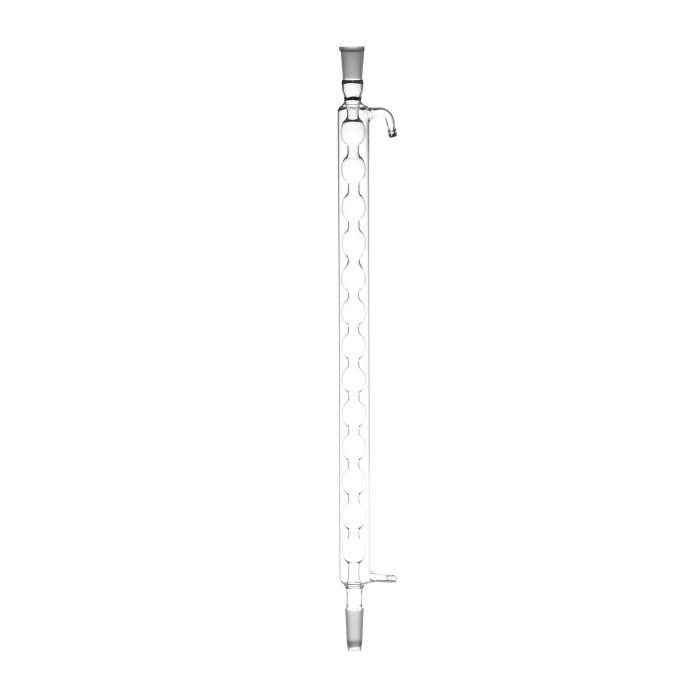

PYREX 2480-600 600mm Allihn Condenser with 29-42 Joints

The PYREX 2480-600 Allihn Condenser is a long-form water-cooled laboratory condenser designed to provide greater condensation surface area than a corresponding Liebig condenser. Its internal vapor pathway incorporates 10 bulbs, increasing the available surface for heat exchange and efficient vapor condensation. Corning specifies an outer 29/42 Standard Taper joint at the top and an inner 29/42 joint at the bottom with a drip tip. It is suitable for reflux and can also be used in vacuum distillation applications. Key Features Genuine PYREX® / Corning glassware Catalog number 2480-600 10-bulb Allihn configuration 41mm jacket outside diameter 600mm cooling-jacket length 29/42 outer joint at top 29/42 inner joint at bottom Integrated lower drip tip Approx. 10mm O.D. coolant tubulations Approx. 750mm overall height Greater condensation area than corresponding Liebig design Suitable for reflux and vacuum distillation 1 per case Specification Details Brand PYREX® Manufacturer Corning Catalog Number 2480-600 Condenser Type Allihn Number of Bulbs 10 Jacket O.D. 41mm Jacket Length 600mm Top Joint 29/42 Outer Bottom Joint 29/42 Inner Bottom Design Drip Tip Tubulation O.D. Approx. 10mm Overall Height Approx. 750mm Material Laboratory Borosilicate Glass Quantity/Case 1
