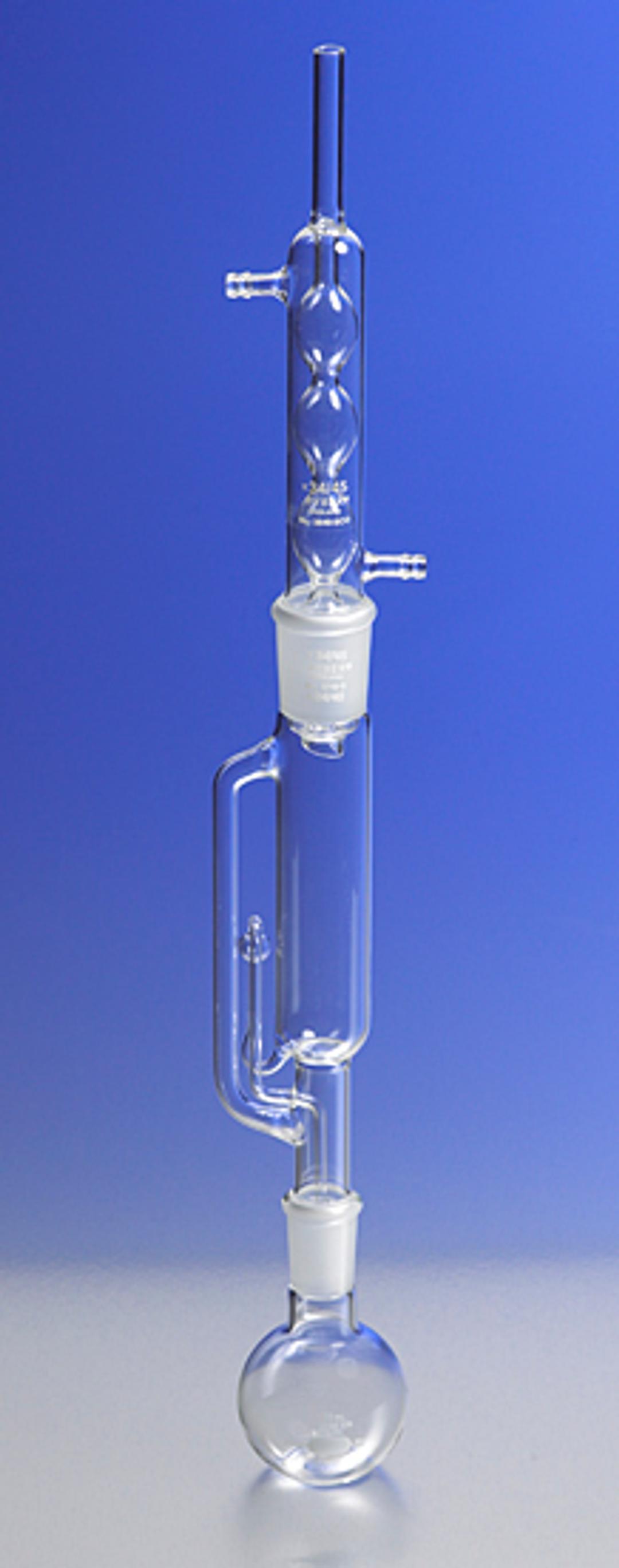

PYREX® 1L Complete Soxhlet Extractor System with Allihn Condenser – 3840-XL

The PYREX® 1L Complete Soxhlet Extractor System with Allihn Condenser is a premium laboratory extraction apparatus designed for continuous solvent extraction of soluble substances from solid samples. Manufactured from durable PYREX® laboratory glass, the system comprises a Soxhlet extractor body, an Allihn condenser, and a 1000mL boiling flask, connected using precision standard taper joints. The apparatus operates through repeated solvent evaporation, condensation, extraction, and automatic siphoning cycles. Heated solvent vapour rises into the condenser, where it cools and returns to the extractor chamber. Once the liquid reaches the siphon level, it automatically returns to the boiling flask, carrying the extracted compounds. The system features a 71/60 standard taper joint between the condenser and extractor body and a 29/42 standard taper joint between the extractor body and boiling flask. Its condenser includes 10mm outside diameter water connections for connection to a suitable laboratory cooling-water supply. The apparatus is suitable for chemical research, pharmaceutical analysis, food and agricultural testing, environmental laboratories, universities, and industrial quality-control applications. Key Features - Complete Soxhlet Extraction System: Includes the extractor body, Allihn condenser, and boiling flask. - 1L Nominal Capacity: Suitable for continuous laboratory solvent extraction procedures. - PYREX® Laboratory Glass Construction: Provides chemical and thermal resistance for appropriate laboratory use. - Allihn Condenser: Features a bulb-shaped internal condensation pathway for efficient solvent vapour cooling. - Continuous Solvent Extraction: Supports repeated extraction cycles without manually replacing solvent. - Integrated Siphon Mechanism: Automatically transfers solvent and dissolved compounds into the boiling flask. - 71/60 Standard Taper Upper Joint: Connects the Soxhlet extractor body to its condenser. - 29/42 Standard Taper Lower Joint: Connects the extractor to the boiling flask. - 10mm Cooling-Water Connections: Supports circulation of cooling water through the condenser. - Replaceable Glassware Components: Compatible replacement components are available for the extractor, condenser, and flask. Specification Details Brand PYREX® Manufacturer Corning Product Code 3840-XL Product Type Complete Soxhlet Extraction Apparatus Nominal Capacity 1000mL (1L) Material PYREX® Laboratory Glass Condenser Type Allihn Extractor Top Joint 71/60 Outer Standard Taper Extractor Bottom Joint 29/42 Inner Standard Taper Condenser Bottom Joint 71/60 Inner Standard Taper Boiling Flask Joint 29/42 Outer Standard Taper Condenser Tubulation Outer Diameter Approximately 10mm Extractor Body Length Approximately 319mm Overall Assembled Height Approximately 880mm Distance from Siphon to Plate Approximately 13mm Flask Style Boiling Flask Extraction Method Continuous Solvent Extraction Manufacturer Pack Quantity 1 Set Manufacturer Case Quantity 1 Set Reusability Reusable
