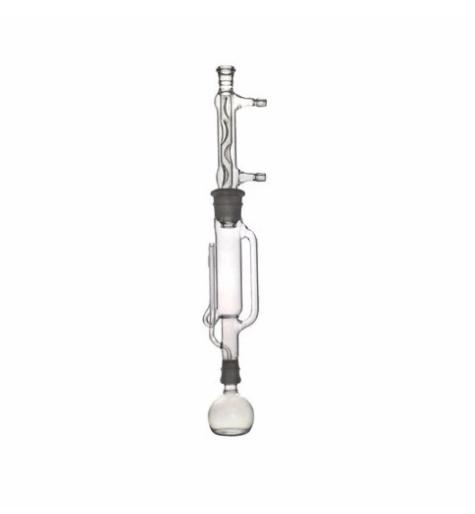

PYREX® 125mL Complete Soxhlet Extraction Apparatus with Allihn Condenser – 3840-S

The PYREX® 125mL Complete Soxhlet Extraction Apparatus with Allihn Condenser is a high-quality laboratory extraction system designed for continuous solvent extraction of soluble compounds from solid samples. Manufactured from durable PYREX® borosilicate glass, this complete extraction apparatus consists of a Soxhlet extractor body, a four-bulb Allihn condenser, and a boiling flask, connected through precision standard taper joints. The apparatus operates through repeated solvent evaporation, condensation, extraction, and automatic siphoning cycles. This process enables efficient extraction of oils, fats, and other solvent-soluble substances from solid materials. The Soxhlet extractor features a 34/45 standard taper outer joint at the top and a 24/40 standard taper inner joint at the bottom. The matching Allihn condenser incorporates a 34/45 inner joint, while the boiling flask features a 24/40 outer joint. Its four-bulb condenser provides an increased surface area for vapour condensation, supporting continuous solvent recycling throughout extraction. The PYREX® 3840-S is suitable for pharmaceutical laboratories, food testing facilities, chemical research centres, environmental laboratories, universities, and industrial quality-control applications. Key Features - Complete Soxhlet Extraction System: Includes Soxhlet extractor body, Allihn condenser, and boiling flask. - Premium PYREX® Borosilicate Glass: Provides excellent thermal and chemical resistance for laboratory procedures. - 125mL System Capacity: Suitable for small-scale continuous solvent extraction applications. - Four-Bulb Allihn Condenser: Provides an increased condensation surface area for efficient solvent recovery. - Continuous Extraction Process: Supports repeated solvent evaporation, condensation, sample extraction, and siphoning. - 34/45 Standard Taper Top Joint: Provides a secure connection between the extractor and condenser. - 24/40 Standard Taper Bottom Joint: Connects the extractor body to the compatible boiling flask. - Integrated Siphon Mechanism: Enables automatic return of solvent and extracted compounds to the boiling flask. - 10mm Condenser Tubulations: Suitable for connection to compatible laboratory cooling-water tubing. - Reusable Glass Construction: Designed for repeated laboratory extraction procedures. Specification Details Brand PYREX® Manufacturer Corning Product Code 3840-S Product Type Complete Soxhlet Extraction Apparatus Nominal System Capacity 125mL Material Borosilicate Glass Condenser Type Allihn Condenser Number of Condenser Bulbs 4 Extractor Top Joint 34/45 Outer Standard Taper Extractor Bottom Joint 24/40 Inner Standard Taper Condenser Bottom Joint 34/45 Inner Standard Taper Flask Joint 24/40 Outer Standard Taper Extractor Body Length Approximately 192mm Overall Assembled Height Approximately 655mm Distance from Siphon to Plate Approximately 62mm Condenser Tubulation Outer Diameter Approximately 10mm Flask Type Boiling Flask Extraction Method Continuous Solvent Extraction Manufacturer Pack Quantity 1 Set Manufacturer Case Quantity 1 Set Reusability Reusable
