PLZMD-01 Operating Lamp

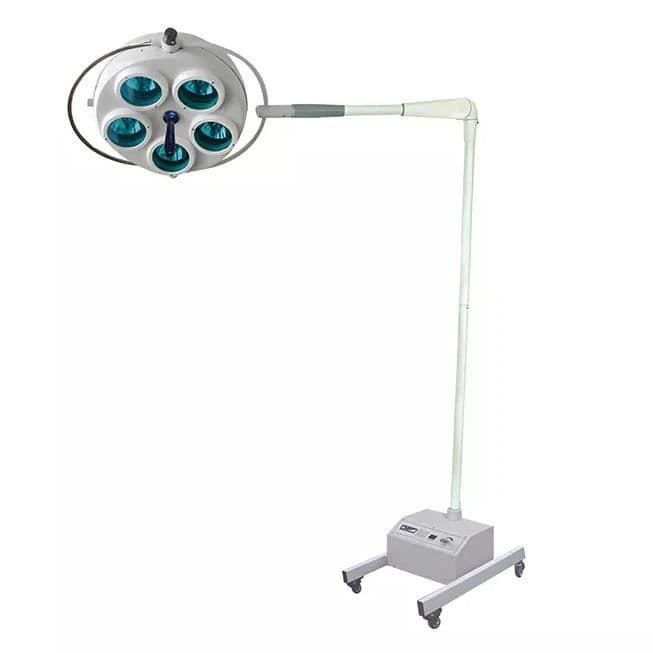

The Axiom PLZMD-01 Operating Lamp is a high-intensity surgical lighting system designed to provide focused illumination for operating theatres, surgical suites and procedure rooms. The lamp delivers illumination of ≥100,000 lux with a color temperature of 4000 ±500 K. Its adjustable light field ranges from Ø100–250 mm, while an illumination depth of ≥600 mm supports clear visualization during surgical procedures. The unit has a 600 mm lamp-head diameter, an 880 mm height-adjustment range, and uses a 24V/150W halogen bulb. It is classified as Category I Type B for electrical safety according to the specification you supplied. Key Features High-intensity surgical operating lamp Illumination of ≥100,000 lux 600 mm diameter lamp head Color temperature of 4000 ±500 K Adjustable light field of Ø100–250 mm Illumination depth of ≥600 mm Vertical height adjustment of 880 mm Uses 24V/150W halogen bulb Temperature rise limited to ≤18°C Designed for focused surgical-field illumination Suitable for major and minor procedures Category I Type B safety classification Specification Details Brand Axiom Model / Art. No. PLZMD-01 Product Operating Lamp Illumination ≥100,000 Lux Major Lamp Illumination ≥100,000 Lux Auxiliary Lamp Illumination ≥100,000 Lux Power Consumption 200W / 400W depending on configuration Color Temperature 4000 ±500 K Temperature Rise ≤18°C Light Field Diameter Ø100–250 mm Illumination Depth ≥600 mm Height Adjustment Range 880 mm Lamp Head Diameter Ø600 mm Bulb Type Halogen Bulb Rating 24V / 150W Safety Classification Category I Type B Primary Application Surgical Illumination
