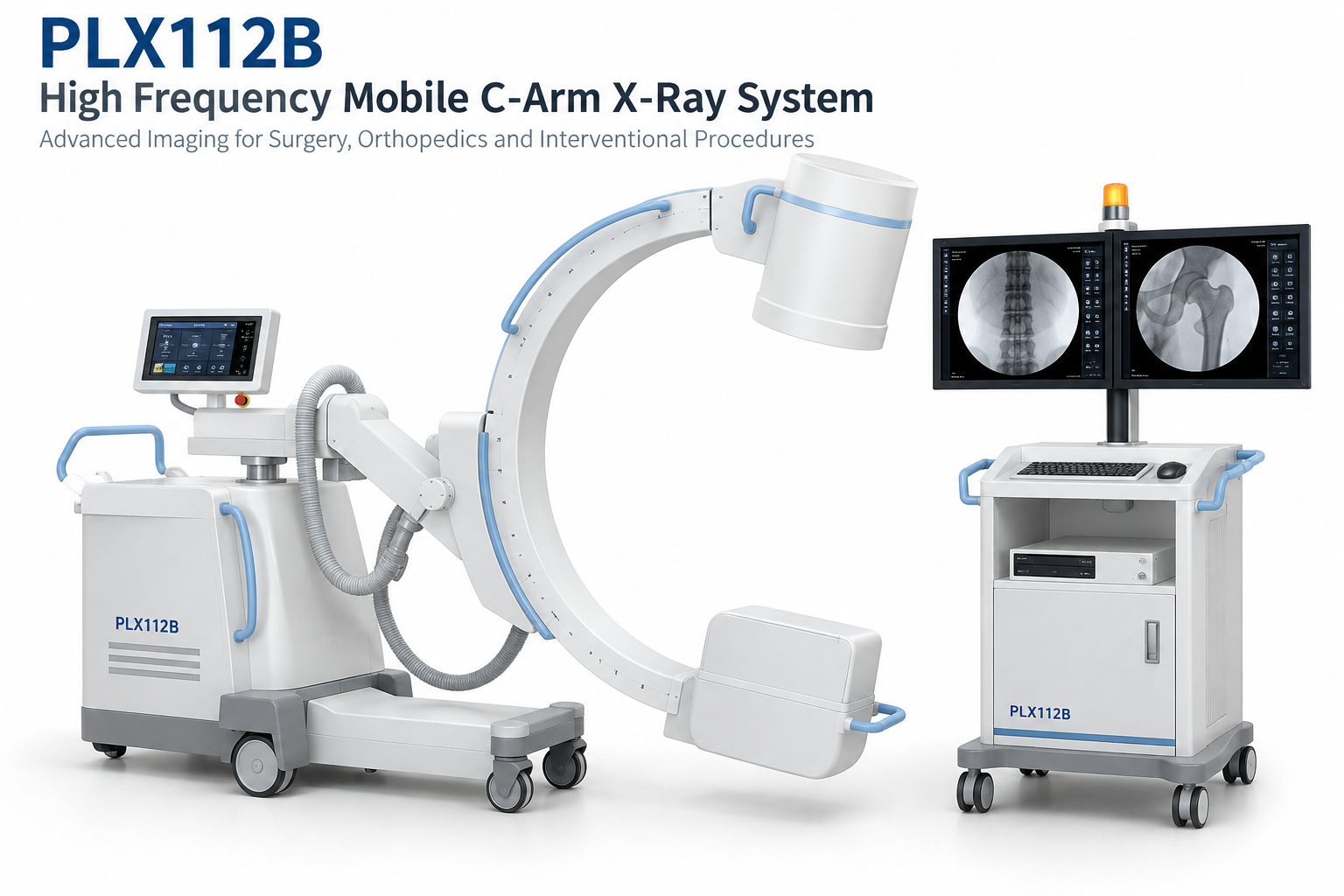

PLX112B High Frequency Mobile C-Arm X-Ray System 5kW

The PLX112B High Frequency Mobile C-Arm X-Ray System is designed for real-time fluoroscopy and radiographic imaging in operating theatres, orthopedic procedures and interventional applications. It combines a 5kW high-frequency generator with continuous fluoroscopy, pulse fluoroscopy and photography modes. Published PLX112B documentation confirms a 5kW output and a 40–120kV operating range for fluoroscopy and photography. The system supports continuous fluoroscopy at 0.3–4mA, pulse fluoroscopy up to 30mA, and photography with tube current up to 100mA. The photography exposure range extends from 1 to 180mAs, providing flexibility for different clinical procedures. Key Features High-frequency mobile C-arm X-ray system 5kW maximum output power High-frequency inverter technology Continuous fluoroscopy mode Pulse fluoroscopy mode Radiographic photography mode Tube voltage range of 40–120kV Continuous fluoroscopy current of 0.3–4mA Pulse fluoroscopy current up to 30mA Photography current up to 100mA Exposure range of 1–180mAs Dual-focus X-ray tube configuration Suitable for orthopedic and surgical imaging Mobile C-arm design for operating-room use Supports real-time image guidance Specification Details Model PLX112B Art. No. XRY-112C Product Type High Frequency Mobile C-Arm X-Ray System Power Output 5kW Inverter Frequency ≥40kHz Tube Voltage 40–120kV Continuous Fluoroscopy Current 0.3–4mA Pulse Fluoroscopy Voltage 40–120kV Pulse Fluoroscopy Current 0.3–30mA Photography Voltage 40–120kV Photography Current 25–100mA Photography Exposure 1–180mAs Tube Focus Dual Focus Power Supply 220V single phase 50/60Hz Maximum Output Power 5kW
