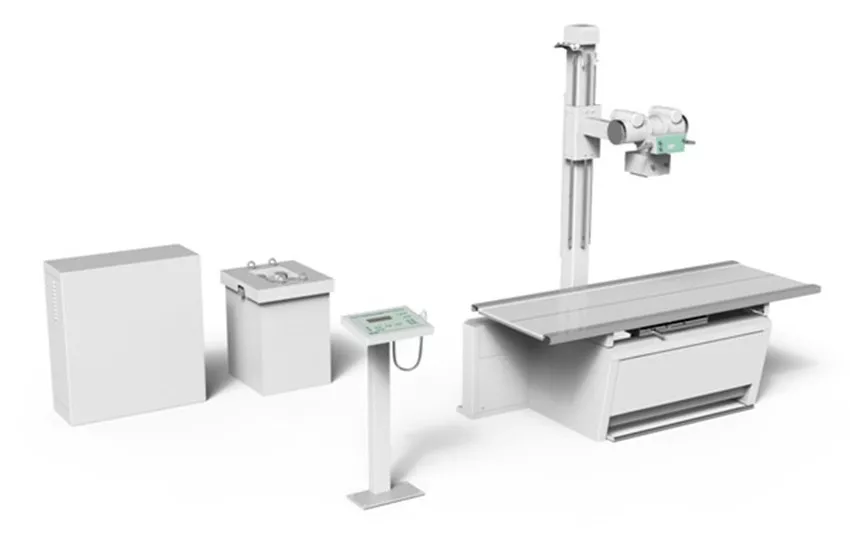

PLD5000B 500mA X-Ray Radiography System 40kW

The PLD5000B 500mA X-Ray Radiography System is a high-capacity diagnostic imaging system designed for general radiography in hospitals, clinics and diagnostic centres. It delivers a maximum 40kW power output, with tube current adjustable from 32mA to 500mA and tube voltage from 44kV to 125kV. The system uses a rotary-anode dual-focus X-ray tube with 1.0mm small focus and 2.0mm large focus, together with a tube thermal capacity of 140kJ. The PLD5000B includes a large radiographic table with longitudinal and transverse movement, adjustable source-to-image distance and cassette/grid-holder movement. These features support a wide range of routine radiographic examinations. Key Features 500mA diagnostic X-ray system Maximum output power of 40kW Rotary-anode X-ray tube Dual-focus configuration Small focus 1.0mm Large focus 2.0mm Tube current range 32–500mA Tube voltage range 44–125kV Exposure time 0.020–4.000 seconds Tube thermal capacity 140kJ Movable radiographic tabletop X-ray tube assembly rotation ±90° Pillar rotation 4 × 90° Adjustable SID from 500–1280mm Supports film/cassette sizes up to 14 × 17 inches Optional upright Bucky/chest stand Specification Details Model PLD5000B Product Type 500mA X-Ray Radiography System Output Power 40kW Inverter Frequency 50Hz X-Ray Tube Rotary Anode Dual Focus Large Focus 2.0mm Small Focus 1.0mm Tube Thermal Capacity 140kJ Tube Current 32–500mA Tube Voltage 44–125kV Exposure Time 0.020–4.000 sec Power Supply 380V ±38V 50/60Hz Required Capacity ≥40kVA Table Size 2000 × 760mm Table Height ≤700mm Transverse Table Movement ≥220mm Longitudinal Table Movement ≥900mm Grid Cassette Holder Movement ≥500mm X-Ray Tube Assembly Rotation ±90° Pillar Rotation 4 × 90° SID 500–1280mm Pillar Movement Along Table ≥1300mm Film Size 5 × 7 to 14 × 17 inches Bucky Stand Vertical Movement 470–1468mm
