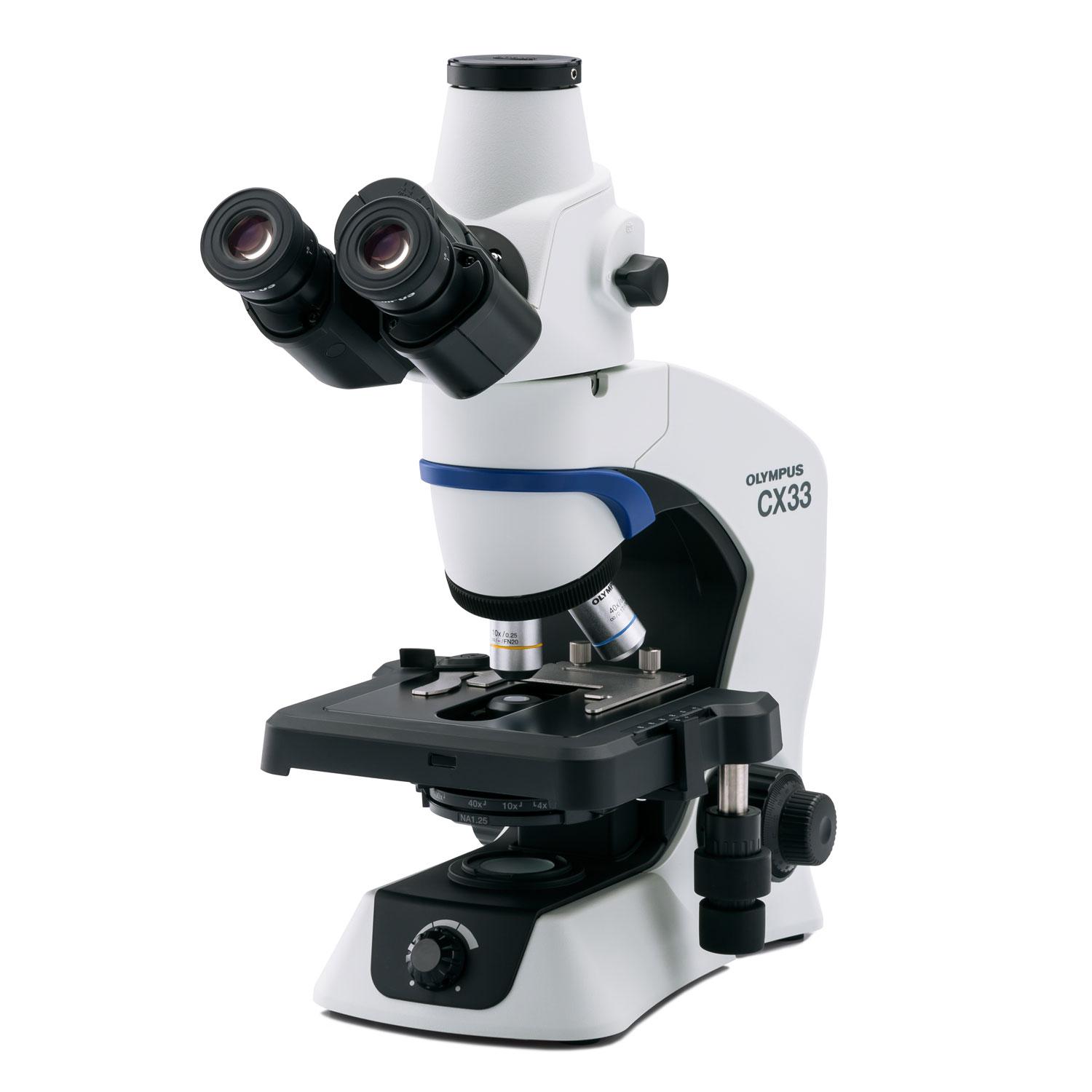

Olympus CX33 Trinocular Biological Microscope with LED Illumination

The Olympus CX33 Biological Microscope is a high-quality upright clinical microscope designed for routine brightfield microscopy in hospitals, diagnostic laboratories, universities, research centres, and medical training institutions. It features an infinity optical system, ergonomic low-positioned controls, long-life LED illumination, a mechanical X-Y stage, plan achromat objectives, and a trinocular observation head with a dedicated camera path for digital imaging. The CX33 is designed to support prolonged routine microscopy while maintaining clear, flat-field images and comfortable operation. Key Features - Brand: Olympus / Evident - Model: CX33 - Trinocular biological microscope - Infinity-corrected optical system - Brightfield observation - Darkfield capability with suitable accessories - Long-life LED illumination - LED life up to approximately 60,000 hours - Fixed Köhler illumination - Ergonomic low-position focusing controls - Low-position mechanical stage - Fixed 4-position revolving nosepiece - Plan achromat objectives - FN20 field of view - 30° inclined trinocular tube - Adjustable interpupillary distance - Dedicated camera light path - Coarse focus stopper for specimen protection - Suitable for routine clinical and laboratory microscopy Specification Details Product Name Olympus CX33 Biological Microscope Brand Olympus / Evident Model CX33 Microscope Type Upright Biological Microscope Optical System Infinity Optical System Observation Brightfield / Optional Darkfield Observation Head Trinocular Field Number 20 Nosepiece Fixed 4-Position Stage Travel X: 76 mm / Y: 52 mm Fine Focus Graduation 2.5 µm Fine Focus Travel per Rotation 0.3 mm Total Focus Travel 15 mm Condenser Abbe Condenser Condenser NA 1.25 Illumination Built-In LED Power Input 100–240 V AC Adapter Dimensions Approx. 211 × 397 × 430 mm Weight Approx. 7.0 kg Installation Benchtop
