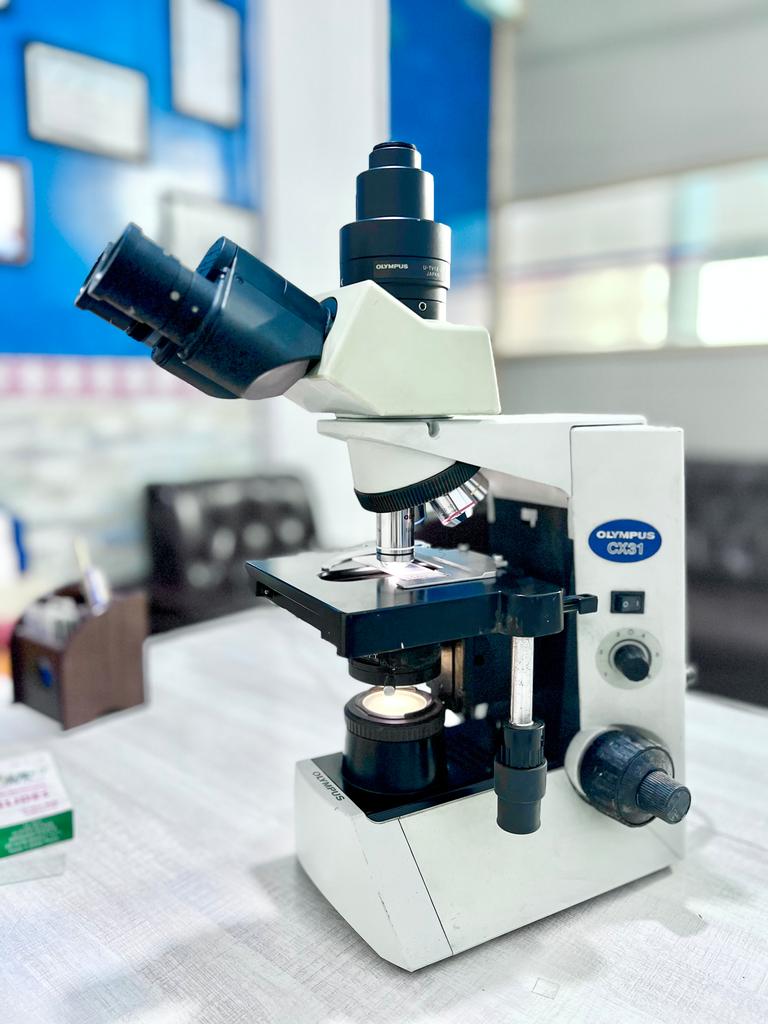

Olympus CX31 Trinocular Biological Microscope

The Olympus CX31 Trinocular Biological Microscope is a professional upright laboratory microscope designed for routine brightfield observation with the added capability of camera-based imaging and documentation through a trinocular observation head. The CX31 platform uses Olympus UIS2 Universal Infinity-Corrected optical technology, providing bright, clear images with good field flatness. Its trinocular configuration provides two eyepieces for direct observation together with a dedicated photo/video optical path that can be connected to a compatible microscope camera and adapter. Olympus documentation specifies a fixed 50% binocular / 50% photo-video light path for the trinocular configuration. A typical configuration uses 10X eyepieces with Plan Achromat 4X, 10X, 40X and 100X oil-immersion objectives, providing approximately 40X, 100X, 400X and 1000X total magnification. The actual objectives supplied with the Healthhub unit should be confirmed before publishing. The CX31 is suitable for clinical laboratories, medical laboratories, research institutions, universities, teaching laboratories and other facilities requiring routine microscopy with digital imaging capability. Key Features Trinocular biological microscope UIS2 infinity-corrected optical system Brightfield observation Dedicated photo/video camera port 50% binocular / 50% photo-video light path 10X eyepieces Up to approximately 1000X magnification with typical objective configuration Plan Achromat objectives Fixed quadruple revolving nosepiece 30° inclined observation tube 48–75 mm interpupillary adjustment Mechanical stage Double slide specimen holder Coaxial coarse and fine focusing Abbe condenser Built-in aperture iris diaphragm Built-in transmitted Köhler illumination 6V 30W halogen lamp Camera/documentation capability with compatible adapter and camera
