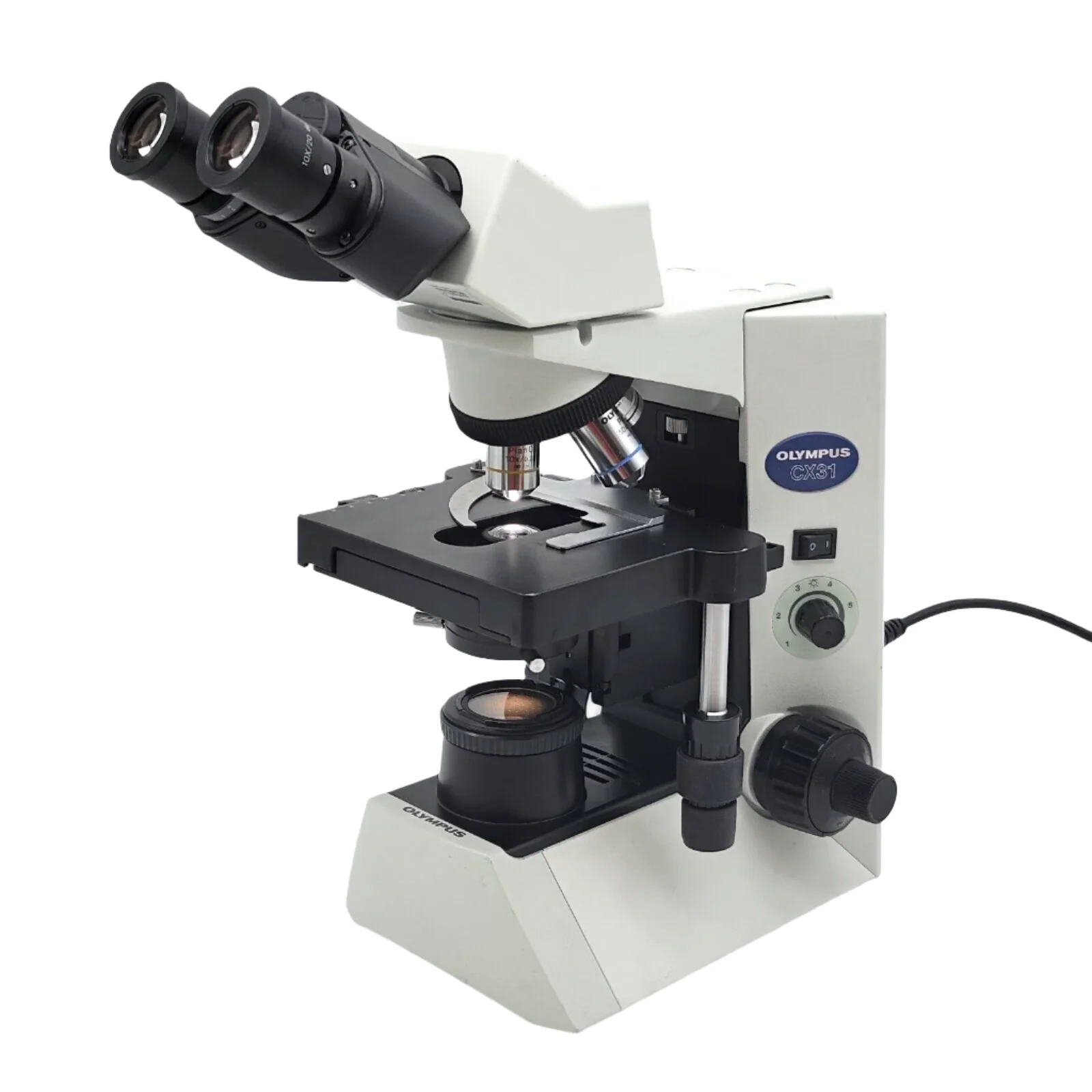

Olympus CX31 Binocular Biological Microscope

The Olympus CX31 Binocular Biological Microscope is a professional laboratory microscope designed for routine brightfield microscopy in clinical, medical, educational and research laboratories. The CX31 uses Olympus' UIS2 Universal Infinity-Corrected optical system, providing high-quality optical performance for routine specimen observation. It incorporates a binocular observation head, mechanical stage, Abbe condenser and built-in transmitted illumination. A commonly supplied CX31 configuration includes 10X eyepieces and Plan 4X, 10X, 40X and 100X oil-immersion objectives, giving total magnifications of approximately 40X, 100X, 400X and 1000X. Exact objectives supplied should be confirmed from the individual unit because configurations can vary. The microscope is suitable for examining prepared biological specimens and can be used in hospital laboratories, diagnostic laboratories, universities, schools, research institutions and other laboratory environments. Key Features Olympus CX31 biological microscope Binocular viewing head UIS2 infinity-corrected optical system Brightfield microscopy 30° inclined binocular tube 48–75 mm interpupillary adjustment Field number 20 Quadruple revolving nosepiece Mechanical stage Double slide holder Coarse and fine focusing controls Pre-focusing mechanism Abbe condenser Built-in aperture iris diaphragm Built-in daylight filter Built-in transmitted Köhler illumination 6V 30W halogen illumination Suitable for oil-immersion microscopy Robust benchtop laboratory construction Technical Specifications Specification Details Brand Olympus Model CX31 Microscope Type Biological Microscope Viewing Head Binocular Optical System UIS2 Universal Infinity-Corrected Observation Method Brightfield Eyepiece 10X FN20* Typical Objectives Plan 4X 10X 40X 100X Oil* Typical Total Magnification 40X–1000X* Nosepiece Fixed quadruple inward-facing Binocular Tube Inclination 30° Interpupillary Distance 48–75 mm Field Number 20 Stage Size 188 × 134 mm Stage Travel 76 mm X × 50 mm Y Specimen Holder Double slide holder Condenser Abbe condenser Condenser N.A. 1.25 with oil immersion Aperture Iris Built-in Illumination Transmitted Köhler illumination Light Source 6V 30W halogen Focus Mechanism Coarse and fine adjustment Full Focus Stroke 25 mm Power Supply 100–120V / 220–240V 50/60Hz Dimensions Approx. 233 × 411 × 367.5 mm Weight Approx. 8 kg
