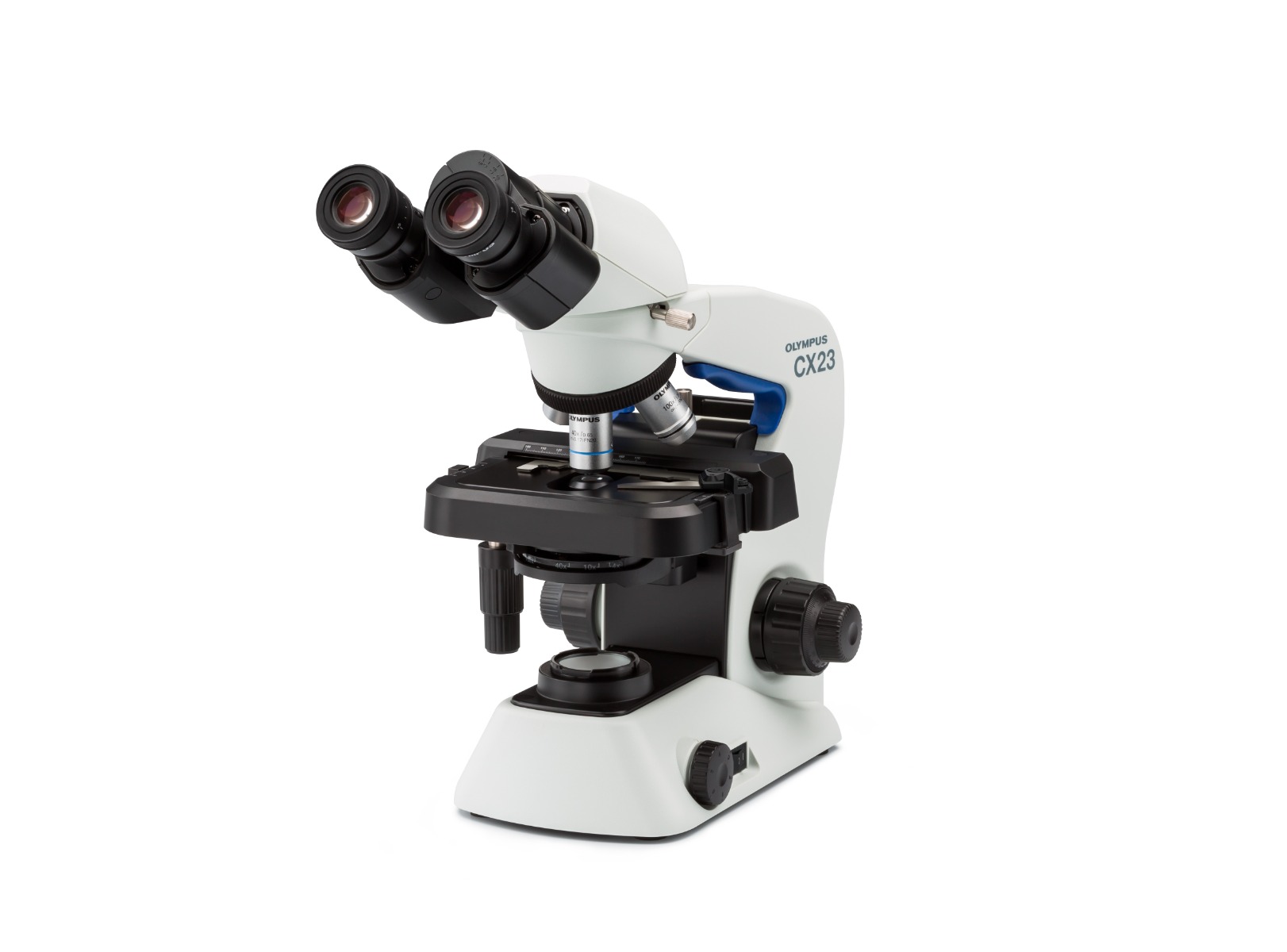

Olympus CX23 Biological Microscope

The Olympus CX23 Biological Microscope is a high-quality upright microscope engineered for reliable observation of biological specimens. It combines an infinity-corrected optical system, Plan Achromat objectives, mechanical stage and uniform LED illumination in a compact and ergonomic design. The microscope's standard 10× eyepieces provide a field number of 20, giving users a relatively wide field of view. Its Plan Achromat objectives are designed to provide flat images across the field, supporting clear observation of specimens. The CX23 uses built-in transmitted 0.5 W LED illumination. The manufacturer rates the LED for approximately 20,000 hours, while its consistent color temperature helps provide natural-looking specimen colors. A rackless mechanical stage, inward-facing revolving nosepiece, coaxial coarse/fine focusing controls and ergonomic carrying grips make the CX23 convenient for repeated laboratory or educational use. Protective mechanisms include a focus lock to help prevent objectives from contacting specimens and torque-release features to protect controls from excessive force. Key Features Infinity-corrected optical system Upright biological microscope 10× eyepieces with FN20 Plan Achromat objectives Standard 4× 10× and 40× objectives 100× oil immersion objective depending on configuration Fixed quadruple inward-facing revolving nosepiece Built-in 0.5 W LED illumination LED life approximately 20,000 hours Abbe condenser NA 1.25 Built-in aperture iris diaphragm Rackless mechanical stage X-Y stage travel of 76 × 30 mm Coaxial coarse and fine focusing 15 mm coarse focusing stroke 30° inclined observation tube Interpupillary adjustment of 48–75 mm Binocular and trinocular configurations available Lightweight design at approximately 5.9 kg for the standard binocular configuration Low power consumption Ergonomic non-slip carrying grips Technical Specifications Specification Details Brand Olympus Model CX23 Product Type Upright Biological Microscope Optical System Infinity Optical System Observation Method Brightfield Eyepieces 10× FN20 Optional Eyepiece 15× FN12 Observation Tube Binocular; trinocular configuration available Tube Inclination 30° Interpupillary Distance 48–75 mm Nosepiece Fixed Quadruple Inward-Facing Standard Objectives Plan Achromat 4× 10× 40× 100× Objective Oil immersion; standard or optional depending on CX23 configuration Optional Objective Plan Achromat 20× Condenser Abbe Condenser Condenser NA 1.25 with oil immersion Aperture Diaphragm Built-In Iris Stage Wire-Movement Mechanical Fixed Stage Stage Size 174 × 89 mm X-Y Travel 76 × 30 mm Focusing Coaxial Coarse/Fine Coarse Focus Stroke 15 mm Fine Focus Graduation 2.5 µm Illumination Built-In Transmitted LED LED Power 0.5 W nominal Power Supply AC 100–240 V 50/60 Hz Power Consumption <2 W Dimensions – Binocular 198 × 398 × 386 mm Dimensions – Trinocular 198 × 398 × 430 mm Weight – Binocular Approx. 5.9 kg
