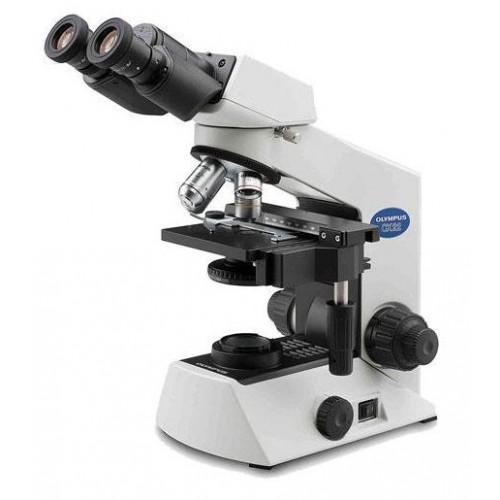

Olympus CX22 Binocular Biological Microscope

The Olympus CX22 Biological Microscope is a durable binocular microscope designed for routine brightfield microscopy in clinical laboratories, hospitals, universities, research facilities, and medical training institutions. It features an infinity-corrected optical system, plan achromatic objectives, a mechanical X-Y stage, Abbe condenser, coaxial coarse and fine focusing, and a comfortable 30° inclined binocular observation head. Depending on the configuration, the CX22 is available with either LED or halogen transmitted illumination. Key Features - Brand: Olympus - Model: CX22 - Binocular biological microscope - Infinity-corrected optical system - Brightfield microscopy - Plan achromatic anti-fungus objectives - 4×, 10×, 40× and 100× oil objectives - Total magnification up to 1000× - 10× wide-field eyepieces - Fixed quadruple revolving nosepiece - Mechanical X-Y stage - Coaxial coarse and fine focusing - Abbe condenser with iris diaphragm - Adjustable interpupillary distance - LED or halogen illumination depending on model - Durable and ergonomic laboratory design - Suitable for routine clinical microscopy Specification Details Product Name Olympus CX22 Biological Microscope Brand Olympus Model CX22 Microscope Type Upright Biological Microscope Optical System Infinity Optical System Observation Head Binocular Tube Inclination 30° Interpupillary Distance 48–75 mm Eyepiece 10×, FN20 Objective Positions 4 Standard Objectives 4× / 10× / 40× / 100× Oil Stage Size 120 × 132 mm Stage Travel 76 × 30 mm Coarse Focus Stroke 20 mm Fine Focus Graduation 2.5 µm Condenser Abbe NA 1.25 Illumination LED or 6 V / 20 W Halogen Power Supply AC 100–240 V, 50/60 Hz Weight Approx. 6 kg Installation Benchtop
