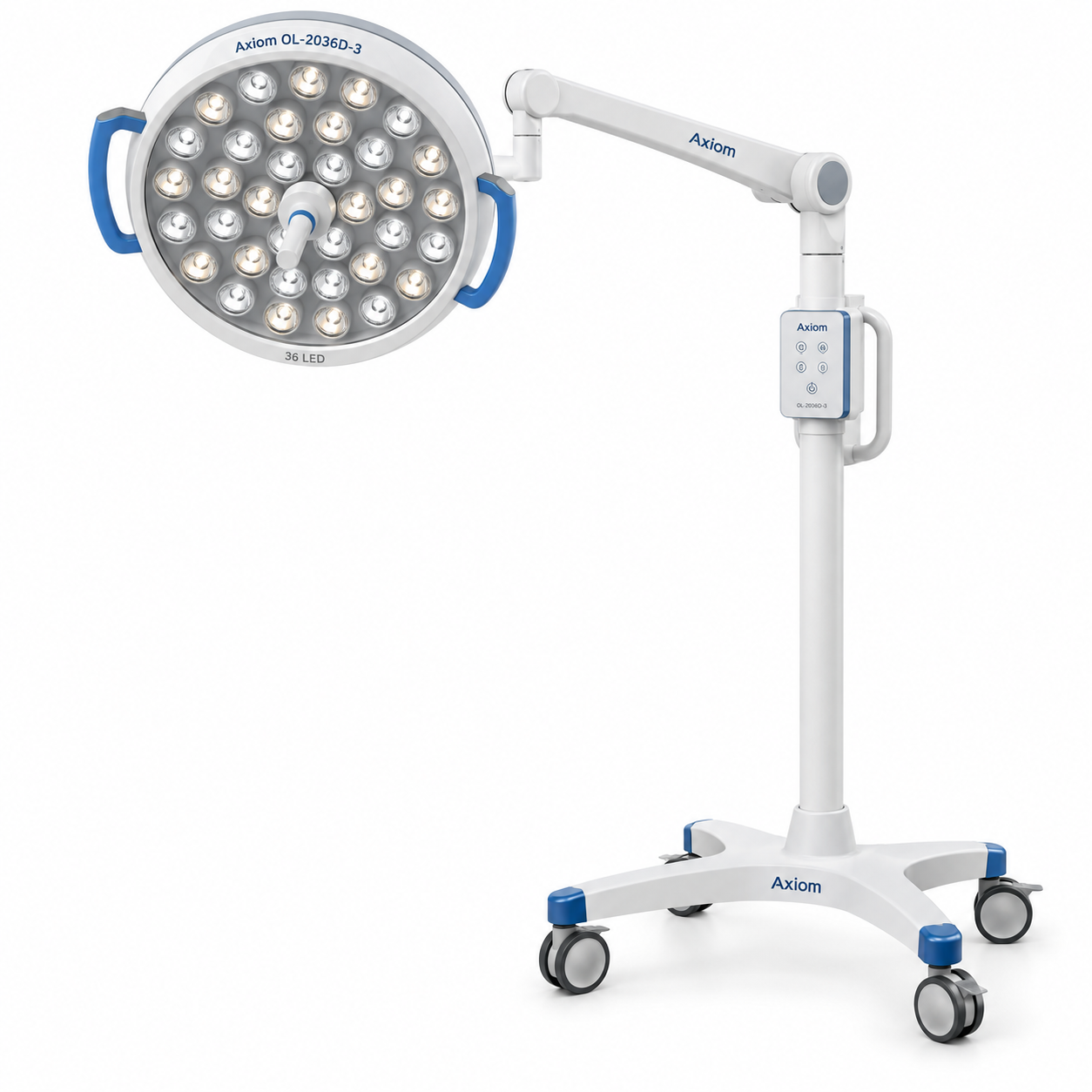

OL-2036D-3 LED Operating Lamp 36 LEDs

The OL-2036D-3 LED Operating Lamp is a mobile surgical and examination light designed to provide bright, focused illumination for procedure rooms, minor theatres, dental environments and other clinical applications. The lamp uses 36 high-intensity 3 W LEDs, giving a total LED lamp power of approximately 108 W. It delivers centre illumination of more than 65,000 lux at a 1-metre distance, with a color temperature of 4500 ±500 K. The OL-2036D-3 features a minimum spot diameter of ≤120 mm, a 500 mm base diameter, an illumination depth of 200 mm, and an estimated LED service life of 50,000 hours. Its wide AC input range of 90–240 V at 50/60 Hz makes it suitable for different hospital electrical systems. Key Features 36 high-intensity LED light sources Total LED power of 3 W × 36 = 108 W Centre illumination of >65,000 lux at 1 metre Color temperature of 4500 ±500 K Minimum spot diameter of ≤120 mm Illumination depth of 200 mm Long LED life of approximately 50,000 hours Wide voltage input from AC 90–240 V Compatible with both 50 Hz and 60 Hz Mobile floor-standing configuration Articulated lamp arm for flexible positioning Suitable for medical and dental procedures Lower-maintenance LED technology compared with halogen lamps Specification Details Model / Art. No. OL-2036D-3 Related Model OL-2036D-2 Product LED Operating Lamp Rated Voltage AC 90–240 V Frequency 50–60 Hz Fuse F2AL250V LED Power 3 W × 36 Total LED Power 108 W Number of LEDs 36 Color Temperature 4500 ±500 K Centre Illumination >65,000 Lux at 1 m Minimum Spot Diameter ≤120 mm Base Diameter 500 mm LED Life 50,000 Hours Illumination Depth 200 mm Mounting Type Mobile Floor Stand
