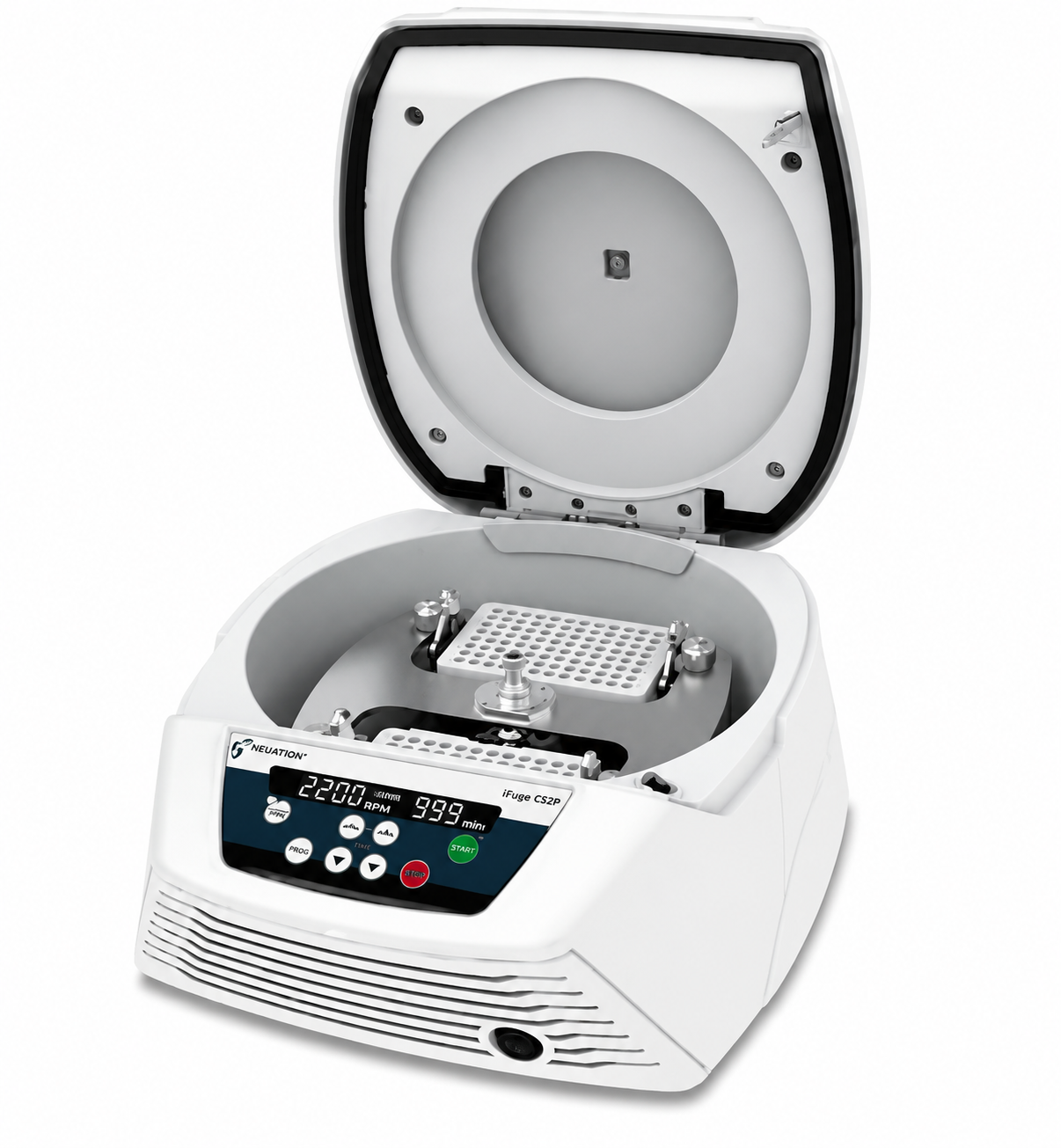

Neuation iFuge CS2P Microplate Centrifuge with Swing-Out Rotor, Microprocessor & Brushless Motor

The Neuation iFuge CS2P Microplate Centrifuge is a compact laboratory centrifuge designed specifically for centrifugation of 96-well and 384-well microplates. It uses a swing-out rotor capable of accommodating two microplates simultaneously, making it suitable for molecular biology, PCR, clinical research and other medium- to high-throughput laboratory applications. The iFuge CS2P combines a microprocessor-controlled operating system with a maintenance-free brushless DC motor. Speed can be precisely adjusted from 500 to 2,200 RPM, with a maximum relative centrifugal force of 560 × g and speed accuracy of approximately ±10 RPM. It also incorporates programmable speed and time settings, last-run memory, automatic imbalance detection, lid-lock protection and one-touch short-spin operation. Users can save up to 99 user-defined programs, making repetitive centrifugation procedures faster and more consistent. Key Features 2-microplate capacity – accommodates 96-well and 384-well plates. Compatible with PCR and deep-well plates. Swing-out rotor for horizontal positioning of plates during centrifugation. 500–2,200 RPM variable speed range. Maximum centrifugal force of approximately 560 × g. High speed accuracy of ±10 RPM. Microprocessor-controlled speed and time settings. Brushless DC motor for quiet, durable and maintenance-free operation. Digital display for convenient monitoring of operating parameters. 1–999 minute timer, plus continuous/infinite operating mode. Up to 99 user-defined programs can be stored for frequently used protocols. Last-run memory recalls previous operating parameters. Automatic imbalance detection helps protect the samples, rotor and centrifuge. Lid-lock safety system prevents unsafe operation. Automatic lid release after completion of a run. One-touch short-spin function for rapid sample spin-down. Easy switching between RPM and RCF display. Compact design with a low loading height for easier insertion and removal of microplates. Rotor includes positional and operating information such as capacity and RPM/RCF specifications. Technical Specifications Specification Details Brand Neuation Model iFuge CS2P / CS2P NXT Product Type Microplate Centrifuge Rotor Type Swing-Out Rotor Capacity 2 Microplates Plate Compatibility 96 & 384 Well Plate Types PCR / Deep-Well Plates Speed Range 500–2,200 RPM Maximum RCF 560 × g Speed Accuracy ±10 RPM Speed Increment 10 RPM Motor Brushless DC Motor Control Microprocessor Display Digital Timer 1–999 min + Infinite Mode Programs Up to 99 user-defined protocols Short Spin Yes RPM/RCF Switching Yes Imbalance Detection Yes Lid Lock Yes Automatic Lid Release Yes Dimensions (L × W × H) Approx. 381 × 480 × 185 mm Weight Approx. 8.3 kg without rotor Power 24 V DC; current/power specification varies by production documentation
