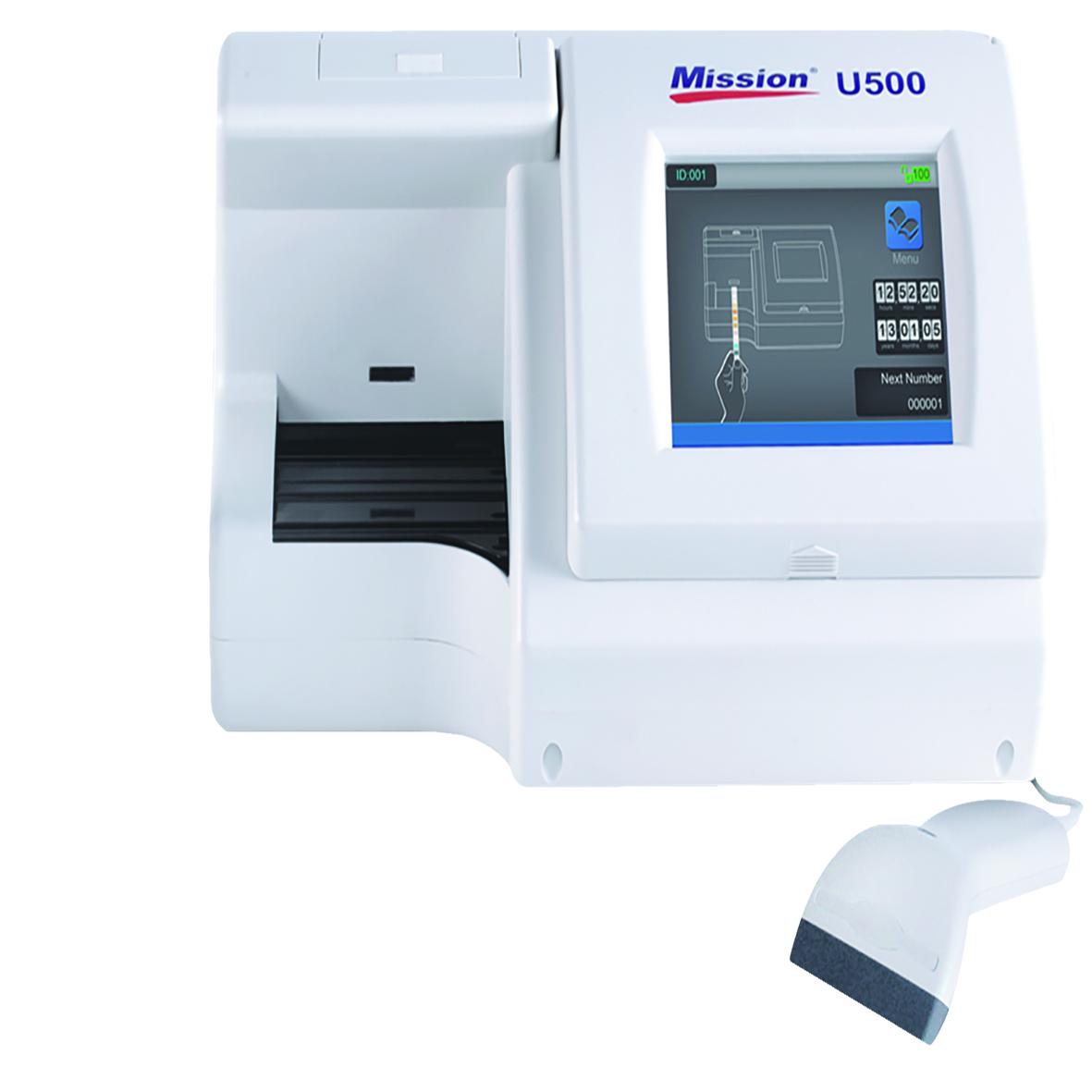

Mission® U500 Urine Analyzer with Barcode Reader – Model U211-111

The Mission® U500 Urine Analyzer U211-111 is a high-throughput semi-automatic urinalysis system designed for efficient urine chemistry testing in hospitals, diagnostic centres and medical laboratories. Using reflectance photometry with photosensitive diode detection, the U500 can process up to 500 tests per hour and read Mission urinalysis reagent strips with up to 14 parameters, depending on the strip configuration. It features automatic strip detection and alignment, automatic calibration and a large LCD colour touchscreen for easy operation. The U211-111 configuration includes a barcode reader, allowing patient or operator IDs to be entered by barcode. It also offers an integrated thermal printer, storage for the last 2,000 test records, USB/RS232C connectivity and LIS compatibility for laboratory workflow and data management. Key Features High throughput of up to 500 tests per hour Semi-automatic urine chemistry analyzer Reflectance photometry technology Integrated barcode reader Large LCD color touchscreen Automatic strip detection and alignment Automatic calibration Built-in thermal printer Supports Routine, STAT, and QC testing modes Stores up to 2,000 patient results Automatic abnormal result flagging User and QC lockout functions Easy-to-clean strip platform and waste tray Compatible with Laboratory Information Systems (LIS) via HL7 interface Supports external printer and computer connectivity via USB and RS232C ports Typical Specifications Manufacturer ACON Laboratories, Inc. Model Mission® U500 Urine Analyzer Analyzer Type Semi-Automatic Methodology Reflectance Photometry Detection Photosensitive Diode Throughput Up to 500 tests/hour (approximately 7 seconds per test) Strip Incubation Time 1 minute Wavelength 525 nm and 635 nm Display LCD Color Touchscreen Memory 2,000 patient records Test Modes Routine, STAT, QC Barcode Reader Included Connectivity USB, RS232C, External Printer LIS Interface HL7 Compatible Power Supply 100–240 V AC, 50/60 Hz Dimensions 36.6 × 28.3 × 19.5 cm Weight Approximately 4.0 kg Supported Test Parameters The analyzer is compatible with Mission® Urinalysis Reagent Strips supporting up to 14 parameters, depending on the strip configuration: Leukocytes (LEU) Nitrite (NIT) Urobilinogen (URO) Protein (PRO) pH Blood (BLD) Specific Gravity (SG) Ketones (KET) Bilirubin (BIL) Glucose (GLU) Ascorbic Acid (Vitamin C) Microalbumin Creatinine Calcium
