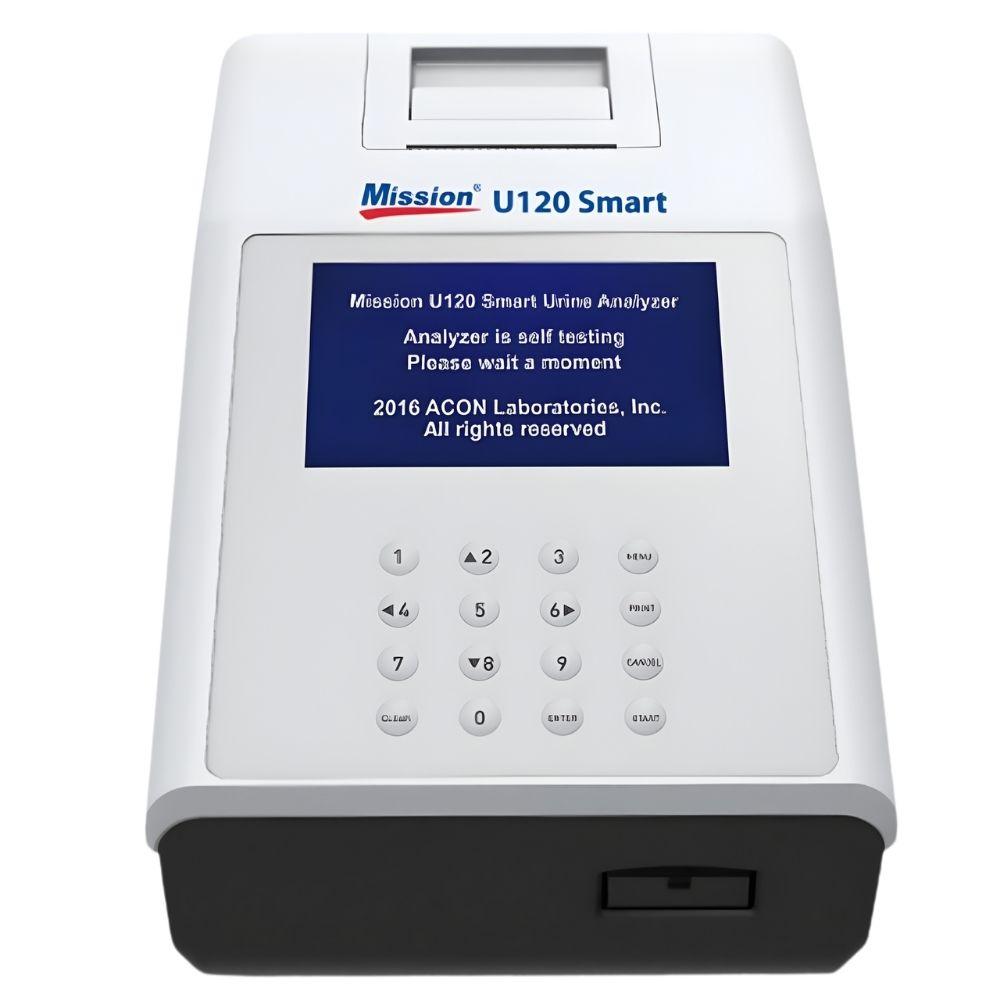

Mission® U120 Smart Urine Analyzer with Barcode Reader – Model U117-111

The Mission® U120 Smart Urine Analyzer U117-111 is a compact, semi-automatic urinalysis system designed for fast and convenient urine chemistry testing in hospitals, clinics and diagnostic laboratories. The analyzer uses reflectance photometry to read Mission urine reagent strips and provides standardized interpretation of urine chemistry results, reducing the subjectivity associated with manually reading reagent-strip colour changes. The U120 Smart offers a throughput of up to 120 tests per hour, a 7-inch colour touchscreen, automatic calibration, built-in thermal printer and storage for up to 2,000 test results. The U117-111 package includes a barcode reader, supporting efficient patient identification and laboratory workflow. Its compact footprint makes it particularly suitable for laboratories that require automated urine-strip reading without the size or throughput requirements of a larger analyzer such as the Mission U500. Key Features Semi-automatic urine chemistry analyzer Reflectance photometry technology Integrated barcode reader for patient ID and reagent strip identification Throughput of 120 tests/hour (continuous mode) or 60 tests/hour (single-test mode) Automatic strip calibration Built-in thermal printer Large color LCD display Automatic result interpretation Stores up to 2,000 patient results Supports Routine, STAT, and QC testing modes User-friendly interface with multilingual support USB and RS-232 connectivity for Laboratory Information System (LIS) integration Optional external printer support Typical Specifications Manufacturer ACON Laboratories, Inc. Model Mission® U120 Smart Analyzer Type Semi-Automatic Urine Analyzer Measurement Technology Reflectance Photometry Detection System Photosensitive Diode Throughput 60 or 120 tests/hour Strip Incubation Time 1 minute Wavelengths 525 nm and 635 nm Memory 2,000 patient results Display Large LCD screen Built-in Printer Thermal printer Barcode Reader Included Connectivity USB, RS-232, External Printer Power Supply 100–240 V AC, 50/60 Hz Weight Approximately 1.9–2.6 kg (configuration dependent) Supported Urine Parameters The analyzer supports 2- to 14-parameter Mission® urine reagent strips, depending on the strip type. Common parameters include: Leukocytes (LEU) Nitrite (NIT) Urobilinogen (URO) Protein (PRO) pH Blood (BLD) Specific Gravity (SG) Ketones (KET) Bilirubin (BIL) Glucose (GLU) Ascorbic Acid (Vitamin C) Microalbumin (strip dependent) Creatinine (strip dependent) Calcium (strip dependent)
