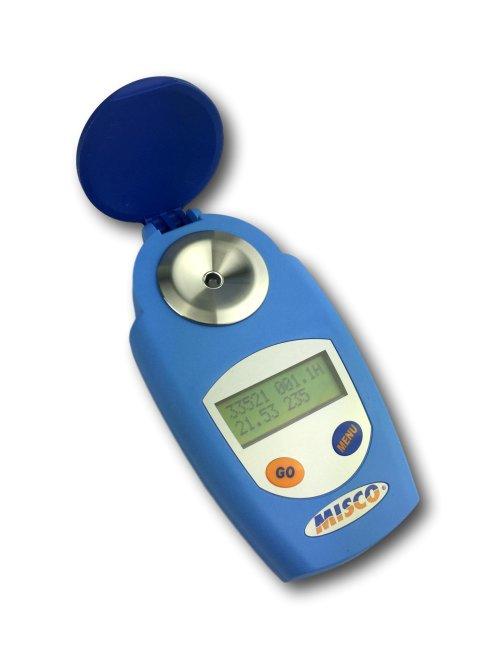

MISCO Palm Abbe PA202X Digital Handheld Refractometer with Automatic Temperature Compensation

The MISCO Palm Abbe PA202X Digital Handheld Refractometer is a professional portable instrument designed for fast and accurate determination of fluid concentration. The PA202X platform can be supplied with up to two custom measurement scales, allowing configurations to be tailored to specific fluids and applications. Unlike conventional optical refractometers that require the user to interpret a scale manually, the Palm Abbe provides measurements directly on a large, backlit digital LCD display. Only a drop or two of sample is placed into the stainless-steel sample well before measurement. The instrument incorporates automatic temperature correction/compensation, with the applicable compensation behavior depending on the programmed measurement scale. Typical PA202X configurations support sample temperatures from 0–50°C (32–122°F). It also uses a sapphire optical element, 1,024-element detector array and precision 589 nm LED light source, providing a durable optical measurement platform for laboratory, industrial and field applications. Key Features Digital handheld refractometer Microprocessor-controlled measurement Sapphire optical element 1,024 detector elements Precision 589 nm LED light source Stainless-steel sample well Requires only a small sample volume Large 2-line, 24-character backlit LCD Automatic temperature compensation Typical operating/measurement temperature range of 0–50°C Automatic water calibration Two user calibration points Simple two-button operation Selectable measurement scales depending on configuration IP65 water-resistant construction Text-based error messages Multi-language display support Powered by 2 × AAA batteries Approximately 5,000 readings per battery set CE approved Compact handheld construction. Technical Specifications Specification Details Brand MISCO Series Palm Abbe Model PA202X Product Type Digital Handheld Refractometer Optic Material Sapphire Detector 1,024 elements Light Source Precision LED @ 589 nm Sample Well Stainless Steel Display Backlit LCD Display Format 2 lines, 24 characters Temperature Compensation Automatic Typical Temperature Range 0–50°C (32–122°F) Calibration Automatic to water User Calibration Points 2 Water Resistance IP65 Power Supply 2 × AAA batteries Battery Life Approx. 5,000 measurements Dimensions 145 × 75 × 37 mm Weight Approx. 250 g Body Material Polymer Certification CE Country of Origin USA
