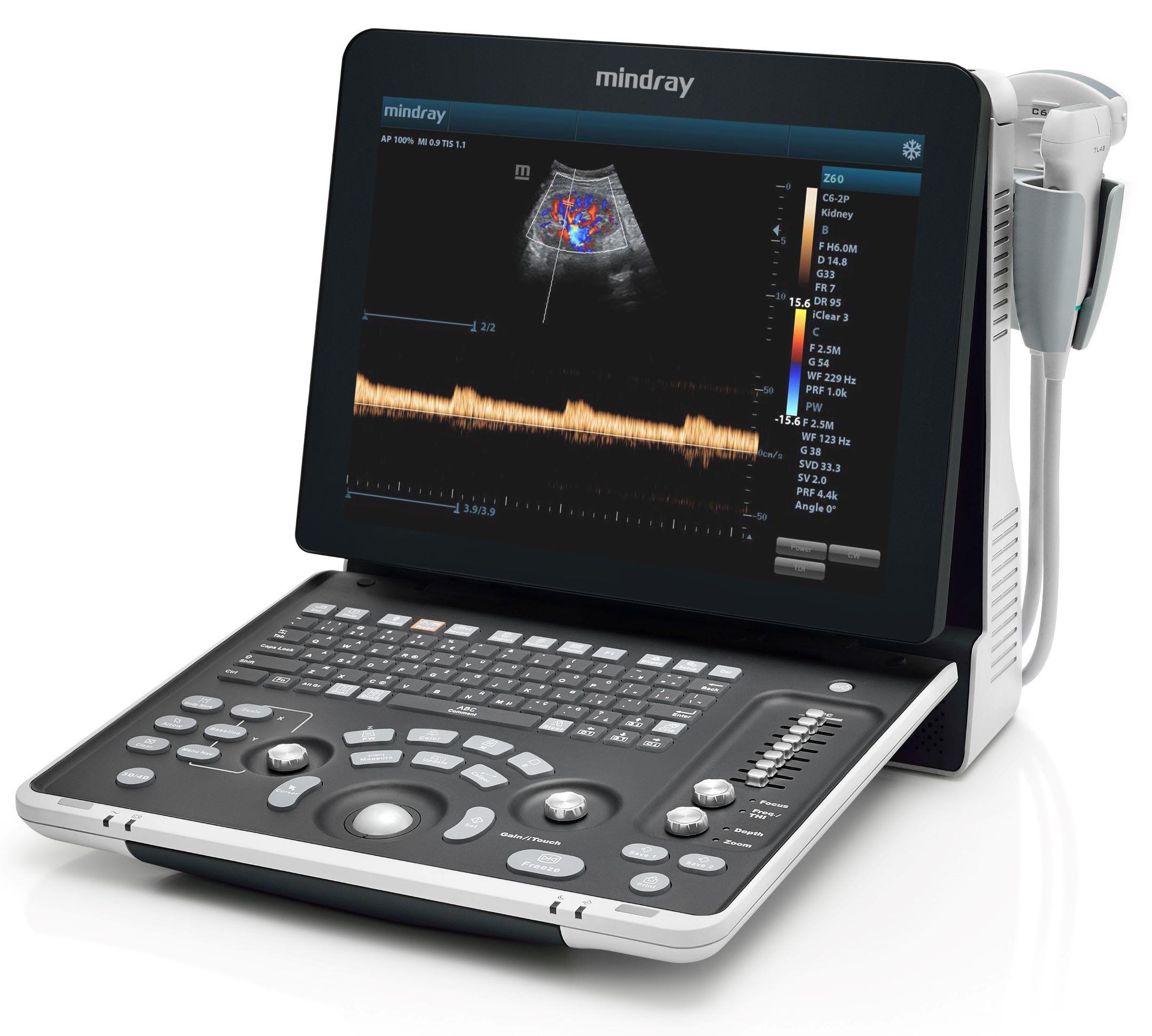

Mindray Z60 Color Doppler Ultrasound with 2 Probes

The Mindray Z60 Color Doppler Ultrasound with 2 Probes is a portable diagnostic ultrasound system offering comprehensive imaging capabilities for cardiac and general diagnostic applications. This package includes a cardiac phased-array probe plus one additional probe of the buyer's choice: Convex, Linear or Transvaginal (TV), subject to availability. This configuration makes the Z60 particularly versatile for facilities that need echocardiography together with abdominal, obstetric, gynecological, vascular or small-parts imaging. The Z60 supports B Mode, M Mode, Color Doppler, Power Doppler and Pulsed-Wave Doppler and incorporates Mindray technologies including iBeam™ Spatial Compounding, iClear™ Speckle Suppression and Phase Shift Tissue Harmonic Imaging. Mindray lists applications including cardiac, abdominal, OB/GYN, vascular, urology, small parts, orthopedics, musculoskeletal and nerve imaging. Its compact design, rechargeable battery and 15-inch display make it suitable for hospitals, diagnostic centres, specialist clinics and mobile diagnostic services. 2-Probe Configuration Probe 1 – Cardiac Probe: Phased-array transducer such as the 2P2P, intended for adult and pediatric cardiac imaging as well as abdominal and pediatric applications. Probe 2 – Select One: Option Probe Type Typical Applications Cardiac + Convex Phased Array + Convex Echocardiography abdominal OB fetal pediatric Cardiac + Linear Phased Array + Linear Echocardiography vascular thyroid breast small parts MSK Cardiac + TV Phased Array + Endocavity Echocardiography gynecology transvaginal fetal urology Key Features Portable Color Doppler ultrasound system Cardiac imaging capability Supplied with 2 probes Cardiac probe included Choice of Convex Linear or TV probe as second probe B Mode imaging M Mode imaging Color Doppler Power Doppler Pulsed-Wave Doppler Phase Shift Tissue Harmonic Imaging iBeam™ Spatial Compounding Imaging iClear™ Speckle Suppression Imaging iTouch™ automatic image optimization iZoom™ full-screen viewing iStation™ patient information management DICOM 3.0 support 3D/4D options depending on configuration Portable integrated design Rechargeable battery Technical Specifications Specification Details Brand Mindray Model Z60 System Type Portable Color Doppler Ultrasound Display 15-inch Monitor Adjustment Up to 60° tilt Imaging Modes B Color PW Power M Free Xros M Cardiac Imaging Supported Cardiac Probe Phased Array Example Cardiac Probe 2P2P Second Probe Convex Linear or Endocavity/TV Tissue Harmonic Imaging Phase Shift THI Spatial Compounding iBeam™ Speckle Reduction iClear™ Image Optimization iTouch™ Patient Management iStation™ Storage 500GB hard drive Probe Connections Maximum 3 universal transducer connectors Battery Rechargeable Battery Scanning Time Approximately 1.5 hours DICOM DICOM 3.0 3D/4D Optional/configuration dependent
