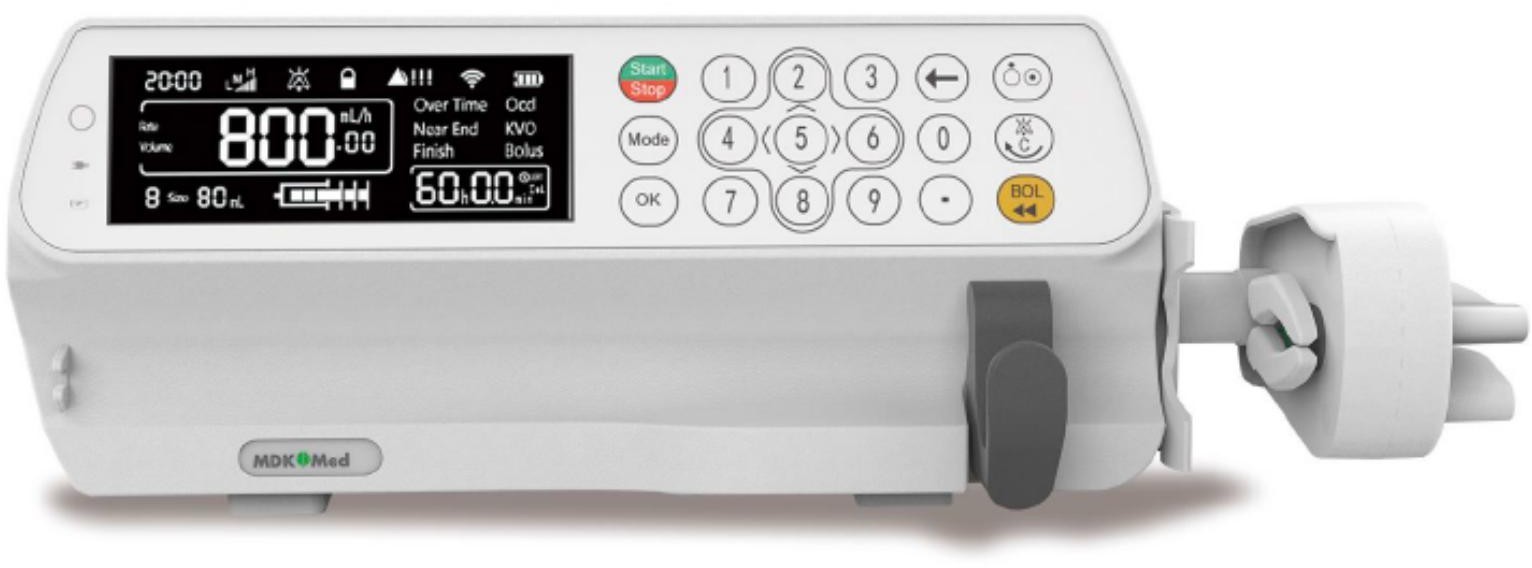

MDK Med MS57 Single-Channel Syringe Pump

The MDK Med MS57 Syringe Pump is a compact single-channel syringe infusion pump designed for accurate and controlled administration of medications and fluids. It supports syringe sizes from 2 mL to 60 mL and provides a documented flow accuracy of ±2%, making it suitable for hospitals, ICUs, operating theatres, emergency departments, wards and other clinical environments requiring precise infusion therapy. The MS57 features straightforward keypad programming, an open syringe-holder design for easy observation of the remaining medication, multiple infusion modes, KVO functionality and configurable safety alarms. Depending on syringe size, the programmable flow rate extends up to 1,800 mL/h. Key Features Compatible with 2 mL, 5 mL, 10 mL, 20 mL, 30 mL, 50 mL, and 60 mL syringes Automatic syringe calibration High infusion accuracy (±2%) Keyboard-based programming for simple operation Open syringe holder design for easy observation of remaining medication Multiple infusion modes KVO (Keep Vein Open) function Bolus/Purge function Adjustable occlusion pressure levels Audible and visual alarm system Rechargeable battery for continuous operation during power interruptions Optional Wi-Fi connectivity for integration with hospital information systems (HIS) and nurse stations. Technical Specifications Display LCD Display Compatible Syringe Sizes 2, 5, 10, 20, 30, 50 & 60 mL Flow Accuracy ±2% Volume Range 0.1–9999.9 mL (0.1 mL increments) Flow Rate (2 mL Syringe) 0.1–100 mL/h Flow Rate (5 mL Syringe) 0.1–150 mL/h Flow Rate (10 mL Syringe) 0.1–400 mL/h Flow Rate (20 mL Syringe) 0.1–600 mL/h Flow Rate (30 mL Syringe) 0.1–1000 mL/h Flow Rate (50/60 mL Syringe) 0.1–1800 mL/h Flow Rate Resolution 0.01 mL/h Time Setting 00:00–99:59 hours Occlusion Pressure Levels 40 ±20 kPa, 80 ±20 kPa, 120 ±20 kPa Battery Rechargeable Internal Battery Power Supply AC 100–240 V, 50/60 Hz Dimensions 297 × 147 × 106 mm Weight Approximately 1.4 kg Infusion Modes The MS57 supports multiple infusion modes, including: Rate + Volume (R + V) Volume + Time (V + T) Rate + Time (R + T) Rate Only (R) These modes allow clinicians to tailor infusion therapy according to medication protocols and patient requirements. KVO (Keep Vein Open) Function After infusion completion, the pump automatically maintains venous access: Flow rate ≥10 mL/h: KVO = 3 mL/h Flow rate 1–10 mL/h: KVO = 1 mL/h Flow rate <1 mL/h: KVO equals the programmed infusion rate Safety Features The MS57 incorporates advanced safety mechanisms, including: Automatic syringe recognition Adjustable occlusion pressure monitoring Anti-free-flow protection KVO function Rechargeable battery backup Continuous self-diagnostics Automatic infusion completion detection Optional wireless data transmission for remote monitoring. Alarm System The pump provides audible and visual alarms for: Occlusion Near end of infusion End of infusion No syringe detected Syringe holder not secured Low battery Battery exhausted AC/DC power disconnected System malfunction Incorrect syringe installation. Standard Components MS57 Syringe Pump Pole Clamp AC Power Adapter Rechargeable Battery User Manual Optional Accessories Mobile Trolley IV Pole Mount Nurse Call Interface Wi-Fi Communication Module Central Infusion Monitoring Software Carrying Handle External Power Adapter
