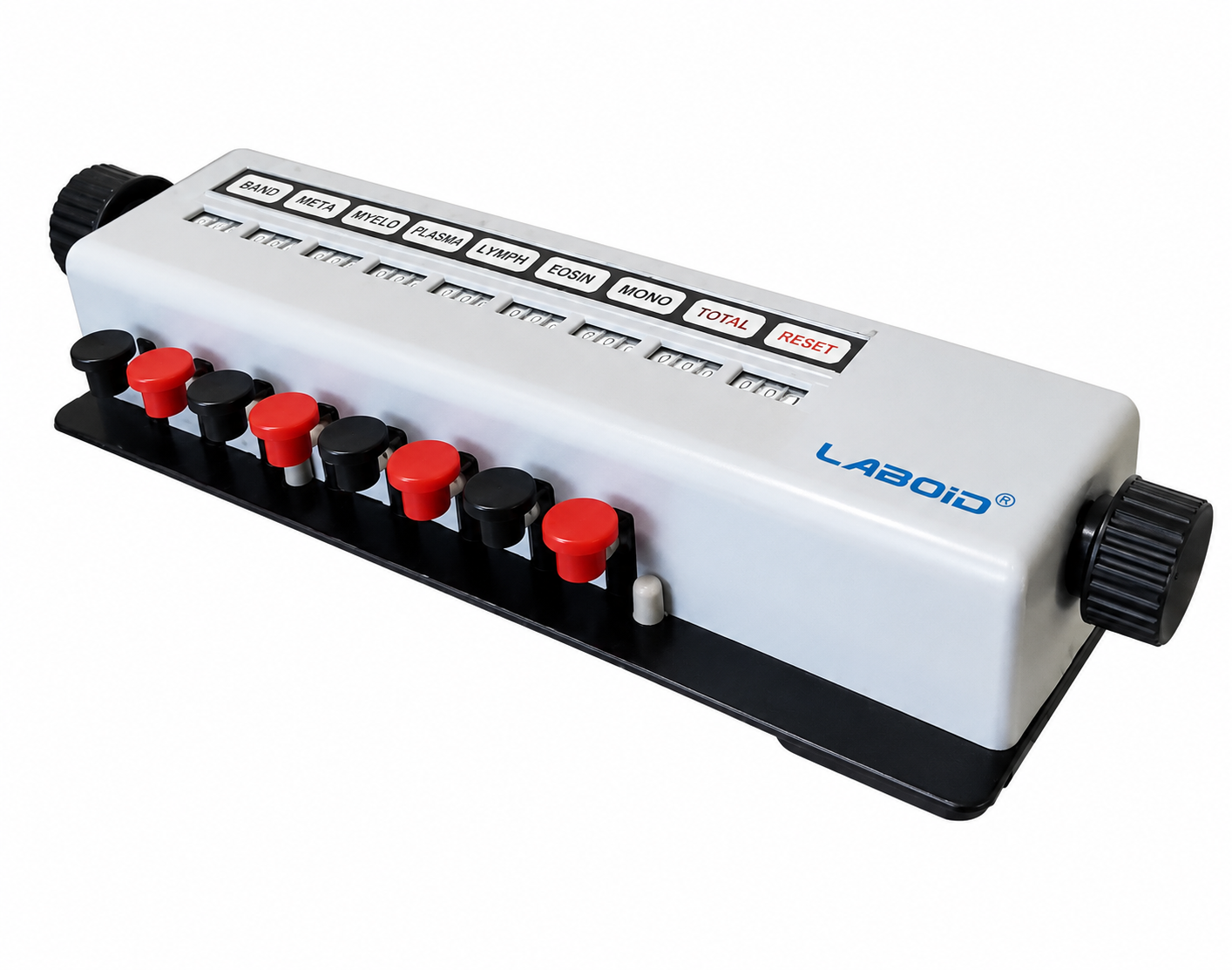

LABOID LDC-61 Digital Differential Blood Cell Counter – 12 Cell Types, 500-Test Memory

The LABOID LDC-61 Digital Differential Blood Cell Counter is a compact laboratory instrument designed to assist laboratory professionals in performing manual differential white blood cell counting accurately and efficiently. It enables the operator to classify and record different cell types while examining a stained blood smear under a microscope. The system can count 12 types of cell particles, divided into normal and abnormal categories. Normal categories include Poly, Lympho, Mono, Eos and Bas, while abnormal categories include Blast, Myelo, Metamye, Band and Plasma, with additional user-defined categories. The LDC-61 incorporates a built-in percentage calculator, memory for up to 500 test results, stopwatch, countdown timer and a large 20 × 4-character backlit LCD. It accepts up to 999 counts and provides a long audible signal at every 100 counts. Its compact ABS housing, seven-key operating system and RS232 interface make it suitable for haematology, pathology, hospital and diagnostic laboratories requiring a dedicated differential cell-counting device. Key Features Counts up to 12 types of cell particles, divided into normal and abnormal categories. Normal categories include Poly/Neutrophils, Lymphocytes, Monocytes, Eosinophils and Basophils, plus a user-defined category. Abnormal categories include Blast, Myelo, Metamyelo, Band and Plasma cells, plus a user-defined category. Built-in percentage calculator for normal and abnormal cell counts. Large 20 × 4 character backlit LCD display. Maximum total entry of 999 counts. Audible long-beep indication at every 100 counts. 500-test result memory for storing previous counting results. Individual or complete deletion of stored results. Built-in stopwatch and countdown timer. Timer can be set up to 99 hours, 59 minutes and 59 seconds. Seven-key operation: one mode-selection key and six multifunction counting keys. Adjustable keystroke timing to support faster counting. RS-232 output for connection to a computer or compatible external thermal recorder. Push-button ON/OFF control. Lightweight ABS plastic enclosure designed to provide electrical insulation. Compact benchtop design for hematology laboratories. Technical Specifications Specification Details Brand LABOID Product Digital Differential Blood Cell Counter Model referenced LDC-61 Cell Categories Up to 12 Maximum Count 999 Result Memory 500 tests Display 20 × 4 Character Backlit LCD Counting Controls 6 counting/function keys + Mode key Percentage Calculation Yes Audible Alert Every 100 counts Stopwatch Built-in Countdown Timer Built-in Maximum Timer 99 h 59 min 59 sec Computer Interface RS-232 External Recorder Support Yes Power Supply 12 V DC external supply Dimensions 18.5 × 13 × 5 cm Weight <0.5 kg Housing ABS Plastic
