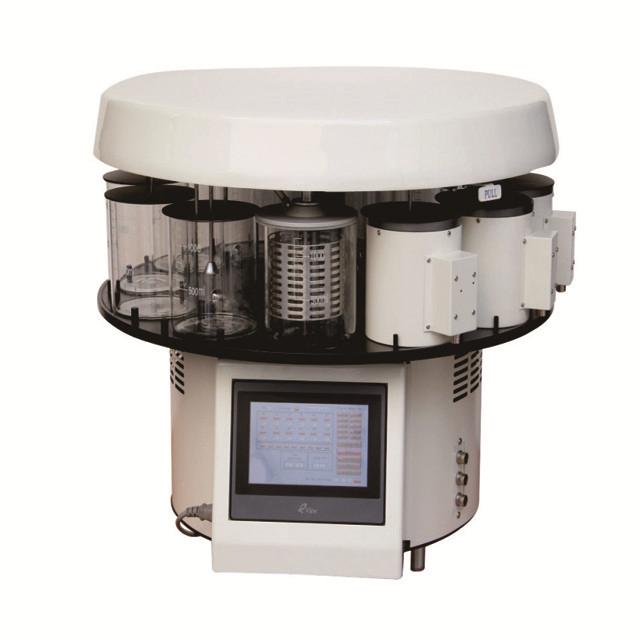

KD-TP-6A Automatic Carousel Tissue Processor

The KD-TP-6A Automatic Tissue Processor is a carousel-type histopathology instrument designed to automate tissue dehydration, clearing and paraffin infiltration prior to embedding and sectioning. It uses 12 processing stations, comprising 9 reagent cups and 3 heated paraffin cups, with programmable processing times and automatic basket movement. The system supports up to 10 processing programs, a maximum delayed start of one month, and basket agitation of at least 10 times per hour to improve tissue contact with reagents and paraffin. Key Features Automatic carousel tissue processing 12 processing steps 9 reagent cups 3 paraffin cups Programmable processing cycles Up to 10 stored programs Processing duration of 0–10 hours per station Minimum time setting of 1 minute Delayed start up to 1 month Basket agitation ≥10 times/hour Approximately 30-second agitation cycle High-capacity reagent and paraffin options Touchscreen/PLC control on common configurations Automatic tissue-basket positioning Designed for histology and pathology laboratories Reliable continuous tissue-processing workflow Specification Details Product Type Automatic Tissue Processor Model / Art. No. KD-TP-6A Processing Steps 12 Reagent Cups 9 Standard Reagent Cup Capacity 1.2 L Large Reagent Cup Capacity 2.3 L Paraffin Cups 3 Standard Paraffin Cup Capacity 1.0 L Large Paraffin Cup Capacity 1.8 L Minimum Time Interval 1 min Basket Stirring Frequency ≥10 times/hour Stirring Duration 30 sec each time Basket Size Ø95 × 80 mm Program Capacity 10 programs Duration per Cup 0–10 hours Maximum Delayed Start 1 month Power 500 W for 1.2 L configuration / 1000 W for 2.3 L configuration Working Voltage AC 220 V ±10% 50 Hz 110 V Operation Requires converter Net Weight 60 kg Dimensions Ø670 × 540 mm Maximum Height Approx. 680 mm Installation Benchtop / Floor-Supported Laboratory Unit
