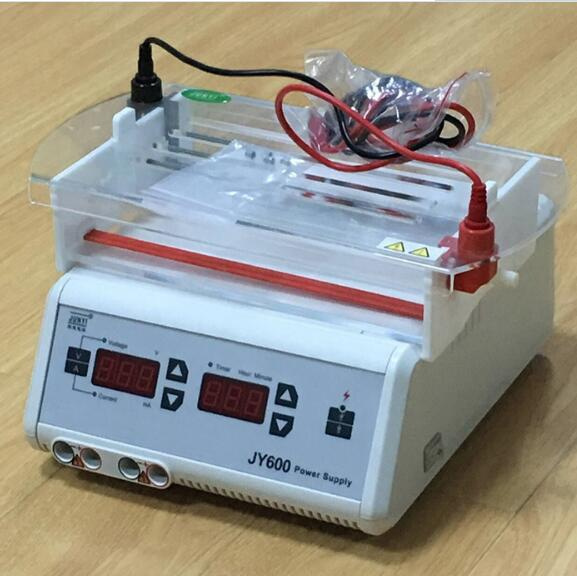

JY600-SP7A Digital Electrophoresis Machine with Gel Tank

The JY600-SP7A Digital Electrophoresis Machine with Gel Tank is a laboratory electrophoresis system designed for controlled separation of biological molecules using either constant-voltage or constant-current operating modes. The system provides an adjustable output range of 5–600 V and 1–200 mA, with a maximum output power of 120 W. Its LED display allows laboratory personnel to monitor operating parameters clearly, while the included electrophoresis tank supports gel dimensions of 6.6 × 25 cm and 8.2 × 25 cm. The system requires approximately 660 mL of buffer. Key Features Digital electrophoresis power supply with gel tank Wide 5–600 V voltage output range Adjustable current from 1–200 mA Maximum output power of 120 W Constant-voltage operating mode Constant-current operating mode Digital LED display Voltage resolution of 1 V Current resolution of 1 mA Supports two gel sizes Approximately 660 mL buffer requirement Compact laboratory benchtop design Suitable for routine molecular biology and clinical laboratory electrophoresis Specification Details Product Type Digital Electrophoresis Machine with Gel Tank Model / Art. No. JY600-SP7A Voltage Output Range 5–600 V Current Output Range 1–200 mA Maximum Power 120 W Output Modes Constant Voltage / Constant Current Voltage Resolution 1 V Current Resolution 1 mA Display LED Gel Size 1 6.6 × 25 cm Gel Size 2 8.2 × 25 cm Buffer Requirement 660 mL External Dimensions 20 × 26.5 × 10 cm Electrophoresis Tank / Cell Included Installation Benchtop
