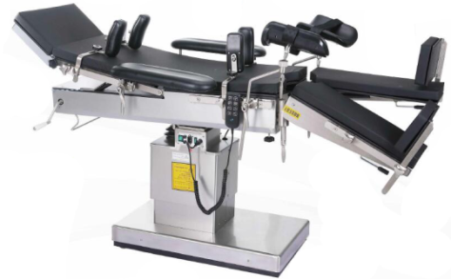

JHDS-99A Electric Operating Table

The Axiom UK JHDS-99A Electric Operating Table is a multifunctional surgical table designed to support a wide range of procedures in hospital operating theatres. The JHDS-99A platform provides electrically powered height adjustment, Trendelenburg/Reverse Trendelenburg, lateral tilt and longitudinal tabletop movement, enabling surgical teams to position patients according to procedural requirements. A major advantage is its 400 mm longitudinal tabletop movement, which provides space for C-arm fluoroscopy and imaging without routinely repositioning the patient. The tabletop uses radiolucent/high-strength material suitable for X-ray imaging. The head and leg sections are removable, while the leg sections can be lowered and opened to facilitate positioning for different procedures. The platform can also accommodate accessories such as an orthopedic traction frame or head frame, extending its usefulness to orthopedic and neurosurgical applications. The JHDS-99A operates on 24 V DC and incorporates an emergency backup power supply that automatically charges and can support operation if mains power is interrupted. Its external covers are manufactured from SUS304 stainless steel. Key Features Fully electric surgical operating table C-arm compatible design Approximately 400 mm longitudinal tabletop movement Electric height adjustment Electric Trendelenburg positioning Electric Reverse Trendelenburg positioning Electric lateral tilt Motorized forward and backward tabletop movement Radiolucent tabletop suitable for X-ray imaging Removable head section Removable leg sections Leg sections can be lowered and opened Adjustable kidney bridge Gas-spring-assisted back and leg sections SUS304 stainless-steel external covers 24 V DC operating system Built-in emergency backup power supply Compatible with optional orthopedic traction frame Suitable for multidisciplinary operating-theatre applications
