Hysteroscopy Accessories & Instruments for Diagnostic and Operative Hysteroscopy

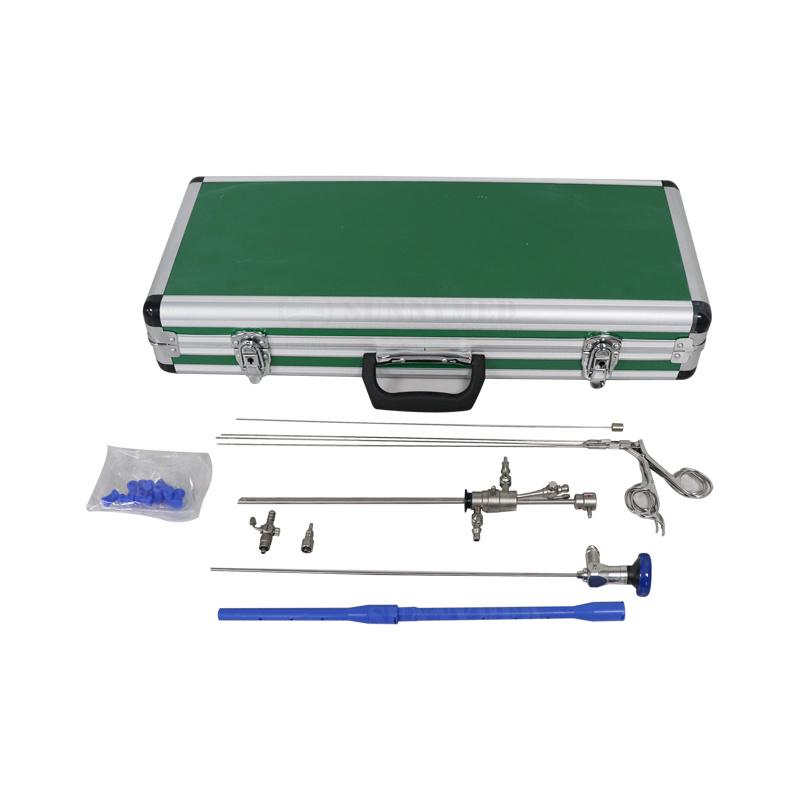

The ZG-3A Hysteroscope is a complete rigid hysteroscopy system designed for diagnostic and operative hysteroscopy. It provides excellent visualization of the uterine cavity while allowing the use of 5Fr operative instruments through a continuous-flow sheath. The system is suitable for hospitals, gynecology clinics, ambulatory surgery centers, and reproductive medicine units. It features German optical glass, a rod-lens optical system, a 30° direction of view, and a continuous irrigation channel for a clear surgical field. Standard Configuration Component Specification Hysteroscope 30°, 3 mm × 302 mm Outer Sheath & Obturator 16 Fr × 210 mm Working Element (Inner Sheath) 13 Fr × 220 mm Rigid Biopsy Forceps 5 Fr × 340 mm Rigid Forceps 5 Fr × 340 mm Rigid Scissors 5 Fr × 340 mm Inflow Valve Included Outflow Valve Included Steel Guide Wire Ø0.8 × 300 mm Flexible Brush Included Sealed Cap Included Light Cable Ø4 mm × 2 m These dimensions correspond closely to the standard ZG-3A operative hysteroscope configuration supplied by several manufacturers. Component Details 1. Hysteroscope Specification Details Model ZG-3A Viewing Direction 30° Diameter 3 mm Working Length 302 mm Optical System Rod Lens Material Medical-grade Stainless Steel Lens Cover Sapphire Sterilization Fully Autoclavable Features German optical glass and fiber optics. High-definition, wide-angle field of view. Sapphire distal lens resists scratching. Direction indicator for easy orientation. Excellent light transmission. Fully autoclavable. 2. Outer Sheath & Obturator Specification Details Size 16 Fr × 210 mm Material Stainless Steel Irrigation Continuous inflow and outflow Features Smooth insertion. Continuous irrigation channel. Excellent uterine cavity visualization. Minimizes cervical dilation requirements. 3. Working Element Specification Details Size 13 Fr × 220 mm Function Holds and guides 5 Fr operative instruments Material Stainless Steel Features Easy instrument exchange. Precise instrument control. Ergonomic design. 4. Rigid Biopsy Forceps Specification Details Size 5 Fr × 340 mm Type Cup biopsy forceps Material Stainless Steel Applications Endometrial biopsy Tissue sampling Histopathology specimens 5. Rigid Grasping Forceps Specification Details Size 5 Fr × 340 mm Type Grasping Forceps Material Stainless Steel Applications Foreign body removal Polyp retrieval Tissue manipulation 6. Rigid Scissors Specification Details Size 5 Fr × 340 mm Type Straight Scissors Material Stainless Steel Applications Adhesiolysis Septum incision Tissue cutting Minor hysteroscopic surgery 7. Inflow Valve Features Controlled irrigation inflow. Maintains clear uterine visualization. Leak-resistant connection. 8. Outflow Valve Features Continuous fluid drainage. Maintains stable intrauterine pressure. Improves visibility throughout the procedure. 9. Steel Guide Wire Specification Details Size Ø0.8 × 300 mm Function Instrument guidance. Cleaning assistance. Channel maintenance. 10. Flexible Brush Features Cleans working channels. Removes biological debris. Extends instrument lifespan. 11. Sealed Cap Features Maintains fluid seal. Prevents leakage. Supports stable irrigation pressure. 12. Light Cable Specification Details Diameter 4 mm Length 2 m
